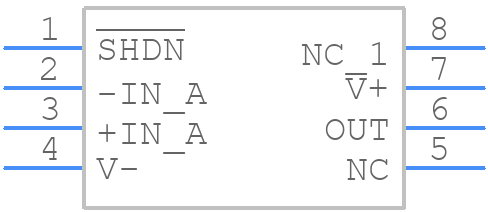

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for LT6200CS8#PBF by Analog Devices Inc
Results Overview of LT6200CS8#PBF by Analog Devices Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Consumer Electronics
Internet of Things (IoT)
Audio and Video Systems
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
LT6200CS8#PBF Information
LT6200CS8#PBF by Analog Devices Inc is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for LT6200CS8#PBF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
51AK8987
|
Newark | Op-Amp, 165Mhz, 0 To 70Deg C, Soic-8, No. Of Channels:1Channels, Gain Bandwidth Product:165Mhz, Supply Voltage Range:2.5V To 12.6V, Ic Case/Package:Soic, No. Of Pins:8Pins, Amplifier Type:General Purpose, Input Offset Voltage:1.4Mvrohs Compliant: Yes |Analog Devices LT6200CS8#PBF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 368 |
|
$2.8900 | Buy Now |
|
DISTI #
584-LT6200CS8#PBF
|
Mouser Electronics | High Speed Operational Amplifiers 165MHz, R2R In & Out, 0.95nV/vHz L N, RoHS: Compliant | 1733 |
|
$3.6000 / $7.4600 | Buy Now |
|
|
Analog Devices Inc | 165MHz, R2R In & Out, 0.95nV/v Package Multiple: 100 | 1546 |
|
$2.8600 / $8.3200 | Buy Now |
|
|
Rochester Electronics | LT6200 - 165MHz, Rail-to-Rail Input and Output, 0.95Hz Low Noise, Op Amp Family RoHS: Compliant Status: Active Min Qty: 1 | 22 |
|
$3.0100 / $3.7600 | Buy Now |
|
DISTI #
LT6200CS8#PBF
|
Richardson RFPD | AMPLIFIER - OP AMPS RoHS: Compliant Min Qty: 100 | 0 |
|
$3.6900 / $4.0500 | Buy Now |
Part Details for LT6200CS8#PBF
LT6200CS8#PBF CAD Models
LT6200CS8#PBF Part Data Attributes
|
|
LT6200CS8#PBF
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
LT6200CS8#PBF
Analog Devices Inc
165MHz, Rail-to-Rail Input and Output, 0.95nV/√Hz Low Noise, Op Amp Family
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Package Description | SOP-8 | |
| Pin Count | 8 | |
| Manufacturer Package Code | 05-08-1610 (S8) | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Analog Devices | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 18 µA | |
| Bias Current-Max (IIB) @25C | 18 µA | |
| Common-mode Reject Ratio-Min | 65 dB | |
| Common-mode Reject Ratio-Nom | 90 dB | |
| Frequency Compensation | NO | |
| Input Offset Current-Max (IIO) | 5 µA | |
| Input Offset Voltage-Max | 7500 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e3 | |
| Length | 4.9025 mm | |
| Low-Bias | NO | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -6.3 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.752 mm | |
| Slew Rate-Min | 31 V/us | |
| Slew Rate-Nom | 44 V/us | |
| Supply Current-Max | 40 mA | |
| Supply Voltage Limit-Max | 6.3 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 165000 | |
| Voltage Gain-Min | 70000 | |
| Wideband | NO | |
| Width | 3.899 mm |
Alternate Parts for LT6200CS8#PBF
This table gives cross-reference parts and alternative options found for LT6200CS8#PBF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of LT6200CS8#PBF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LT6200CS8 | Linear Technology | Check for Price | LT6200 - 165MHz, Rail-to-Rail Input and Output, 0.95nV/√Hz Low Noise, Op Amp Family; Package: SO; Pins: 8; Temperature Range: 0°C to 70°C | LT6200CS8#PBF vs LT6200CS8 |
LT6200CS8#PBF Frequently Asked Questions (FAQ)
-
A good PCB layout for the LT6200CS8 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
-
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor is of high quality and has a low equivalent series resistance (ESR). A minimum output capacitance of 2.2uF is recommended.
-
The maximum power dissipation of the LT6200CS8 is dependent on the ambient temperature and the thermal resistance of the package. For the CS8 package, the maximum power dissipation is approximately 1.4W at 25°C ambient temperature.
-
Yes, the LT6200CS8 can be used in a single-supply application. However, the input common-mode voltage range is limited to VCC-1.5V to VCC+0.5V. Ensure that the input signal is within this range to maintain optimal performance.
-
To reduce noise and distortion, use a low-noise power supply, keep the input and output traces short and shielded, and use high-quality components with low noise and distortion specifications. Additionally, consider adding a noise filter or a shielding layer to the PCB.
