Relays / Power/Signal Relays / JW2SN-DC5V
Datasheets
JW2SN-DC5V by:

Power/Signal Relay, DPDT, Momentary, 0.106A (Coil), 5VDC (Coil), 530mW (Coil), 5A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

Part Details for JW2SN-DC5V by Panasonic Electronic Components

Results Overview of JW2SN-DC5V by Panasonic Electronic Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

JW2SN-DC5V Information

JW2SN-DC5V by Panasonic Electronic Components is a Power/Signal Relay.
Power/Signal Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for JW2SN-DC5V

Part # Distributor Description Stock Price Buy
DISTI # 64K3159
Newark Relay, Dpdt, 277Vac, 30Vdc, 5A, Contact Configuration:Dpdt, Coil Voltage:5Vdc, Contact Current:5A, Product Range:Jw Series, Relay Mounting:Through Hole, Coil Type:Non Latching, Contact Voltage Vac:277Vac, Relay Terminals:Solder Rohs Compliant: Yes |Panasonic JW2SN-DC5V RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 84
  • 1 $1.7900
  • 10 $1.7900
  • 25 $1.7900
  • 50 $1.7900
  • 100 $1.7900
  • 500 $1.7900
  • 1,000 $1.7900
$1.7900 Buy Now
DISTI # 255-1116-ND
DigiKey RELAY GEN PURPOSE DPDT 5A 5V Min Qty: 1 Lead time: 24 Weeks Container: Bulk 15538
In Stock
  • 1 $2.7700
  • 10 $2.4660
  • 25 $2.3552
  • 50 $2.2746
  • 100 $2.1967
  • 300 $2.0785
  • 500 $2.0257
  • 1,000 $1.9561
  • 5,000 $1.8035
$1.8035 / $2.7700 Buy Now
DISTI # JW2SN-DC5V
Avnet Americas General Purpose Relay, JW Series, Power, Non Latching, DPDT, 5 VDC, 5 A - Bulk (Alt: JW2SN-DC5V) RoHS: Compliant Min Qty: 100 Package Multiple: 1 Lead time: 24 Weeks, 0 Days Container: Bulk 0
  • 100 $2.0085
  • 110 $1.9803
  • 210 $1.9482
  • 500 $1.9160
  • 1,000 $1.3572
$1.3572 / $2.0085 Buy Now
DISTI # 769-JW2SN-DC5V
Mouser Electronics General Purpose Relays 5A 5VDC DPDT SEALED PCB RoHS: Compliant 6246
  • 1 $2.3300
  • 10 $2.1800
  • 25 $2.1500
  • 250 $2.0800
  • 500 $2.0200
  • 1,000 $1.9500
$1.9500 / $2.3300 Buy Now
DISTI # V36:1790_10817734
Arrow Electronics Power Relay 5VDC 5A DPDT(28.6mm 12.8mm 20mm) THT RoHS: Compliant Min Qty: 94 Package Multiple: 1 Lead time: 24 Weeks Date Code: 2351 Americas - 2190
  • 104 $0.9636
  • 500 $0.9515
  • 1,000 $0.9235
$0.9235 / $0.9636 Buy Now
DISTI # V99:2348_10817734
Arrow Electronics Power Relay 5VDC 5A DPDT(28.6mm 12.8mm 20mm) THT RoHS: Compliant Min Qty: 34 Package Multiple: 1 Lead time: 24 Weeks Date Code: 2207 Americas - 34
  • 0 $2.0708
  • 1 $1.2810
$1.2810 / $2.0708 Buy Now
DISTI # 70158620
RS Relay, 5 A, 5 VDC, Power, 47 Ohms, Silver Alloy, 1250 VA, 150 W, 100 MegOhms Min Qty: 1 Package Multiple: 1 Lead time: 50 Weeks, 0 Days Container: Bulk 0
  • 1 $2.8000
  • 10 $2.6600
  • 25 $2.5200
  • 50 $2.3800
  • 100 $2.2400
$2.2400 / $2.8000 RFQ
Future Electronics JW Series 5 A DPDT 5 VDC Through Hole Sealed Non-Polarized Miniature Power Relay RoHS: Compliant pbFree: Yes Min Qty: 1 Package Multiple: 1 Lead time: 24 Weeks Container: Bulk 1000
Bulk
  • 1 $1.4300
  • 25 $1.4100
  • 75 $1.3900
  • 150 $1.3800
  • 400 $1.3400
$1.3400 / $1.4300 Buy Now
Onlinecomponents.com Power Relay 5VDC 5A DPDT(28.6mm 12.8mm 20mm) THT RoHS: Compliant 12308 In Stock
  • 10 $2.2000
  • 100 $1.3700
  • 300 $1.3300
  • 500 $1.3100
  • 1,000 $1.3000
  • 2,500 $1.2900
$1.2900 / $2.2000 Buy Now
DISTI # 62405342
Verical Power Relay 5VDC 5A DPDT(28.6mm 12.8mm 20mm) THT RoHS: Compliant Min Qty: 30 Package Multiple: 10 Date Code: 2216 Americas - 12300
  • 30 $3.3118
  • 100 $2.1528
  • 300 $2.0369
  • 500 $1.9796
  • 1,000 $1.9110
$1.9110 / $3.3118 Buy Now
DISTI # 79048016
Verical Power Relay 5VDC 5A DPDT(28.6mm 12.8mm 20mm) THT RoHS: Compliant Min Qty: 94 Package Multiple: 1 Date Code: 2351 Americas - 2190
  • 94 $1.2236
$1.2236 Buy Now
DISTI # 87685049
Verical Power Relay 5VDC 5A DPDT(28.6mm 12.8mm 20mm) THT RoHS: Compliant Min Qty: 100 Package Multiple: 100 Date Code: 2502 Americas - 600
  • 100 $2.1528
  • 250 $2.0384
  • 300 $2.0369
  • 500 $1.9796
$1.9796 / $2.1528 Buy Now
DISTI # 36155496
Verical Power Relay 5VDC 5A DPDT(28.6mm 12.8mm 20mm) THT RoHS: Compliant Min Qty: 28 Package Multiple: 1 Americas - 84
  • 28 $2.6978
  • 50 $2.5950
$2.5950 / $2.6978 Buy Now
Quest Components POWER/SIGNAL RELAY, DPDT, MOMENTARY, 0.106A (COIL), 5VDC (COIL), 530mW (COIL), 5A (CONTACT), 30VDC (CONTACT), THROUGH HOLE-STRAIGHT MOUNT 57
  • 1 $3.4400
  • 11 $2.1500
  • 36 $1.8920
$1.8920 / $3.4400 Buy Now
DISTI # JW2SN-DC5V
TTI General Purpose Relays 5A 5VDC DPDT SEALED PCB RoHS: Compliant pbFree: Pb-Free Min Qty: 3 Package Multiple: 1 Container: Bulk Americas - 2790
In Stock
  • 3 $1.8100
  • 10 $1.6600
  • 25 $1.5500
  • 100 $1.5200
  • 150 $1.4900
  • 300 $1.4600
  • 500 $1.4300
$1.4300 / $1.8100 Buy Now
DISTI # JW2SN-DC5V
TTI General Purpose Relays 5A 5VDC DPDT SEALED PCB RoHS: Compliant pbFree: Pb-Free Min Qty: 3 Package Multiple: 1 Container: Bulk Americas - 2790
In Stock
  • 3 $1.8100
  • 10 $1.6600
  • 25 $1.5500
  • 100 $1.5200
  • 150 $1.4900
  • 300 $1.4600
  • 500 $1.4300
$1.4300 / $1.8100 Buy Now
Future Electronics JW Series 5 A DPDT 5 VDC Through Hole Sealed Non-Polarized Miniature Power Relay Min Qty: 1 Package Multiple: 1 1000
null
  • 1 $1.3700
  • 25 $1.3500
  • 75 $1.3300
  • 150 $1.3200
  • 400 $1.2900
$1.2900 / $1.3700 Buy Now
DISTI # JW2SN-DC5V
TME Relay: electromagnetic, DPDT, Ucoil: 5VDC, Icontacts max: 5A, JW Min Qty: 1 0
  • 1 $3.2000
  • 5 $2.7200
  • 25 $2.4000
  • 100 $2.2400
  • 1,000 $2.0800
$2.0800 / $3.2000 RFQ
DISTI # 000000000000006847
Sager NAIS BRAND RELAY Min Qty: 100 1000
  • 100 $2.4800
  • 200 $2.3700
  • 300 $2.3000
  • 600 $2.2400
  • 1,200 $2.1500
$2.1500 / $2.4800 Buy Now
Master Electronics Power Relay 5VDC 5A DPDT(28.6mm 12.8mm 20mm) THT RoHS: Compliant 12308 In Stock
  • 10 $2.2000
  • 100 $1.3700
  • 300 $1.3300
  • 500 $1.3100
  • 1,000 $1.3000
  • 2,500 $1.2900
$1.2900 / $2.2000 Buy Now
New Advantage Corporation JW Series 5 A DPDT 5 VDC Through Hole Sealed Non-Polarized Miniature Power Relay RoHS: Compliant Min Qty: 1 Package Multiple: 100 800
  • 100 $2.2800
  • 800 $2.1100
$2.1100 / $2.2800 Buy Now

Part Details for JW2SN-DC5V

JW2SN-DC5V CAD Models

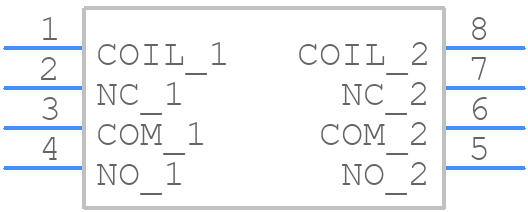

  • Part Symbol

    Part Symbol

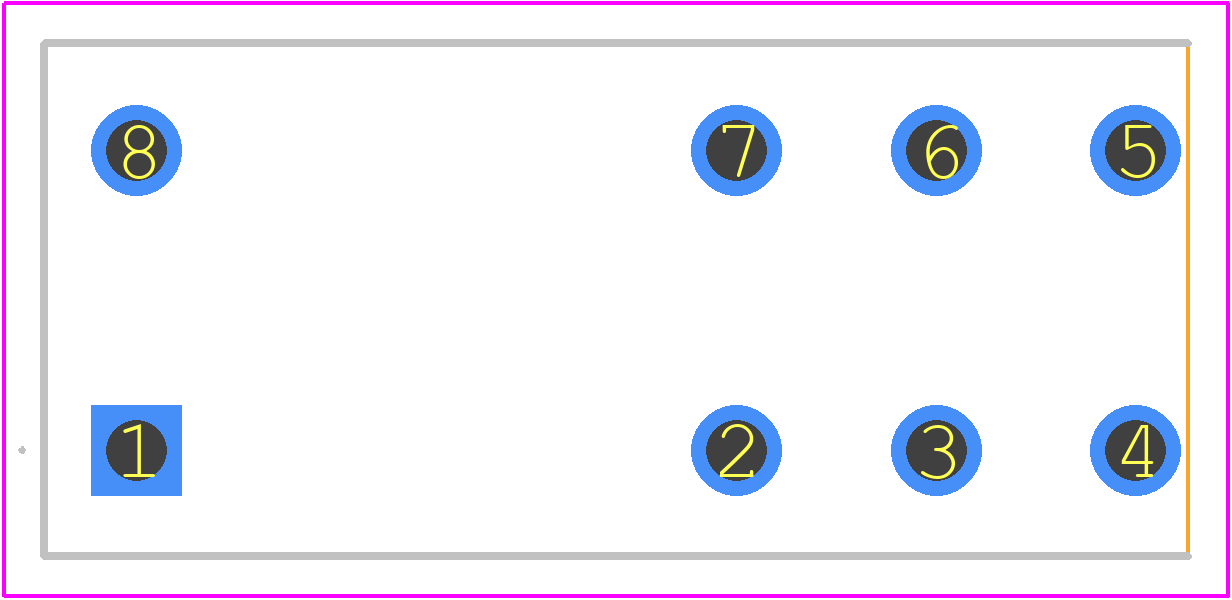

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

JW2SN-DC5V Part Data Attributes

Parametric Data
JW2SN-DC5V Panasonic Electronic Components
Buy Now Datasheet
Compare Parts:
JW2SN-DC5V Panasonic Electronic Components Power/Signal Relay, DPDT, Momentary, 0.106A (Coil), 5VDC (Coil), 530mW (Coil), 5A (Contact), 30VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer PANASONIC CORP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.41.00.20
Factory Lead Time 24 Weeks
Samacsys Manufacturer Panasonic
Body Breadth 12.8 mm
Body Height 20.4 mm
Body Length or Diameter 28.6 mm
Coil Current(DC)-Max 0.106 A
Coil Operate Voltage(DC) 3.5 V
Coil Power 530 mW
Coil Release Voltage(DC) 0.5 V
Coil Resistance 47 Ω
Coil Voltage(DC)-Max 6.5 V
Coil Voltage-Nom 5 V
Coil/Input Supply Type DC
Contact (AC) Max Power Rating R Load 1250VA@250VAC
Contact (AC) Max Rating R Load 5A@250VAC
Contact Current(AC)-Max 5 A
Contact Current(DC)-Max 5 A
Contact (DC) Max Power Rating R Load 150W@30VDC
Contact (DC) Max Rating R Load 5A@30VDC
Contact Resistance 100 mΩ
Contact Voltage(AC)-Max 250 V
Contact Voltage(DC)-Max 30 V
Contact/Output Supply Type AC/DC
Electrical Life 100000 Cycle(s)
End Contact Material Silver Nickel
Input Switching Control Type Random
Insulation Resistance 1000000000 Ω
Mounting Feature THROUGH HOLE-STRAIGHT
Number of Terminals 8
Operate Time 15 ms
Operating Temperature-Max 60 °C
Operating Temperature-Min -40 °C
Packing Method BOX
Physical Dimension 28.6mm x 12.8mm x 20.4mm
Reference Standard CSA; FIMKO; SEMKO; SEV; TUV; UL; VDE
Relay Action MOMENTARY
Relay Form 2 FORM C
Relay Function DPDT
Relay Type POWER/SIGNAL RELAY
Release Time 5 ms
Surface Mount NO
Terminal Length 0.003599187198374397 inch
Termination Type SOLDER

JW2SN-DC5V Related Parts

JW2SN-DC5V Frequently Asked Questions (FAQ)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper mounting, thermal management, and signal integrity.

  • Proper thermal management is crucial for JW2SN-DC5V. Ensure good heat dissipation by using a heat sink, thermal interface material, and a well-designed PCB with adequate thermal vias. Follow Panasonic's thermal management guidelines for optimal performance.

  • While the datasheet specifies a 5V operating voltage, it's essential to note that the absolute maximum voltage rating is typically 6V. Exceeding this voltage may damage the component or affect its reliability.

  • JW2SN-DC5V is rated for operation up to 85°C. However, if your application requires operation above this temperature, consult Panasonic's reliability data and derating guidelines to ensure the component's performance and reliability.

  • To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing signal loop areas, and using shielding or filtering components as needed. Consult Panasonic's EMC guidelines and relevant industry standards for more information.
