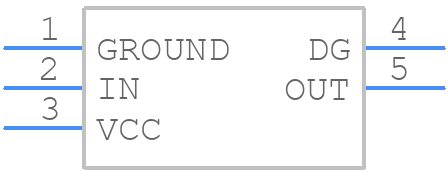

Part Symbol
-

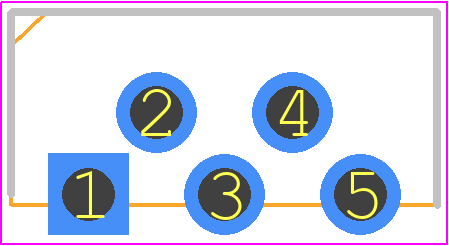

Footprint
-

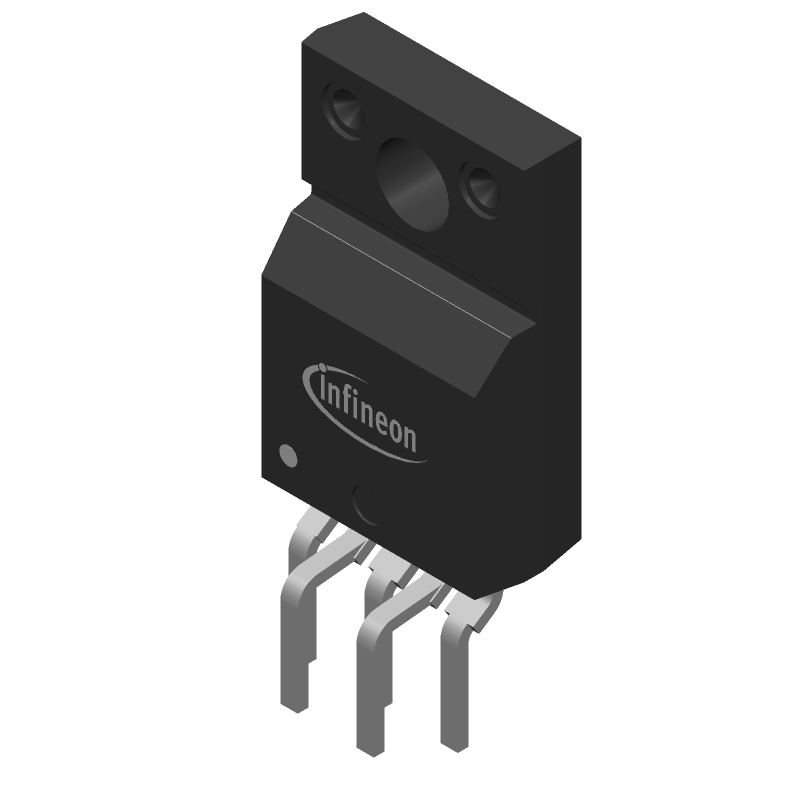

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for IPS521 by Infineon Technologies AG
Results Overview of IPS521 by Infineon Technologies AG
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
IPS521 Information
IPS521 by Infineon Technologies AG is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Part Details for IPS521
IPS521 CAD Models
IPS521 Part Data Attributes
|
|
IPS521
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
IPS521
Infineon Technologies AG
Buffer/Inverter Based Peripheral Driver, 7A, PSFM5, TO-220, 5 PIN
|
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Package Description | TO-220, 5 PIN | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Infineon | |
| Additional Feature | OVER TEMPERATURE PROTECTION WITH AUTO-RESTART | |
| Built-in Protections | OVER CURRENT; THERMAL | |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | |
| JESD-30 Code | R-PSFM-T5 | |
| JESD-609 Code | e0 | |
| Number of Functions | 1 | |
| Number of Terminals | 5 | |
| Output Current Flow Direction | SOURCE | |
| Output Peak Current Limit-Nom | 7 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TO-220 | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Qualification Status | Not Qualified | |
| Supply Voltage-Max | 35 V | |
| Supply Voltage-Min | 5.5 V | |
| Supply Voltage-Nom | 14 V | |
| Surface Mount | NO | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Turn-off Time | 70 µs | |
| Turn-on Time | 40 µs |
