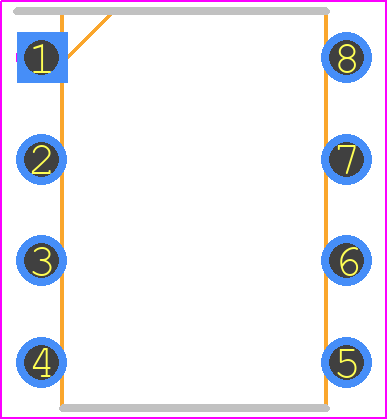

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for HCPL-2531-000E by Avago Technologies
Results Overview of HCPL-2531-000E by Avago Technologies
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
HCPL-2531-000E Information
HCPL-2531-000E by Avago Technologies is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for HCPL-2531-000E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
70158165
|
RS | Optoisolater, Analog, 8-Pin DIP, Transistor, 2 Channel, (1MBD),LF Min Qty: 1 Package Multiple: 1 Container: Bulk | 0 |
|
$1.6400 / $2.2100 | RFQ |
|
|
Bristol Electronics | Min Qty: 2 | 100 |
|
$1.0125 / $2.7000 | Buy Now |
|
|
Quest Components | NPN-OUTPUT DC-INPUT OPTOCOUPLER,2-CHANNEL,3KV ISOLATION,DIP | 80 |
|
$1.3500 / $3.6000 | Buy Now |
Part Details for HCPL-2531-000E
HCPL-2531-000E CAD Models
HCPL-2531-000E Part Data Attributes
|
|
HCPL-2531-000E
Avago Technologies
Buy Now
Datasheet
|
Compare Parts:
HCPL-2531-000E
Avago Technologies
2 CHANNEL LOGIC OUTPUT OPTOCOUPLER, 1Mbps, 0.300 INCH, ROHS COMPLIANT, DIP-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AVAGO TECHNOLOGIES INC | |
| Package Description | 0.300 INCH, ROHS COMPLIANT, DIP-8 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8541.40.80.00 | |
| Samacsys Manufacturer | Avago Technologies | |
| Additional Feature | TTL COMPATIBLE, UL RECOGNIZED | |
| Configuration | SEPARATE, 2 CHANNELS | |
| Current Transfer Ratio-Min | 19% | |
| Data Rate-Nom | 1 MBps | |
| Forward Current-Max | 0.025 A | |
| Forward Voltage-Max | 1.7 V | |
| Isolation Voltage-Max | 3750 V | |
| JESD-609 Code | e3 | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Elements | 2 | |
| Number of Functions | 2 | |
| On-State Current-Max | 0.008 A | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -55 °C | |
| Optoelectronic Device Type | LOGIC IC OUTPUT OPTOCOUPLER | |
| Power Dissipation-Max | 0.035 W | |
| Response Time-Max | 8e-7 s | |
| Surface Mount | NO | |
| Terminal Finish | MATTE TIN |
Alternate Parts for HCPL-2531-000E
This table gives cross-reference parts and alternative options found for HCPL-2531-000E. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of HCPL-2531-000E, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| HCPL-2531-000E | Agilent Technologies Inc | Check for Price | Transistor Output Optocoupler, | HCPL-2531-000E vs HCPL-2531-000E |
HCPL-2531-000E Frequently Asked Questions (FAQ)
-
A good PCB layout for HCPL-2531-000E involves keeping the input and output circuits separate, using a ground plane, and minimizing track lengths and widths to reduce electromagnetic interference (EMI).
-
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its recommended temperature range (-40°C to 100°C), and consider using a heat sink or thermal management system to prevent overheating.
-
The recommended input voltage range for HCPL-2531-000E is 3.15 V to 5.5 V, with a typical operating voltage of 5 V.
-
To troubleshoot issues with HCPL-2531-000E, check the input voltage, ensure proper PCB layout, and verify that the device is operated within its recommended temperature range. Also, check for any electrical noise or interference that may be affecting the device's operation.
-
Yes, HCPL-2531-000E is suitable for use in high-reliability or safety-critical applications, such as in industrial control systems, medical devices, or automotive systems, due to its high isolation voltage and reliability features.
