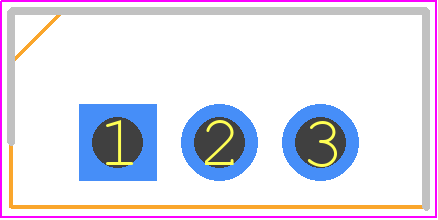

Footprint
-

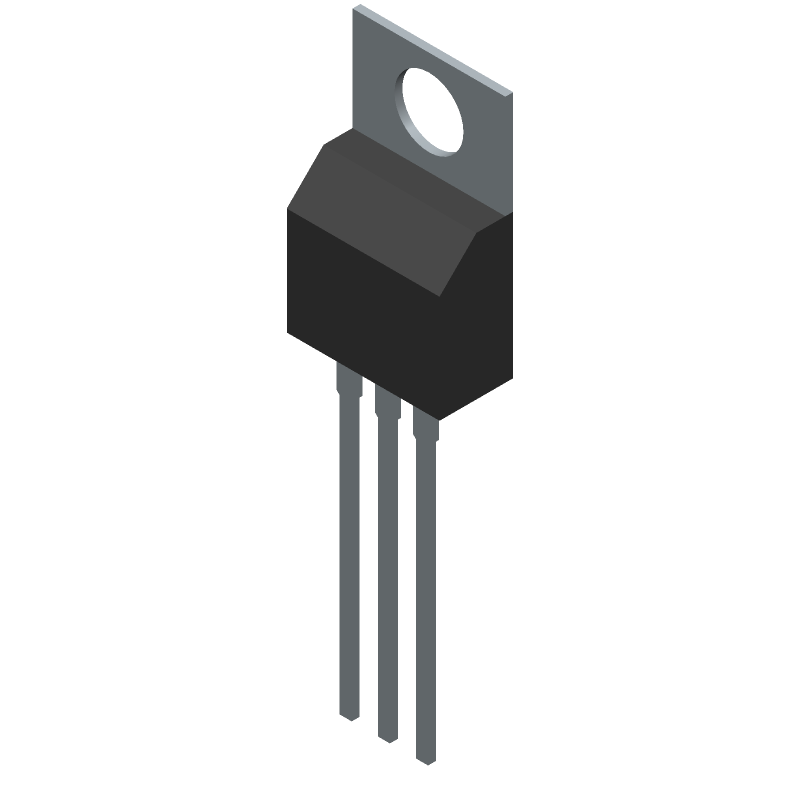

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for FQPF9P25 by onsemi
Results Overview of FQPF9P25 by onsemi
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
FQPF9P25 Information
FQPF9P25 by onsemi is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for FQPF9P25
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
46AC0864
|
Newark | Mosfet, P-Ch, -250V, -6A, To-220F-3, Transistor Polarity:P Channel, Continuous Drain Current Id:-6A, Drain Source Voltage Vds:-250V, On Resistance Rds(On):0.48Ohm, Rds(On) Test Voltage Vgs:-10V, Threshold Voltage Vgs:-5V, Power Rohs Compliant: Yes |Onsemi FQPF9P25 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
Buy Now | |
|
DISTI #
V79:2366_26625678
|
Arrow Electronics | Trans MOSFET P-CH 250V 6A 3-Pin(3+Tab) TO-220FP Tube Min Qty: 1 Package Multiple: 1 Date Code: 2104 | Americas - 3 |
|
$0.7183 | Buy Now |
|
DISTI #
FQPF9P25
|
Avnet Silica | Trans MOSFET PCH 250V 6A 3Pin3Tab TO220F Rail (Alt: FQPF9P25) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 143 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
FQPF9P25
|
EBV Elektronik | Trans MOSFET PCH 250V 6A 3Pin3Tab TO220F Rail (Alt: FQPF9P25) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for FQPF9P25
FQPF9P25 CAD Models
FQPF9P25 Part Data Attributes
|
|
FQPF9P25
onsemi
Buy Now
Datasheet
|
Compare Parts:
FQPF9P25
onsemi
P-Channel QFET® MOSFET -250V, -6A, 620mΩ, TO-220-3 FullPak, 1000-TUBE
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | ONSEMI | |
| Part Package Code | TO-220-3 FullPak | |
| Manufacturer Package Code | 221AT | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 34 Weeks | |
| Samacsys Manufacturer | onsemi | |
| Avalanche Energy Rating (Eas) | 650 mJ | |
| Case Connection | ISOLATED | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| DS Breakdown Voltage-Min | 250 V | |
| Drain Current-Max (ID) | 6 A | |
| Drain-source On Resistance-Max | 0.62 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Number of Elements | 1 | |
| Number of Terminals | 3 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Polarity/Channel Type | P-CHANNEL | |
| Power Dissipation-Max (Abs) | 50 W | |
| Pulsed Drain Current-Max (IDM) | 24 A | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
