ECE40US24-S Information
ECE40US24-S by XP Power is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ECE40US24-S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
24T5148
|
Newark | Ac-Dc Converter, Enclosed, 1 O/P, 40W, 1.67A, 24V, Screw Terminal, Power Supply Applications:Ite, No. Of Outputs:1Outputs, Output Power Max:40W, Output Voltage - Output 1:24V, Output Current - Output 1:1.67A, Product Range:Ece Seriesrohs Compliant: Yes |Xp Power ECE40US24-S RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 24 |
|
$68.9900 / $82.1300 | Buy Now |
|
DISTI #
1470-1144-ND
|
DigiKey | AC/DC CONVERTER 24V 40W Min Qty: 1 Lead time: 13 Weeks Container: Box |
89 In Stock |
|
$68.9894 / $82.1300 | Buy Now |
|
DISTI #
209-ECE40US24-S
|
Mouser Electronics | AC/DC Power Modules AC/DC, ENCAPSULATED, 40W, SCREW CON RoHS: Compliant | 0 |
|
$68.9800 / $82.1300 | Order Now |
|
DISTI #
70808263
|
RS | Power Supply AC-DC 24V 1.67A 90-264V In Encapsulated 40.1W Panel ECE Series Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks, 0 Days Container: Bulk | 132 |
|
$149.5900 / $169.9900 | Buy Now |
|
DISTI #
ECE40US24-S
|
TME | Power supply: switching, for building in, 40W, 24VDC, 1.67A, OUT: 1 Min Qty: 1 | 6 |
|
$63.7400 / $80.8000 | Buy Now |
|
DISTI #
ECE40US24-S
|
Avnet Abacus | ACDC Enclosed Power Supply PSU ITE 1 Outputs 40 W 24 VDC 167 A (Alt: ECE40US24-S) RoHS: Compliant Min Qty: 80 Package Multiple: 80 Lead time: 15 Weeks, 0 Days | Abacus - 80 |
|
Buy Now |
Part Details for ECE40US24-S

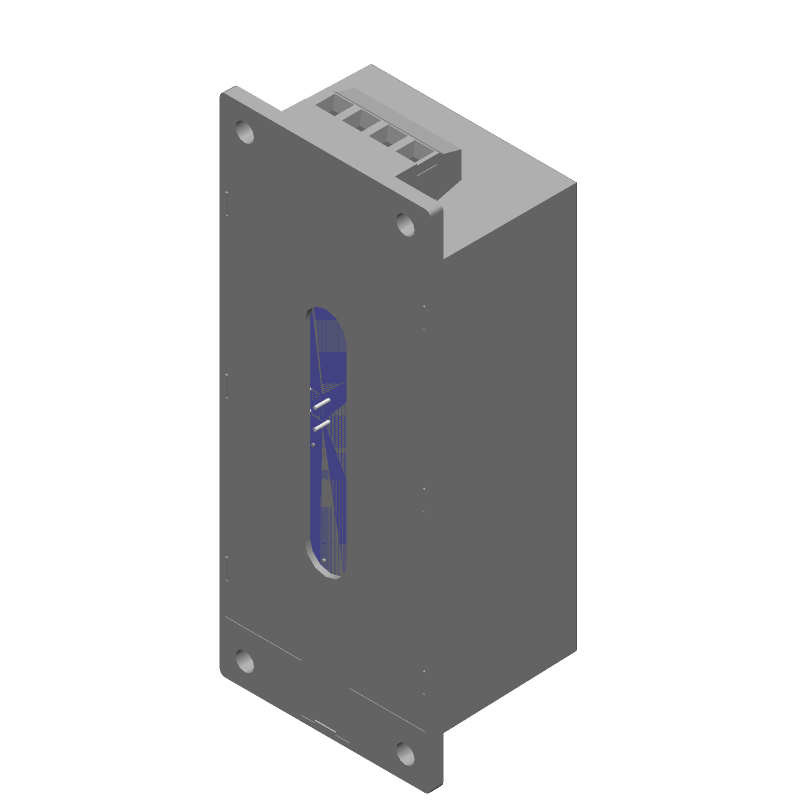

ECE40US24-S CAD Models
ECE40US24-S Part Data Attributes
|
|
ECE40US24-S
XP Power
Buy Now
Datasheet
|
Compare Parts:
ECE40US24-S
XP Power
AC/DC CONVERTER 24V 40W
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | XP POWER LTD | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Date Of Intro | 2020-02-18 | |
| Samacsys Manufacturer | XP POWER | |
| Analog IC - Other Type | AC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | CSA, EN, IEC, UL | |
| Efficiency (Main Output) | 85% | |
| Input Voltage-Max | 264 V | |
| Input Voltage-Min | 85 V | |
| Input Voltage-Nom | 90 V | |
| JESD-30 Code | R-XDMA-P4 | |
| Length | 87 mm | |
| Line Regulation-Max | 0.5% | |
| Load Regulation-Max | 1% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | -25 °C | |
| Output Current-Max | 2.17 A | |
| Output Voltage-Max | 24.24 V | |
| Output Voltage-Min | 23.76 V | |
| Output Voltage-Nom | 24 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | DMA | |
| Package Equivalence Code | MODULE,4LEAD,2.8 | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Protections | OVER LOAD; OVER VOLTAGE; SHORT CIRCUIT | |
| Ripple Voltage (Main Out) | 0.08484 Vrms | |
| Screening Level | EN/IEC/UL 62368-1 | |
| Seated Height-Max | 23.5 mm | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Terminal Form | PIN/PEG | |
| Terminal Position | DUAL | |
| Total Power Output-Max | 40 W | |
| Trim/Adjustable Output | NO | |
| Warm-up Time | 2.016 s | |
| Width | 40 mm |
