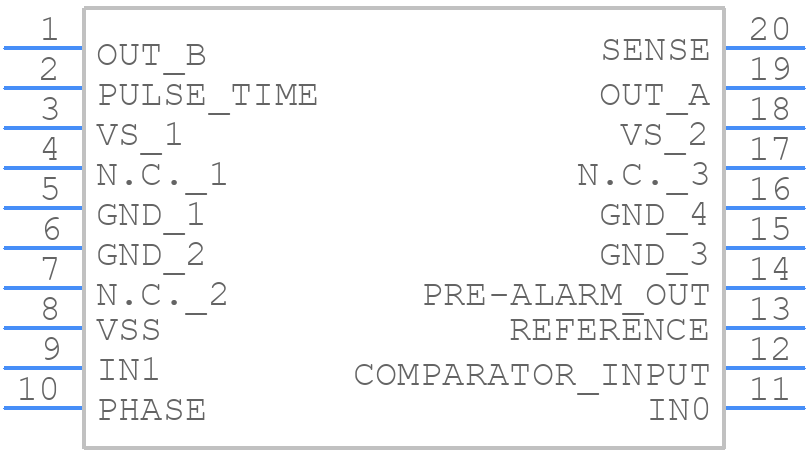

Part Symbol
-

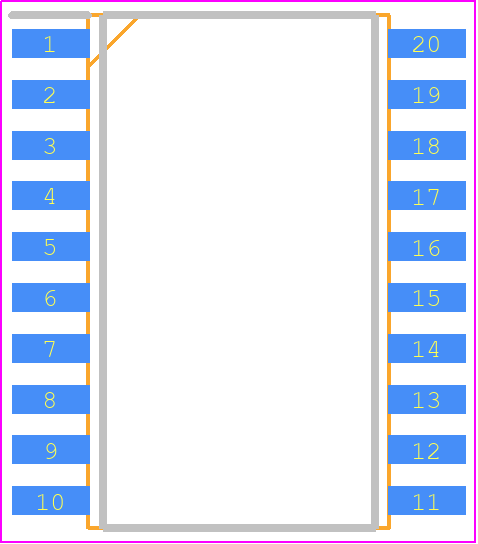

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for E-TEA3718SFP by STMicroelectronics
Results Overview of E-TEA3718SFP by STMicroelectronics
- Distributor Offerings: (10 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
E-TEA3718SFP Information
E-TEA3718SFP by STMicroelectronics is a Motion Control Electronic.
Motion Control Electronics are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for E-TEA3718SFP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
497-14162-5-ND
|
DigiKey | IC MTR DRV BIPLR 4.75-5.25V 20SO Min Qty: 1 Lead time: 25 Weeks Container: Tube | Temporarily Out of Stock |
|
$2.2025 / $4.0500 | Buy Now |
|
DISTI #
E-TEA3718SFP
|
Avnet Americas | Stepper Motor Controller 20-Pin SO Tube - Rail/Tube (Alt: E-TEA3718SFP) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 25 Weeks, 0 Days Container: Tube | 0 |
|
$1.9250 / $2.0468 | Buy Now |
|
DISTI #
511-E-TEA3718SFP
|
Mouser Electronics | Motor / Motion / Ignition Controllers & Drivers STEPPER MOTOR DRIVER RoHS: Compliant | 1030 |
|
$2.1000 / $4.0800 | Buy Now |
|
DISTI #
E02:0323_00208259
|
Arrow Electronics | Stepper Motor Controller 20-Pin SO Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 25 Weeks Date Code: 2317 | Europe - 340 |
|
$2.1208 | Buy Now |
|
|
STMicroelectronics | Stepper Motor Driver COO: Malaysia RoHS: Compliant Min Qty: 1 | 1030 |
|
$2.3000 / $3.9800 | Buy Now |
|
|
Future Electronics | RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 25 Weeks | 0 |
|
$2.0800 | Buy Now |
|
DISTI #
69086442
|
Verical | Stepper Motor Controller 20-Pin SO Tube RoHS: Compliant Min Qty: 3 Package Multiple: 1 Date Code: 2317 | Americas - 340 |
|
$2.1320 | Buy Now |
|
|
Bristol Electronics | 520 |
|
RFQ | ||
|
DISTI #
E-TEA3718SFP
|
Avnet Silica | Stepper Motor Controller 20Pin SO Tube (Alt: E-TEA3718SFP) RoHS: Compliant Min Qty: 40 Package Multiple: 40 Lead time: 17 Weeks, 0 Days | Silica - 840 |
|
Buy Now | |
|
DISTI #
E-TEA3718SFP
|
EBV Elektronik | Stepper Motor Controller 20Pin SO Tube (Alt: E-TEA3718SFP) RoHS: Compliant Min Qty: 40 Package Multiple: 40 Lead time: 26 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for E-TEA3718SFP
E-TEA3718SFP CAD Models
E-TEA3718SFP Part Data Attributes
|
|
E-TEA3718SFP
STMicroelectronics
Buy Now
Datasheet
|
Compare Parts:
E-TEA3718SFP
STMicroelectronics
Stepper Motor Driver
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STMICROELECTRONICS | |
| Part Package Code | SOIC | |
| Package Description | SO-20 | |
| Pin Count | 20 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 25 Weeks | |
| Samacsys Manufacturer | STMicroelectronics | |
| Additional Feature | ALSO REQUIRES A 10 TO 45 V SUPPLY | |
| Analog IC - Other Type | STEPPER MOTOR CONTROLLER | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e4 | |
| Length | 12.8 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 1.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP20,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 250 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2.65 mm | |
| Supply Current-Max (Isup) | 25 mA | |
| Supply Voltage-Max (Vsup) | 5.25 V | |
| Supply Voltage-Min (Vsup) | 4.75 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
