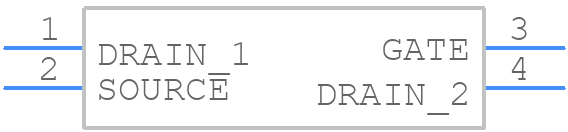

Part Symbol
-
Footprint
-

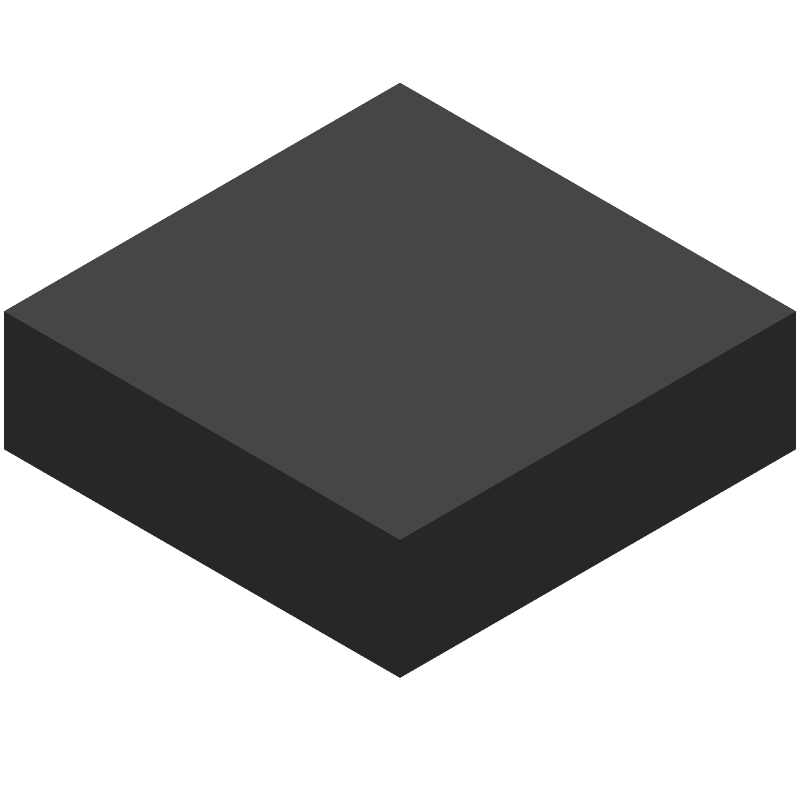

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CSD22205L by Texas Instruments
Results Overview of CSD22205L by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Motor control systems
CSD22205L Information
CSD22205L by Texas Instruments is a Small Signal Field-Effect Transistor.
Small Signal Field-Effect Transistors are under the broader part category of Transistors.
A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.
Price & Stock for CSD22205L
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-49605-1-ND
|
DigiKey | MOSFET P-CH 8V 7.4A 4PICOSTAR Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6127 In Stock |
|
$0.1577 / $0.7700 | Buy Now |
|
DISTI #
595-CSD22205L
|
Mouser Electronics | MOSFETs -8V P channel NexFE T power MOSFET sin A 595-CSD22205LT RoHS: Compliant | 4058 |
|
$0.1660 / $0.7300 | Buy Now |
|
|
LCSC | 8V 7.4A 600mW 9.9m4.5V1A 1.05V 1 piece P-channel PicoStar-4 MOSFETs ROHS | 745 |
|
$0.1635 / $0.2902 | Buy Now |
Part Details for CSD22205L
CSD22205L CAD Models
CSD22205L Part Data Attributes
|
|
CSD22205L
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
CSD22205L
Texas Instruments
-8V, P channel NexFET™ power MOSFET, single LGA 1.2 mm x 1.2 mm, 9.9 mOhm, gate ESD protection 4-PICOSTAR -55 to 150
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | LGA, 4 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8541.21.00.40 | |
| Date Of Intro | 2017-06-15 | |
| Samacsys Manufacturer | Texas Instruments | |
| Case Connection | DRAIN SOURCE | |
| Configuration | SINGLE WITH BUILT-IN DIODE AND RESISTOR | |
| DS Breakdown Voltage-Min | 8 V | |
| Drain Current-Max (ID) | 7.4 A | |
| Drain-source On Resistance-Max | 0.04 Ω | |
| FET Technology | METAL-OXIDE SEMICONDUCTOR | |
| Feedback Cap-Max (Crss) | 250 pF | |
| JESD-30 Code | S-PBGA-B4 | |
| JESD-609 Code | e4 | |
| Moisture Sensitivity Level | 1 | |
| Number of Elements | 1 | |
| Number of Terminals | 4 | |
| Operating Mode | ENHANCEMENT MODE | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY | |
| Peak Reflow Temperature (Cel) | 260 | |
| Polarity/Channel Type | P-CHANNEL | |
| Power Dissipation-Max (Abs) | 0.6 W | |
| Surface Mount | YES | |
| Terminal Finish | Nickel/Gold (Ni/Au) | |
| Terminal Form | BUTT | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Transistor Application | SWITCHING | |
| Transistor Element Material | SILICON |
Alternate Parts for CSD22205L
This table gives cross-reference parts and alternative options found for CSD22205L. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of CSD22205L, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| CSD22205LT | Texas Instruments | $0.5638 | -8V, P channel NexFET™ power MOSFET, single LGA 1.2 mm x 1.2 mm, 9.9 mOhm, gate ESD protection 4-PICOSTAR -55 to 150 | CSD22205L vs CSD22205LT |
CSD22205L Frequently Asked Questions (FAQ)
-
A good PCB layout for CSD22205L involves keeping the high-current paths short and wide, using multiple vias to connect the thermal pad to a heat sink or a copper plane, and minimizing the inductance of the power traces.
-
To ensure stability, ensure that the input capacitance is within the recommended range, use a low-ESR output capacitor, and add a small ceramic capacitor in parallel with the output capacitor to filter out high-frequency noise.
-
The maximum allowed junction temperature for CSD22205L is 150°C. Exceeding this temperature can reduce the lifespan of the device or cause permanent damage.
-
Yes, CSD22205L is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the reliability of the overall system.
-
To troubleshoot issues with CSD22205L, start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes or contact Texas Instruments' support team.
