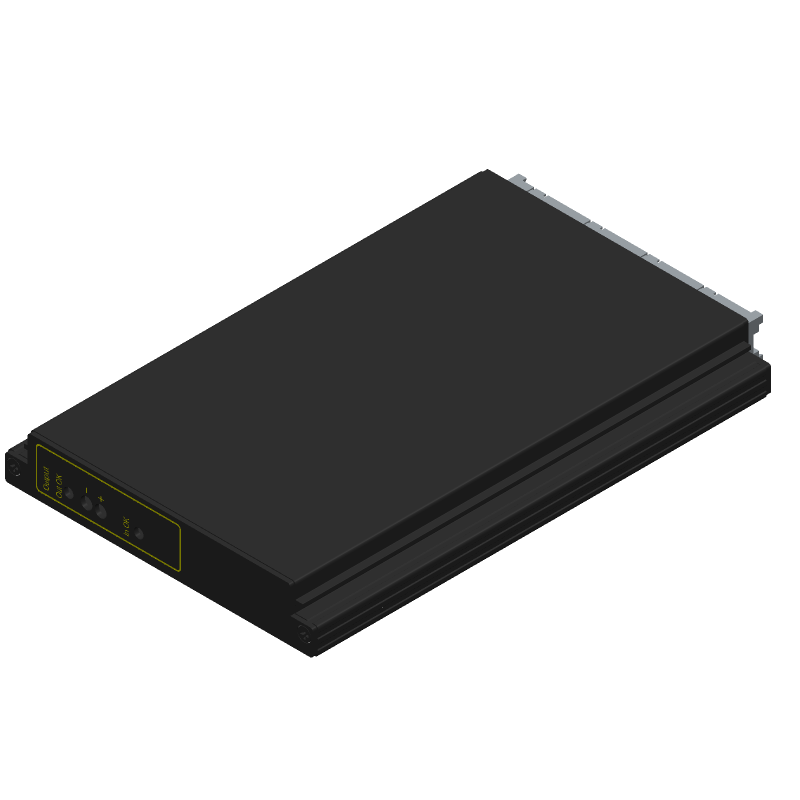

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for CQ2660-9R by Bel Power Solutions
Results Overview of CQ2660-9R by Bel Power Solutions
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
CQ2660-9R Information
CQ2660-9R by Bel Power Solutions is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for CQ2660-9R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
CQ2660-9R-ND
|
DigiKey | DC/DC CONVERTER 2X24V 132W Lead time: 12 Weeks Container: Bulk | Temporarily Out of Stock |
|
Buy Now | |
|
|
Onlinecomponents.com | Module DC-DC 48VIN 2-OUT 24V/24V 5.1A/5.1A 132W 15-Pin RoHS: Compliant | 0 |
|
$537.9300 / $628.2700 | Buy Now |
Part Details for CQ2660-9R
CQ2660-9R CAD Models
CQ2660-9R Part Data Attributes
|
|
CQ2660-9R
Bel Power Solutions
Buy Now
Datasheet
|
Compare Parts:
CQ2660-9R
Bel Power Solutions
DC/DC CONVERT DUAL 24V 5.1A
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | POWER-ONE INC | |
| Package Description | METAL, CASE Q01, MODULE | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | Bel Power Solutions | |
| Additional Feature | REMOTE SHUTDOWN | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | CE, CSA, UL | |
| Efficiency (Main Output) | 91% | |
| Input Voltage-Max | 75 V | |
| Input Voltage-Min | 33.6 V | |
| Input Voltage-Nom | 48 V | |
| JESD-30 Code | R-MXMA-X | |
| JESD-609 Code | e0 | |
| Length | 164 mm | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Operating Temperature-Max | 71 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 5.5 A | |
| Output Voltage-Max | 26.4 V | |
| Output Voltage-Min | 14.4 V | |
| Output Voltage-Nom | 24 V | |
| Package Body Material | METAL | |
| Package Code | XMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | OTHER | |
| Terminal Finish | TIN LEAD | |
| Terminal Form | UNSPECIFIED | |
| Terminal Position | UNSPECIFIED | |
| Total Power Output-Max | 132 W | |
| Trim/Adjustable Output | YES | |
| Warm-up Time | 0.008 s | |
| Width | 111 mm |
