CB5JB82R0 Information
CB5JB82R0 by SEI Stackpole Electronics Inc is a Wire Wound Resistor.
Wire Wound Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for CB5JB82R0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
CB5JB82R0-ND
|
DigiKey | RES 82 OHM 5% 5W AXIAL Min Qty: 1500 Lead time: 22 Weeks Container: Tray | Temporarily Out of Stock |
|
$0.1185 | Buy Now |
|
DISTI #
CB5JB82R0
|
Avnet Americas | - Bulk (Alt: CB5JB82R0) RoHS: Compliant Min Qty: 1500 Package Multiple: 750 Lead time: 22 Weeks, 0 Days Container: Bulk | 0 |
|
$0.1309 / $0.1397 | Buy Now |
|
DISTI #
CB5JB82R0
|
Avnet Americas | - Bulk (Alt: CB5JB82R0) RoHS: Compliant Min Qty: 1500 Package Multiple: 750 Lead time: 22 Weeks, 0 Days Container: Bulk | 0 |
|
$0.1309 / $0.1397 | Buy Now |
|
DISTI #
708-CB5JB82R0
|
Mouser Electronics | Ceramic Composition Resistors RES, WW, 5W, 82 ohm, 5% RoHS: Compliant | 0 |
|
$0.1180 | Order Now |
|
|
Onlinecomponents.com | RoHS: Compliant | 0 |
|
$0.1220 / $0.1420 | Buy Now |
|
|
NAC | RESISTOR, WIREWOUND, 5W, 82 ohm, 5% - Ceramic Housed Wirewound Resistor- General Purpose RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 | 0 |
|
$0.2375 / $0.3170 | Buy Now |
Part Details for CB5JB82R0

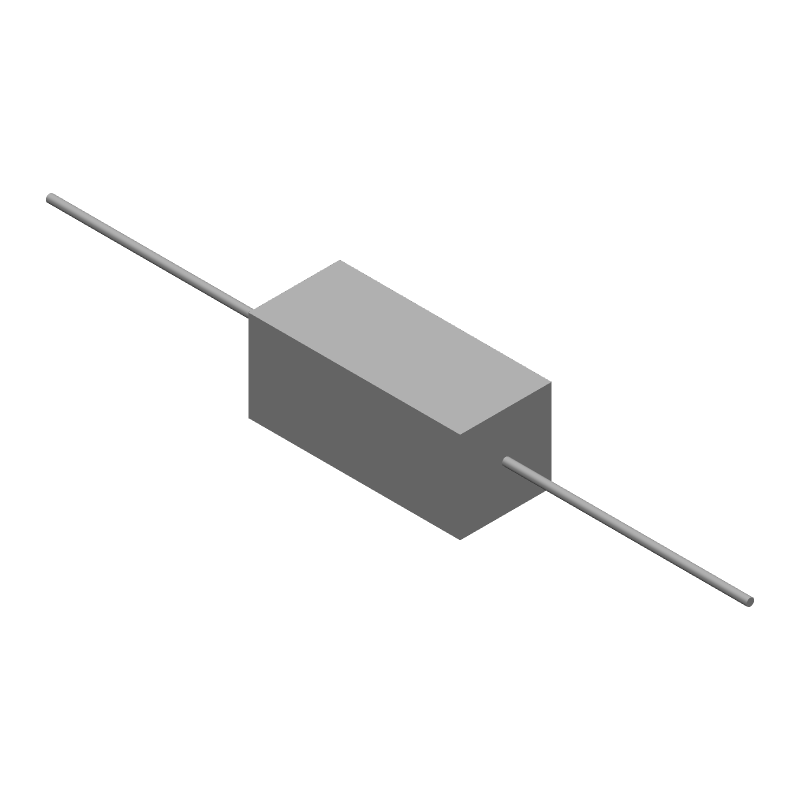

CB5JB82R0 CAD Models
CB5JB82R0 Part Data Attributes
|
|
CB5JB82R0
SEI Stackpole Electronics Inc
Buy Now
Datasheet
|
Compare Parts:
CB5JB82R0
SEI Stackpole Electronics Inc
Fixed Resistor, Wire Wound, 5W, 82ohm, 350V, 5% +/-Tol, -300,300ppm/Cel, Through Hole Mount, 8737, AXIAL LEADED, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | STACKPOLE ELECTRONICS INC | |
| Package Description | AXIAL LEADED, ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.80 | |
| Factory Lead Time | 22 Weeks | |
| Samacsys Manufacturer | Stackpole Electronics, Inc. | |
| Additional Feature | FLAME PROFF | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Lead Diameter | 0.8 mm | |
| Lead Length | 25.4 mm | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 275 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 9.5 mm | |
| Package Length | 22 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | Axial | |
| Package Width | 9.5 mm | |
| Packing Method | Bulk | |
| Rated Power Dissipation (P) | 5 W | |
| Rated Temperature | 70 °C | |
| Resistance | 82 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Surface Mount | NO | |
| Technology | WIRE WOUND | |
| Temperature Coefficient | 200 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Shape | WIRE | |
| Tolerance | 5% | |
| Working Voltage | 350 V |
