BVR-Z-R0002-1.0 Information
BVR-Z-R0002-1.0 by Isabellenhuette is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for BVR-Z-R0002-1.0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4423-BVR-Z-R0002-1.0CT-ND
|
DigiKey | RESISTOR - ISA-WELD SHUNT, 0.000 Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2546 In Stock |
|
$1.5433 / $4.6300 | Buy Now |
|
|
Bristol Electronics | Min Qty: 2 | 9 |
|
$2.2500 / $3.0000 | Buy Now |
|
|
Quest Components | FIXED RESISTOR, 5W, 0.0002OHM, 1% +/-TOL, SURFACE MOUNT, 4026 | 7 |
|
$3.0000 / $4.0000 | Buy Now |
|
|
NAC | RoHS: Compliant Min Qty: 1 Package Multiple: 1400 | 3950 |
|
$1.6100 / $2.0200 | Buy Now |
Part Details for BVR-Z-R0002-1.0

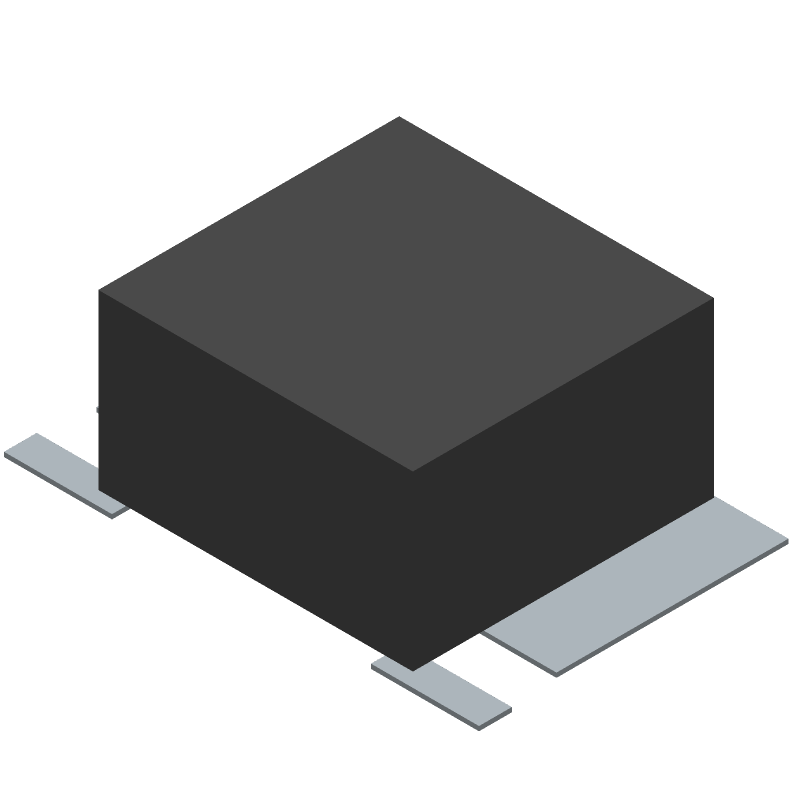

BVR-Z-R0002-1.0 CAD Models
BVR-Z-R0002-1.0 Part Data Attributes
|
|
BVR-Z-R0002-1.0
Isabellenhuette
Buy Now
Datasheet
|
Compare Parts:
BVR-Z-R0002-1.0
Isabellenhuette
Fixed Resistor, 5W, 0.0002ohm, 1% +/-Tol, Surface Mount, 4026, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ISABELLENHUETTE HEUSLER GMBH & CO KG | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Samacsys Manufacturer | Isabellenhütte | |
| Additional Feature | DUAL RATED AS 6 WATTS, PRECISION | |
| Construction | Rectangular | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 170 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 3.6 mm | |
| Package Length | 10.1 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 6.6 mm | |
| Packing Method | TR, 13 Inch | |
| Rated Power Dissipation (P) | 12 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.0002 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 4026 | |
| Surface Mount | YES | |
| Technology | METAL STRIP | |
| Temperature Coefficient | 20 ppm/°C | |
| Terminal Shape | GULL WING | |
| Tolerance | 1% |
