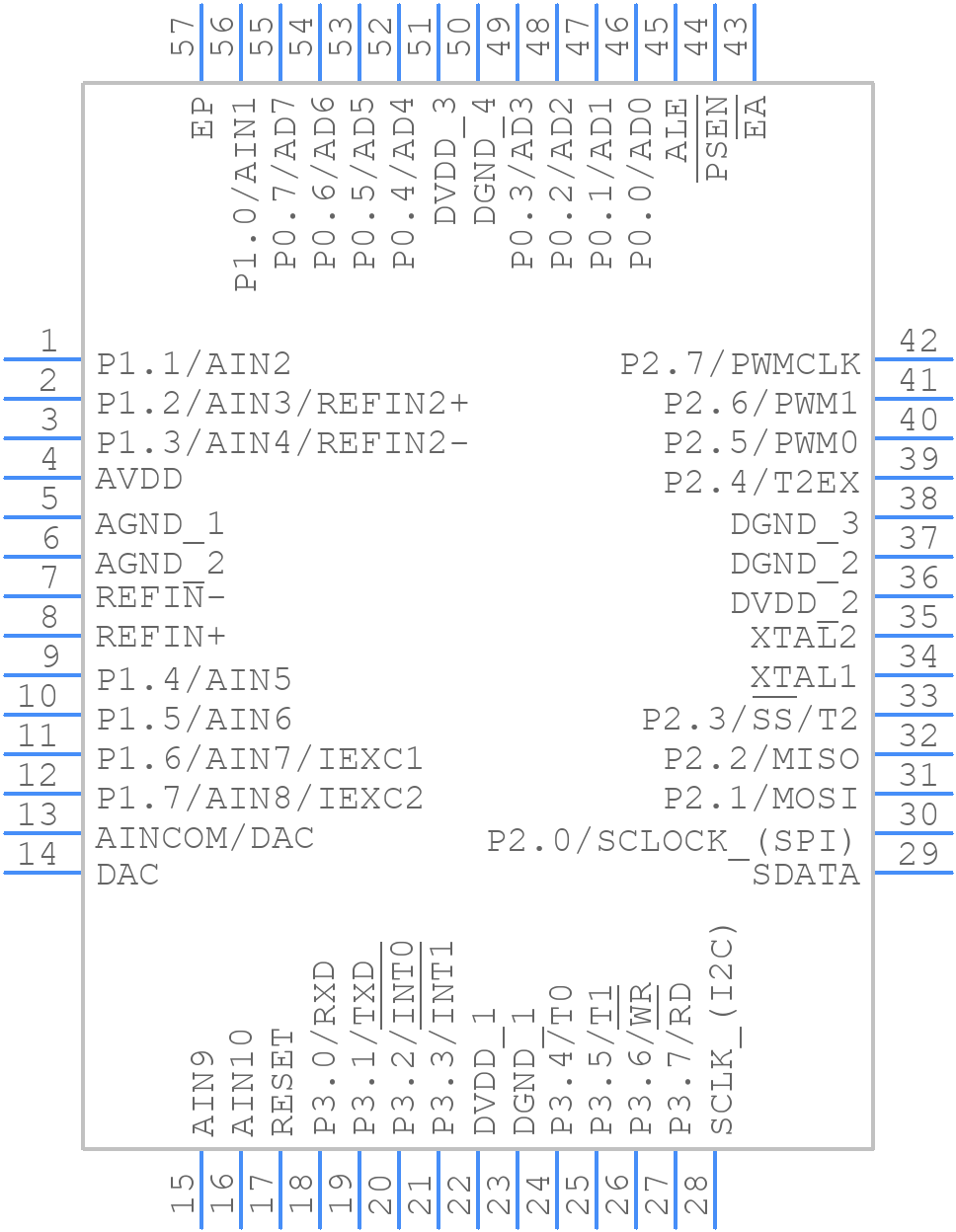

Part Symbol
-

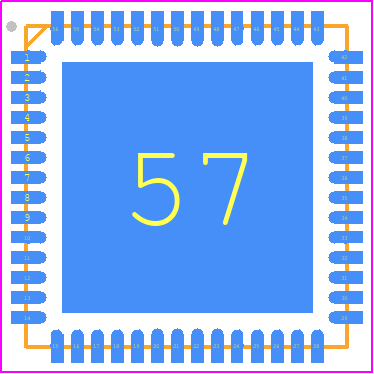

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ADUC845BCPZ62-5 by Analog Devices Inc
Results Overview of ADUC845BCPZ62-5 by Analog Devices Inc
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ADUC845BCPZ62-5 Information
ADUC845BCPZ62-5 by Analog Devices Inc is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for ADUC845BCPZ62-5
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4029593
|
Farnell | 8 BIT MCU, 12.58MHZ, 34I/O, LFCSP-56 RoHS: Compliant Min Qty: 1 Lead time: 11 Weeks, 1 Days Container: Each | 566 |
|
$21.2043 / $27.8114 | Buy Now |
|
DISTI #
505-ADUC845BCPZ62-5-ND
|
DigiKey | IC MCU 8BIT 62KB FLASH 56LFCSP Min Qty: 1 Lead time: 10 Weeks Container: Tray |
836 In Stock |
|
$23.6123 / $29.7400 | Buy Now |
|
DISTI #
584-ADUC845BCPZ62-5
|
Mouser Electronics | 8-bit Microcontrollers - MCU 10 Channel24 BIT DUAL ADC + FAST 8BIT u RoHS: Compliant | 1 |
|
$23.6100 / $29.7400 | Buy Now |
|
DISTI #
V36:1790_06223408
|
Arrow Electronics | MCU 8-bit 8052 CISC 62KB Flash 5V 56-Pin LFCSP EP Tray RoHS: Compliant Min Qty: 26 Package Multiple: 26 Lead time: 10 Weeks Date Code: 2507 | Americas - 66 |
|
$23.5600 / $23.5700 | Buy Now |
|
|
Analog Devices Inc | 10 Channel24 BIT DUAL ADC + FA Package Multiple: 1 | 168 |
|
$17.9500 / $29.7400 | Buy Now |
|
DISTI #
26618896
|
Verical | MCU 8-bit 8052 CISC 62KB Flash 5V 56-Pin LFCSP EP Tray RoHS: Compliant Min Qty: 26 Package Multiple: 26 | Americas - 52 |
|
$23.3643 | Buy Now |
|
DISTI #
88803881
|
Verical | MCU 8-bit 8052 CISC 62KB Flash 5V 56-Pin LFCSP EP Tray RoHS: Compliant Min Qty: 26 Package Multiple: 26 Date Code: 2507 | Americas - 52 |
|
$23.5700 | Buy Now |
|
|
LCSC | 51Series 12.58MHz LFCSP-56(8x8) Microcontrollers (MCU/MPU/SOC) ROHS | 3 |
|
$28.6488 / $30.2115 | Buy Now |
Part Details for ADUC845BCPZ62-5
ADUC845BCPZ62-5 CAD Models
ADUC845BCPZ62-5 Part Data Attributes
|
|
ADUC845BCPZ62-5
Analog Devices Inc
Buy Now
Datasheet
|
Compare Parts:
ADUC845BCPZ62-5
Analog Devices Inc
MicroConverter® Multichannel 24-/16-Bit ADCs with Embedded 62 kB Flash and Single-Cycle MCU
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ANALOG DEVICES INC | |
| Part Package Code | QFN | |
| Package Description | 8 X 8 MM, LEAD FREE, MO-220-VLLD-2, LFCSP-56 | |
| Pin Count | 56 | |
| Manufacturer Package Code | CP-56-11 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Analog Devices | |
| Has ADC | YES | |
| Address Bus Width | 24 | |
| Bit Size | 8 | |
| Clock Frequency-Max | 0.032 MHz | |
| DAC Channels | YES | |
| DMA Channels | NO | |
| External Data Bus Width | 8 | |
| JESD-30 Code | S-XQCC-N56 | |
| JESD-609 Code | e3 | |
| Length | 8 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 32 | |
| Number of Terminals | 56 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | UNSPECIFIED | |
| Package Code | HVQCCN | |
| Package Shape | SQUARE | |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1 mm | |
| Speed | 12.58 MHz | |
| Supply Voltage-Max | 5.25 V | |
| Supply Voltage-Min | 4.75 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 8 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
Alternate Parts for ADUC845BCPZ62-5
This table gives cross-reference parts and alternative options found for ADUC845BCPZ62-5. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of ADUC845BCPZ62-5, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| ADUC845BCP8-5 | Analog Devices Inc | Check for Price | IC 8-BIT, FLASH, 12.58 MHz, MICROCONTROLLER, QCC56, 8 X 8 MM, MO-220-VLLD-2, LFCSP-56, Microcontroller | ADUC845BCPZ62-5 vs ADUC845BCP8-5 |
| ADUC845BCP62-5 | Analog Devices Inc | Check for Price | IC 8-BIT, FLASH, 12.58 MHz, MICROCONTROLLER, QCC56, 8 X 8 MM, MO-220-VLLD-2, LFCSP-56, Microcontroller | ADUC845BCPZ62-5 vs ADUC845BCP62-5 |
| ADUC845BCPZ8-5 | Analog Devices Inc | Check for Price | ADUC845BCPZ8-5 | ADUC845BCPZ62-5 vs ADUC845BCPZ8-5 |
ADUC845BCPZ62-5 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep analog and digital traces separate, and use a common mode filter to reduce noise.
-
Use a thermocouple or RTD sensor with a high accuracy amplifier, and calibrate the system to compensate for any offsets or non-linearities. Also, ensure good thermal contact between the sensor and the device.
-
The maximum allowed voltage on the analog input pins is VCC + 0.3V, but it's recommended to keep it within VCC to ensure accurate conversions.
-
Use a low-pass filter on the analog inputs, add a ferrite bead or common mode choke to the power supply lines, and ensure good shielding and grounding of the PCB.
-
The recommended clock frequency is 16.78 MHz, but it can operate up to 20 MHz. However, higher clock frequencies may increase power consumption and noise.
