Relays / Special Relays / 8-1415053-1
Datasheets

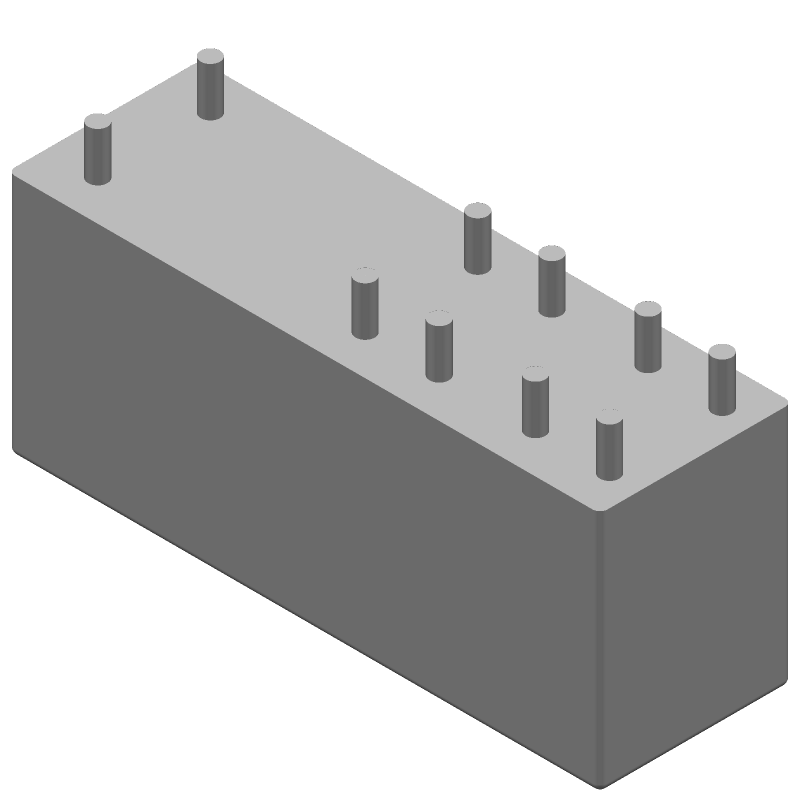

8-1415053-1 by: TE Connectivity

SPECIAL RELAY-SAFETY RELAY, 4PST, MOMENTARY, 0.067A (COIL), 12VDC (COIL), 800mW (COIL), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

Part Details for 8-1415053-1 by TE Connectivity

Results Overview of 8-1415053-1 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

8-1415053-1 Information

8-1415053-1 by TE Connectivity is a Special Relay.
Special Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for 8-1415053-1

Part # Distributor Description Stock Price Buy
DISTI # 10AK3109
Newark Safety Relay, 4Pst, Momentary, 0.067A (Coil) |Potter&brumfield Te Connectivity 8-1415053-1 RoHS: Not Compliant Min Qty: 10 Package Multiple: 1 Date Code: 0 Container: Bulk 47
  • 10 $24.9200
  • 25 $23.8500
  • 50 $22.3800
  • 100 $21.4200
  • 250 $19.8500
$19.8500 / $24.9200 Buy Now
DISTI # 8-1415053-1
Avnet Americas Safety Relay, 12 VDC, 3PST-NO, SPST-NC, SR4 D/M, Through Hole, 8 A, Solder - Rail/Tube (Alt: 8-1415053-1) RoHS: Compliant Min Qty: 250 Package Multiple: 250 Lead time: 33 Weeks, 4 Days Container: Tube 0
  • 250 $17.4675
  • 500 $17.0145
  • 1,000 $15.0867
  • 1,500 $14.7246
  • 2,000 $14.4353
$14.4353 / $17.4675 Buy Now
DISTI # AMP8-1415053-1
Heilind Electronics SR4M4012 Americas - 0 in Stock
  • 1 $22.3478
  • 10 $21.6806
  • 25 $20.7514
$20.7514 / $22.3478 Buy Now
Onlinecomponents.com SR4M4012 RoHS: Compliant 77 In Stock
  • 10 $18.8200
  • 30 $18.1400
  • 50 $17.6300
  • 100 $16.7200
  • 250 $16.4000
  • 500 $16.3200
  • 1,000 $16.2400
$16.2400 / $18.8200 Buy Now
DISTI # 88110464
Verical Power Relay 12VDC 8A 3PST-NO/SPST-NC(40.1mm 13.1mm 16.6mm) THT RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2435 Americas - 1227
  • 1 $14.4283
  • 10 $14.0035
  • 25 $13.8305
  • 100 $13.6135
  • 500 $13.4068
  • 1,000 $13.1537
$13.1537 / $14.4283 Buy Now
DISTI # 88143537
Verical Power Relay 12VDC 8A 3PST-NO/SPST-NC(40.1mm 13.1mm 16.6mm) THT RoHS: Compliant Min Qty: 10 Package Multiple: 10 Date Code: 2201 Americas - 140
  • 10 $15.9870
  • 30 $14.9136
  • 50 $14.6420
  • 100 $14.0241
$14.0241 / $15.9870 Buy Now
DISTI # 87330836
Verical Power Relay 12VDC 8A 3PST-NO/SPST-NC(40.1mm 13.1mm 16.6mm) THT RoHS: Compliant Min Qty: 3 Package Multiple: 1 Americas - 99
  • 3 $28.6020
  • 5 $25.4240
  • 30 $23.8420
  • 100 $22.5680
  • 500 $22.0640
$22.0640 / $28.6020 Buy Now
DISTI # 16332551
Verical Power Relay 12VDC 8A 3PST-NO/SPST-NC(40.1mm 13.1mm 16.6mm) THT RoHS: Compliant Min Qty: 10 Package Multiple: 10 Americas - 30
  • 10 $19.7800
  • 20 $19.4200
  • 40 $19.0700
$19.0700 / $19.7800 Buy Now
DISTI # 65675916
Verical Power Relay 12VDC 8A 3PST-NO/SPST-NC(40.1mm 13.1mm 16.6mm) THT RoHS: Compliant Min Qty: 10 Package Multiple: 10 Americas - 10
  • 10 $19.7800
  • 20 $19.4200
  • 40 $19.0700
$19.0700 / $19.7800 Buy Now
Bristol Electronics   30
RFQ
Quest Components   24
  • 1 $32.6700
  • 9 $31.0365
  • 17 $29.4030
$29.4030 / $32.6700 Buy Now
DISTI # 8-1415053-1
TTI Safety Relays SR4M4012 Min Qty: 250 Package Multiple: 10 Container: Tube Americas - 0
  • 250 $16.6300
  • 500 $16.3000
  • 1,000 $14.8700
$14.8700 / $16.6300 Buy Now
DISTI # SR4M4012
TME Relay: electromagnetic, 3PST-NO + SPST-NC, Ucoil: 12VDC, 8A, SR4 Min Qty: 1 132
  • 1 $20.7700
  • 5 $18.4700
  • 30 $17.3200
  • 100 $16.3900
  • 500 $15.0100
$15.0100 / $20.7700 Buy Now
DISTI # 8-1415053-1
IBS Electronics 8-1415053-1 by TE Connectivity is a high-performance relay with a 4PDT configuration, 12V DC coil voltage, and 10A contact current rating, ideal for industrial and automation applications. Min Qty: 10 Package Multiple: 1 77
  • 10 $15.3875
  • 20 $19.4250
  • 50 $14.8250
  • 100 $14.5500
  • 250 $18.3500
  • 500 $21.2160
  • 1,000 $21.1120
  • 5,000 $14.5000
  • 10,000 $14.5000
$14.5000 / $21.2160 Buy Now
DISTI # AMP8-1415053-1
Interstate Connecting Components SR4M4012 0
  • 1 $22.3478
  • 10 $21.6806
  • 25 $20.7514
$20.7514 / $22.3478 Buy Now
DISTI # 000000000002361743
Sager Safety Relays SR4M4012 Min Qty: 250 0
  • 250 $22.4200
$22.4200 Buy Now
DISTI # 8-1415053-1
Avnet Abacus Safety Relay 12 VDC 3PSTNO SPSTNC SR4 DM Through Hole 8 A Solder (Alt: 8-1415053-1) RoHS: Compliant Min Qty: 10 Package Multiple: 10 Lead time: 15 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 8-1415053-1
Avnet Abacus Safety Relay 12 VDC 3PSTNO SPSTNC SR4 DM Through Hole 8 A Solder (Alt: 8-1415053-1) RoHS: Compliant Min Qty: 10 Package Multiple: 10 Lead time: 22 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics SR4M4012 RoHS: Compliant 77 In Stock
  • 10 $18.8200
  • 30 $18.1400
  • 50 $17.6300
  • 100 $16.7200
  • 250 $16.4000
  • 500 $16.3200
  • 1,000 $16.2400
$16.2400 / $18.8200 Buy Now

Part Details for 8-1415053-1

8-1415053-1 Part Data Attributes

Parametric Data
8-1415053-1 TE Connectivity
Buy Now Datasheet
Compare Parts:
8-1415053-1 TE Connectivity SPECIAL RELAY-SAFETY RELAY, 4PST, MOMENTARY, 0.067A (COIL), 12VDC (COIL), 800mW (COIL), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Transferred
Ihs Manufacturer TYCO ELECTRONICS CII
Package Description ROHS COMPLIANT
Reach Compliance Code compliant
ECCN Code EAR99
Samacsys Manufacturer TE Connectivity
Body Breadth 13 mm
Body Height 16.5 mm
Body Length or Diameter 40 mm
Coil Current(AC)-Max 0.067 A
Coil Current(DC)-Max 0.067 A
Coil Operate Voltage(DC) 9 V
Coil Power 800 mW
Coil Release Voltage(DC) 1.2 V
Coil Resistance 180 Ω
Coil Voltage(DC)-Max 12 V
Coil Voltage-Nom 12 V
Coil/Input Supply Type DC
Contact (AC) Max Rating R Load 8A@240VAC
Contact Current(AC)-Max 8 A
Contact Current(DC)-Max 8 A
Contact Resistance 100 mΩ
Contact Voltage(AC)-Max 400 V
Dielectric Strength Between Coil and Contacts 4000 Vrms
Dielectric Strength Between Open Contacts 1500 Vrms
End Contact Material SILVER TIN OXIDE
Input Switching Control Type Random
Mounting Feature PANEL MOUNT
Number of Terminals 10
Operating Temperature-Max 70 °C
Operating Temperature-Min -25 °C
Packing Method BOX; TUBE
Physical Dimension 40mm x 13mm x 16.5mm
Reference Standard EN; IEC; UL; VDE
Relay Action MOMENTARY
Relay Function 4PST
Relay Type SAFETY RELAY
Sealing RT3
Surface Mount NO
Terminal Length 0.0032994665989331978 inch
Termination Type SOLDER/QUICK CONNECT
Weight 30 g
