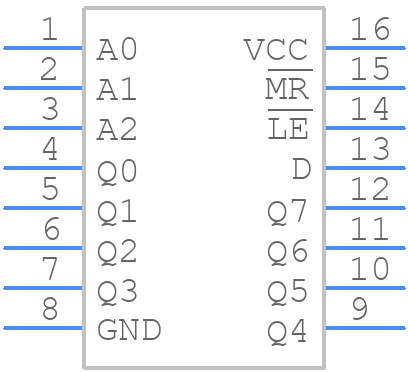

Part Symbol
-

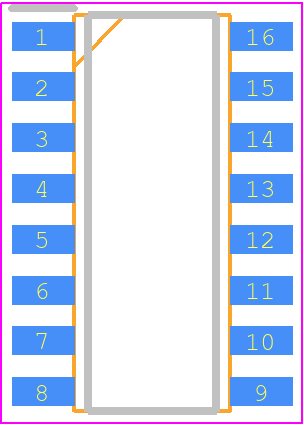

Footprint
-

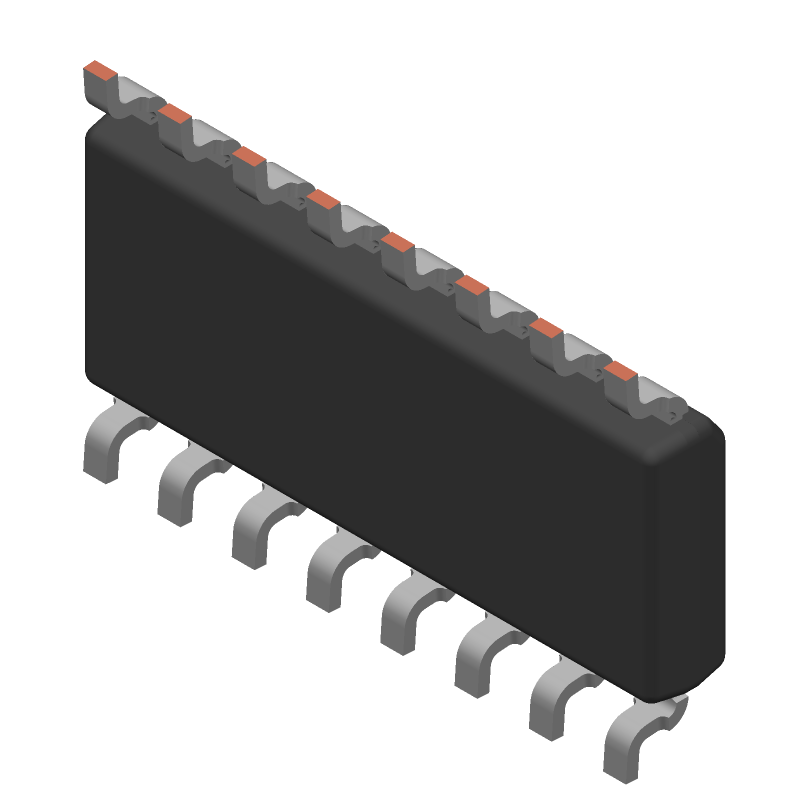

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 74HC259D,653 by Nexperia
Results Overview of 74HC259D,653 by Nexperia
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Financial Technology (Fintech)
Computing and Data Storage
Telecommunications
Communication and Networking
74HC259D,653 Information
74HC259D,653 by Nexperia is an FF/Latch.
FF/Latches are under the broader part category of Logic Components.
Digital logic governs the behavior of signals in electronic circuits, enabling complex decisions based on simple binary inputs (yes/no). Logic components perform operations from these signals. Read more about Logic Components on our Logic part category page.
Price & Stock for 74HC259D,653
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
73K2210
|
Newark | Ic, 74Hc Cmos, Smd, 74Hc259, Soic16, Logic Family/Base Number:74Hc259, Latch Type:Addressable, Ic Output Type:Non Inverted, Propagation Delay:18Ns, Output Current:25Ma, Logic Case Style:Soic, No. Of Pins:16Pins, Supply Voltage Rohs Compliant: Yes |Nexperia 74HC259D,653 RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 6570 |
|
$0.1620 / $0.3600 | Buy Now |
|
DISTI #
93X4887
|
Newark | Latch, Addressable, 8Bit, Soic-16, Logic Family/Base Number:74Hc259, Latch Type:Addressable, Ic Output Type:Non Inverted, Propagation Delay:-, Output Current:25Ma, Logic Case Style:Soic, No. Of Pins:16Pins, Supply Voltage Min:2V, Rohs Compliant: Yes |Nexperia 74HC259D,653 RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 1 Container: Reel | 0 |
|
$0.1410 / $0.1520 | Buy Now |
|
DISTI #
1727-6323-1-ND
|
DigiKey | IC D-TYPE ADDR 1:8 16-SO Min Qty: 1 Lead time: 8 Weeks Container: Digi-Reel®, Tape & Reel (TR), Cut Tape (CT) |
3384 In Stock |
|
$0.1309 / $0.3400 | Buy Now |
|
DISTI #
74HC259D,653
|
Avnet Americas | Latch, HC Family, 74HC259, Addressable, Non Inverted, 25 mA, SOIC - Tape and Reel (Alt: 74HC259D,653) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 8 Weeks, 0 Days Container: Reel | 35000 |
|
$0.1272 | Buy Now |
|
DISTI #
771-74HC259D-T
|
Mouser Electronics | Latches 8-bit addressable latch RoHS: Compliant | 12774 |
|
$0.1320 / $0.3400 | Buy Now |
|
DISTI #
V72:2272_06493046
|
Arrow Electronics | Latch Addressable Push-Pull 8-CH D-Type 16-Pin SO T/R RoHS: Compliant Min Qty: 683 Package Multiple: 1 Lead time: 8 Weeks Date Code: 2234 Container: Cut Strips | Americas - 3339 |
|
$0.1299 / $0.1457 | Buy Now |
|
DISTI #
E02:0323_00016100
|
Arrow Electronics | Latch Addressable Push-Pull 8-CH D-Type 16-Pin SO T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 8 Weeks Date Code: 2515 | Europe - 2500 |
|
$0.1105 / $0.1317 | Buy Now |
|
|
Future Electronics | 74HC Series 6 V 8-Bit Addressable Latch Surface Mount - SOIC-16 RoHS: Compliant pbFree: Yes Min Qty: 2500 Package Multiple: 2500 Lead time: 8 Weeks Container: Reel | 5000Reel |
|
$0.1070 / $0.1110 | Buy Now |
|
|
Future Electronics | 74HC Series 6 V 8-Bit Addressable Latch Surface Mount - SOIC-16 RoHS: Compliant pbFree: Yes Min Qty: 7500 Package Multiple: 2500 Lead time: 8 Weeks Container: Reel | 0Reel |
|
$0.1070 / $0.1110 | Buy Now |
|
DISTI #
89535730
|
Verical | Latch Addressable Push-Pull 8-CH D-Type 16-Pin SO T/R RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Date Code: 2515 | Americas - 2500 |
|
$0.1098 / $0.1308 | Buy Now |
Part Details for 74HC259D,653
74HC259D,653 CAD Models
74HC259D,653 Part Data Attributes
|
|
74HC259D,653
Nexperia
Buy Now
Datasheet
|
Compare Parts:
74HC259D,653
Nexperia
74HC259; 74HCT259 - 8-bit addressable latch@en-us SOP 16-Pin
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | NEXPERIA | |
| Part Package Code | SOP | |
| Package Description | SOP-16 | |
| Pin Count | 16 | |
| Manufacturer Package Code | SOT109-1 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 8 Weeks | |
| Date Of Intro | 1993-11-01 | |
| Samacsys Manufacturer | Nexperia | |
| Additional Feature | 1:8 DMUX FOLLOWED BY LATCH | |
| Family | HC/UH | |
| JESD-30 Code | R-PDSO-G16 | |
| JESD-609 Code | e4 | |
| Length | 9.9 mm | |
| Logic IC Type | D LATCH | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Polarity | TRUE | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR, 13 INCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Propagation Delay (tpd) | 255 ns | |
| Seated Height-Max | 1.75 mm | |
| Supply Voltage-Max (Vsup) | 6 V | |
| Supply Voltage-Min (Vsup) | 2 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trigger Type | LOW LEVEL | |
| Width | 3.9 mm |
Alternate Parts for 74HC259D,653
This table gives cross-reference parts and alternative options found for 74HC259D,653. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 74HC259D,653, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 74HC174D,653 | Nexperia | $0.1992 | 74HC174; 74HCT174 - Hex D-type flip-flop with reset; positive-edge trigger@en-us SOP 16-Pin | 74HC259D,653 vs 74HC174D,653 |
| MC74HC174ADTR2G | onsemi | $0.2097 | Hex D Flip-Flop with Clock, TSSOP-16, 2500-REEL | 74HC259D,653 vs MC74HC174ADTR2G |
| 74HC112D,653 | Nexperia | $0.2686 | 74HC_HCT112_3 - Dual JK flip-flop with set and reset; negative-edge trigger@en-us SOP 16-Pin | 74HC259D,653 vs 74HC112D,653 |
| 74HC75D,653 | Nexperia | $0.3401 | 74HC75 - Quad bistable transparant latch@en-us SOP 16-Pin | 74HC259D,653 vs 74HC75D,653 |
| MC74AC259DG | onsemi | $0.8783 | 8-Bit Addressable Latch, SOIC 16 LEAD, 48-TUBE | 74HC259D,653 vs MC74AC259DG |
| 74HC175PW,118 | Nexperia | Check for Price | 74HC175; 74HCT175 - Quad D-type flip-flop with reset; positive-edge trigger@en-us TSSOP 16-Pin | 74HC259D,653 vs 74HC175PW,118 |
| 74HCT112D,653 | Nexperia | Check for Price | 74HC_HCT112_3 - Dual JK flip-flop with set and reset; negative-edge trigger@en-us SOP 16-Pin | 74HC259D,653 vs 74HCT112D,653 |
| 74HCT173D,653 | Nexperia | Check for Price | 74HC173; 74HCT173 - Quad D-type flip-flop; positive-edge trigger; 3-state@en-us SOP 16-Pin | 74HC259D,653 vs 74HCT173D,653 |
| MC74HC175ADTR2G | onsemi | Check for Price | Quad D Flip-Flop with Common Clock and Reset, TSSOP-16, 2500-REEL | 74HC259D,653 vs MC74HC175ADTR2G |
| 74HCT112PW,118 | Nexperia | Check for Price | 74HC_HCT112_3 - Dual JK flip-flop with set and reset; negative-edge trigger@en-us TSSOP 16-Pin | 74HC259D,653 vs 74HCT112PW,118 |
74HC259D,653 Frequently Asked Questions (FAQ)
-
The maximum frequency of operation for the 74HC259D,653 is 100 MHz.
-
Yes, the 74HC259D,653 is compatible with 5V systems, but it's recommended to use a voltage regulator to ensure a stable 5V supply.
-
To ensure signal integrity, use a low-impedance PCB design, keep signal traces short, and use decoupling capacitors to reduce noise and ringing.
-
The power consumption of the 74HC259D,653 is typically around 10 μA per input, but this can vary depending on the operating frequency and load conditions.
-
The 74HC259D,653 is rated for operation up to 125°C, but it's recommended to derate the device for high-temperature applications to ensure reliability.
