71922-114LF Information
71922-114LF by Amphenol Communications Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| 10054040-114LF | Amphenol Communications Solutions | 10054040-114LF-B/S II JUMPER DR RA ASSY | |
| 71922-114LF | Amphenol Communications Solutions | Quickie® Eject Latch connector, 2.54mm(0.100in), Shrouded Header, Through Hole, Right Angle, Double Row, 14 Positions | |
| 71922-108LF | Amphenol Communications Solutions | Quickie®, Wire to Board connectors, Double Row, 8 Positions, 2.54 mm (0.1 in.), Right Angle, Eject Latch Header 0.76 um (30 u\\.) Gold or GXT™ Plating |
Price & Stock for 71922-114LF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
57K8360
|
Newark | Wire-Board Connector, Header, 14 Position, 2.54Mm, Connector Systems:Wire-To-Board, Pitch Spacing:2.54Mm, No. Of Rows:2Rows, No. Of Contacts:14Contacts, Contact Termination Type:Through Hole, Product Range:Fci Quickie Series Rohs Compliant: Yes |Amphenol Communications Solutions 71922-114LF RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 1 |
|
$0.8980 / $1.8900 | Buy Now |
|
|
Onlinecomponents.com | Conn Ejector Header HDR 14 POS 2.54mm Solder RA Side Entry Thru-Hole Tube RoHS: Compliant |
1499 In Stock |
|
$0.8500 / $1.2670 | Buy Now |
|
DISTI #
71922-114LF
|
TME | Connector: IDC, socket, male, Quickie, 2.54mm, PIN: 14, with ejector Min Qty: 1 | 2340 |
|
$0.7500 / $1.6500 | Buy Now |
|
DISTI #
71922-114LF
|
IBS Electronics | 71922-114LF by Amphenol ICC / FCI is a 14-position, 2.54mm pitch, vertical card edge connector, designed for secure PCB connections, with gold-plated contacts for enhanced conductivity and durability. Min Qty: 25 Package Multiple: 1 | 1499 |
|
$1.1050 / $1.6471 | Buy Now |
|
DISTI #
71922-114LF
|
IBS Electronics | CONN EJECTOR HEADER HDR 14 POS 2.54MM SOLDER RA THRU-HOLE TUBE Min Qty: 780 Package Multiple: 1 | 0 |
|
$1.0465 / $1.0725 | Buy Now |
|
|
Master Electronics | Conn Ejector Header HDR 14 POS 2.54mm Solder RA Side Entry Thru-Hole Tube RoHS: Compliant |
1499 In Stock |
|
$0.8500 / $1.2670 | Buy Now |
Part Details for 71922-114LF

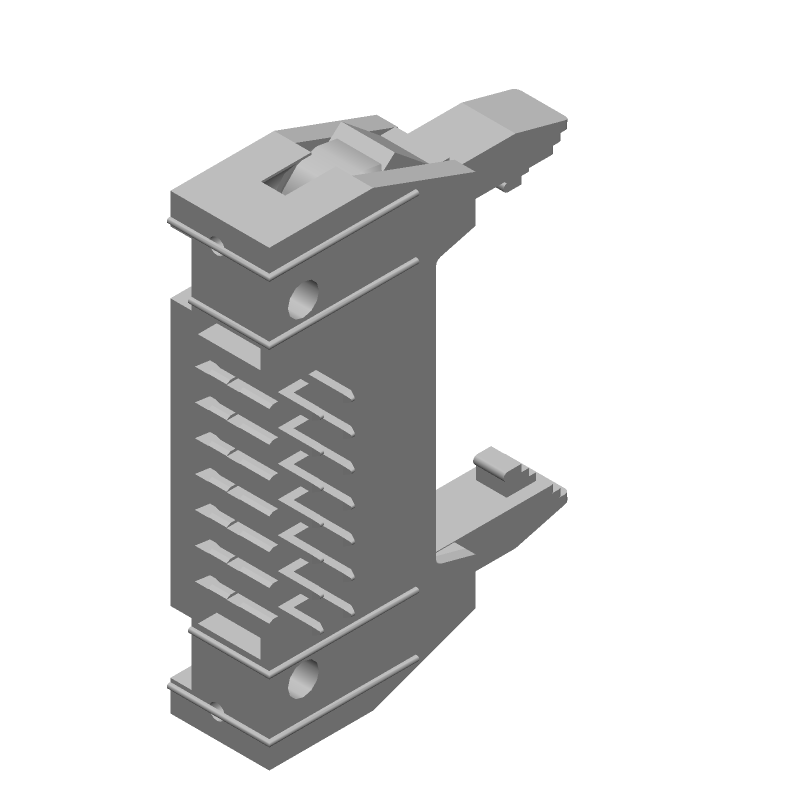

71922-114LF CAD Models
71922-114LF Part Data Attributes
|
|
71922-114LF
Amphenol Communications Solutions
Buy Now
Datasheet
|
Compare Parts:
71922-114LF
Amphenol Communications Solutions
Quickie® Eject Latch connector, 2.54mm(0.100in), Shrouded Header, Through Hole, Right Angle, Double Row, 14 Positions
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMPHENOL COMMUNICATIONS SOLUTIONS | |
| Pin Count | 14 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.69.40.40 | |
| Samacsys Manufacturer | Amphenol Communications Solutions | |
| Body Breadth | 0.339 inch | |
| Body Depth | 0.685 inch | |
| Body Length | 2.16 inch | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | MATTE TIN OVER NICKEL | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Style | SQ PIN-SKT | |
| DIN Conformance | NO | |
| Dielectric Withstanding Voltage | 707VAC V | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insulation Resistance | 105000000 Ω | |
| Insulator Color | GRAY | |
| Insulator Material | GLASS FILLED POLYETHYLENE | |
| JESD-609 Code | e3 | |
| MIL Conformance | NO | |
| Mating Contact Pitch | 0.1 inch | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LATCH & EJECT | |
| Mounting Option 2 | LOCKING | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -65 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Row Spacing | 2.54 mm | |
| Plating Thickness | 30u inch | |
| Rated Current (Signal) | 3 A | |
| Reference Standard | UL | |
| Terminal Length | 0.114 inch | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 14 | |
| UL Flammability Code | 94V-0 |
Alternate Parts for 71922-114LF
This table gives cross-reference parts and alternative options found for 71922-114LF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 71922-114LF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 71922-114LF | Amphenol FCi | $0.8799 | Board Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Latch, Gray Insulator, Receptacle, ROHS COMPLIANT | 71922-114LF vs 71922-114LF |
| 71922-114 | Amphenol FCi | Check for Price | Board Connector, 14 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Gray Insulator, Receptacle | 71922-114LF vs 71922-114 |
71922-114LF Frequently Asked Questions (FAQ)
-
The recommended torque for mating and unmating the 71922-114LF connector is 0.5-1.5 Nm (4-12 in-lbs). However, it's essential to consult the specific application requirements and follow the manufacturer's guidelines.
-
Yes, the 71922-114LF connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for applications such as railway, aerospace, and industrial equipment.
-
The 71922-114LF connector is designed to operate in a wide temperature range of -40°C to 125°C and can withstand humid environments. However, it's essential to ensure that the connector is properly sealed and mated to maintain its environmental resistance.
-
The 71922-114LF connector is rated for a minimum of 500 mating cycles. However, the actual number of mating cycles may vary depending on the application, usage, and environmental conditions.
-
The 71922-114LF connector is designed to be compatible with other connectors that meet the same industry standards (e.g., MIL-DTL-22992). However, it's essential to verify compatibility with specific connectors from other manufacturers before use.
