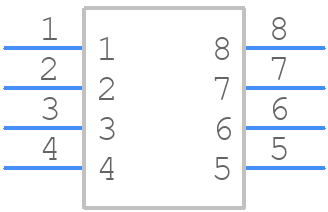

Part Symbol
-

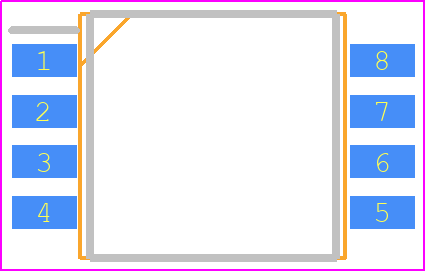

Footprint
-

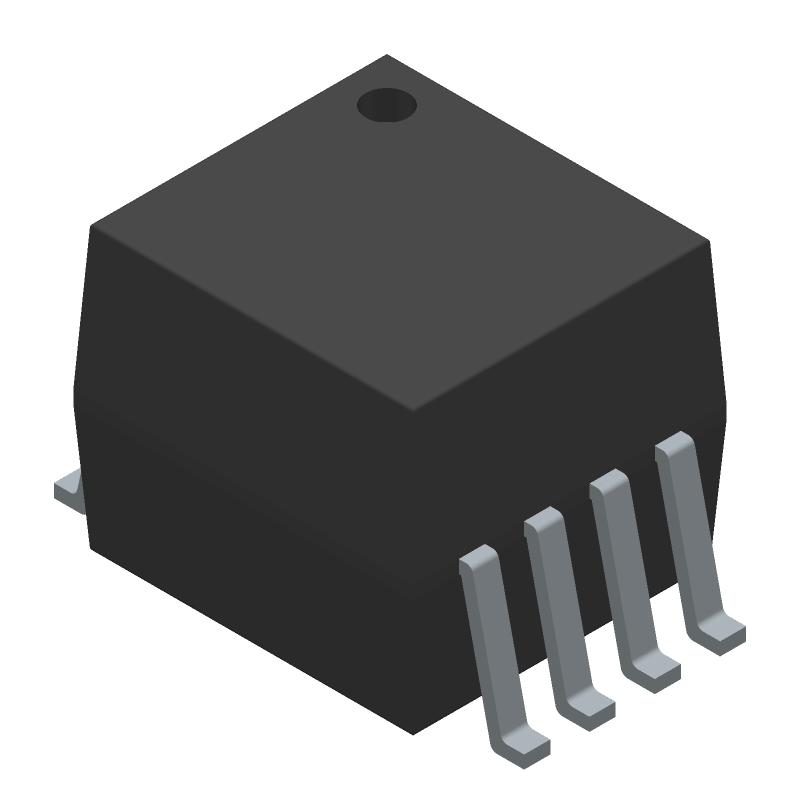

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 23Z104SMNLT by Pulse Electronics Corporation
Results Overview of 23Z104SMNLT by Pulse Electronics Corporation
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
23Z104SMNLT Information
23Z104SMNLT by Pulse Electronics Corporation is a Pulse/Datacom Transformer.
Pulse/Datacom Transformers are under the broader part category of Transformers.
Transformers are passive components that transfer electrical energy between circuits and adjust voltage levels through electromagnetic induction. They are crucial for applications like power transmission and reducing voltage for low-voltage devices. Read more about Transformers on our Transformers part category page.
Price & Stock for 23Z104SMNLT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
55AK3652
|
Newark | Choke, sgl, 4-W, 68Uh, ,smt, tr Npb/T&r |Pulse 23Z104SMNLT RoHS: Not Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$1.6500 / $2.1100 | Buy Now |
|
DISTI #
553-3767-1-ND
|
DigiKey | CMC 4LN SMD Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
1692 In Stock |
|
$1.5919 / $3.0000 | Buy Now |
|
DISTI #
23Z104SMNLT
|
Avnet Americas | Telecom Transformer 0.2Ohm Prim. DCR Surface Mount - Tape and Reel (Alt: 23Z104SMNLT) RoHS: Compliant Min Qty: 1500 Package Multiple: 750 Lead time: 5 Weeks, 5 Days Container: Reel | 0 |
|
$1.4880 / $1.5791 | Buy Now |
|
DISTI #
673-23Z104SMNLT
|
Mouser Electronics | Common Mode Chokes / Filters SMD LAN Choke 68uH .2Ohms 4-Port RoHS: Compliant | 1374 |
|
$1.5900 / $3.0000 | Buy Now |
|
|
Onlinecomponents.com | Common Mode Chokes / Filters SMD LAN Choke 68uH .2Ohms 4-Port RoHS: Compliant |
750 In Stock |
|
$1.5800 / $3.4600 | Buy Now |
|
|
Onlinecomponents.com | Surface Mount Common Mode Chokes RoHS: Compliant | 0 |
|
$1.5500 / $1.8200 | Buy Now |
|
DISTI #
76060569
|
Verical | Common Mode Chokes Quad 68uH 25dB 0.2Ohm DCR SMD T/R RoHS: Compliant Min Qty: 20 Package Multiple: 10 Date Code: 2312 | Americas - 750 |
|
$2.4315 / $4.4993 | Buy Now |
|
DISTI #
23Z104SMNLT
|
TTI | Common Mode Chokes / Filters SMD LAN Choke 68uH .2Ohms 4-Port pbFree: Pb-Free Min Qty: 1500 Package Multiple: 750 Container: Reel | Americas - 0 |
|
$2.1200 / $2.3000 | Buy Now |
|
DISTI #
000000000002153134
|
Sager | Common Mode Chokes / Filters SMD LAN Choke 68uH .2Ohms 4-Port Min Qty: 1500 | 0 |
|
$1.6800 | Buy Now |
|
DISTI #
23Z104SMNLT
|
Avnet Abacus | Telecom Transformer 02Ohm Prim DCR Surface Mount - Tape and Reel (Alt: 23Z104SMNLT) RoHS: Compliant Min Qty: 1500 Package Multiple: 750 Lead time: 17 Weeks, 0 Days Container: Reel | Abacus - 0 |
|
Buy Now |
Part Details for 23Z104SMNLT
23Z104SMNLT CAD Models
23Z104SMNLT Part Data Attributes
|
|
23Z104SMNLT
Pulse Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
23Z104SMNLT
Pulse Electronics Corporation
Datacom Transformer, GENERAL PURPOSE Application(s), 1:1, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | PULSE ELECTRONICS CORP | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Factory Lead Time | 5 Weeks, 5 Days | |
| Samacsys Manufacturer | Pulse Electronics | |
| Additional Feature | HEIGHT DIMENSION INCLUDES TERMINAL ALSO | |
| Application | GENERAL PURPOSE | |
| Height | 5.588 mm | |
| Isolation Voltage | 500 V | |
| Length | 15.73 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Functions | 1 | |
| Packing Method | TAPE & REEL | |
| Primary Inductance | 68 µH | |
| Surface Mount | YES | |
| Transformer Type | DATACOM TRANSFORMER | |
| Turns Ratio (Np:Ns) | 1:1 | |
| Width | 6.223 mm |
23Z104SMNLT Frequently Asked Questions (FAQ)
-
A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. The datasheet provides a suggested PCB layout, but it's essential to consult with a layout expert to ensure optimal performance.
-
The 23Z104SMNLT is designed to minimize EMI and high-frequency noise. It features a shielded construction and a ferrite core, which helps to reduce electromagnetic radiation. However, additional shielding and filtering may be necessary depending on the specific application.
-
The 23Z104SMNLT is rated for operation from -40°C to +125°C. However, derating may be necessary for high-temperature applications. Consult the datasheet for specific derating guidelines.
-
Yes, the 23Z104SMNLT is designed for high-reliability applications. It meets the requirements of various industry standards, including AEC-Q200 and IEC 62211. However, additional testing and validation may be necessary for specific applications.
-
The 23Z104SMNLT should be stored in a dry, cool place, away from direct sunlight and moisture. Handling should be done with anti-static precautions, and the device should be protected from mechanical stress and vibration.
