225974-1 Information
225974-1 by TE Connectivity is an RF BNC Connector.
RF BNC Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Price & Stock for 225974-1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
4323410
|
Farnell | RF-COAX CONNECTORS RoHS: Not Compliant Min Qty: 2 Lead time: 1 Weeks, 2 Days Container: Each | 368 |
|
$53.4174 / $56.4943 | Buy Now |
|
|
Onlinecomponents.com | PLUG, RT ANGLE, DUAL CRIMP BNC |
459 Partner Stock |
|
$23.7600 / $38.0200 | Buy Now |
|
DISTI #
11690982
|
Verical | Conn BNC 0Hz to 4GHz 50Ohm Crimp RA Cable Mount PL Gold Over Nickel Carton RoHS: Not Compliant Min Qty: 2 Package Multiple: 1 | Americas - 365 |
|
$35.6700 / $38.5200 | Buy Now |
|
DISTI #
65672068
|
Verical | Conn BNC 0Hz to 4GHz 50Ohm Crimp RA Cable Mount PL Gold Over Nickel Carton RoHS: Not Compliant Min Qty: 2 Package Multiple: 1 | Americas - 94 |
|
$35.6700 / $38.5200 | Buy Now |
|
|
Quest Components | 4 |
|
$47.9360 | Buy Now | |
|
DISTI #
225974-1
|
TTI | RF Connectors / Coaxial Connectors D.C. R.A. PLUG 50 Min Qty: 100 Package Multiple: 100 Container: Bulk | Americas - 0 |
|
Buy Now | |
|
DISTI #
000000000000664208
|
Sager | RF Connectors / Coaxial Connectors D.C. R.A. PLUG 50 | 0 |
|
Buy Now | |
|
DISTI #
225974-1
|
FDH Electronics | Connector Min Qty: 1 | 463 |
|
Buy Now RFQ | |
|
|
Master Electronics | PLUG, RT ANGLE, DUAL CRIMP BNC |
459 Partner Stock |
|
$23.7600 / $38.0200 | Buy Now |
Part Details for 225974-1

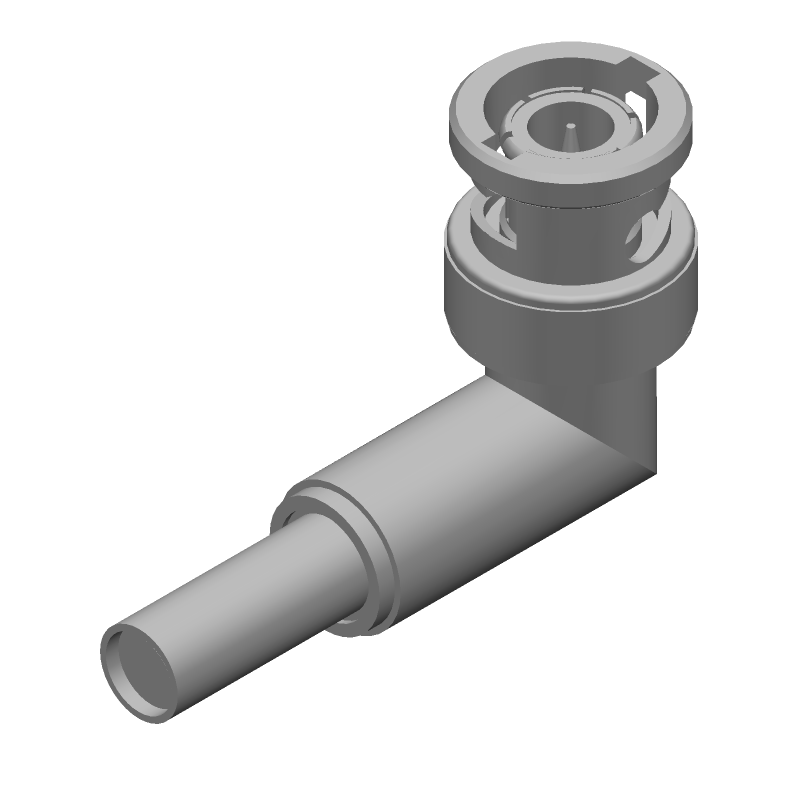

225974-1 CAD Models
225974-1 Part Data Attributes
|
|
225974-1
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
225974-1
TE Connectivity
PLUG, RT ANGLE, DUAL CRIMP BNC
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | APPLICABLE CABLES: RG 58/U; RG 58A/U; RG 58B/U; RG 58C/U, COMPATIBLE CONTACT: 1-331369-6 | |
| Body Depth | 1.046 inch | |
| Body/Shell Style | PLUG | |
| Cable Types | RG 58C, RG 58, RG 58B, RG 58A | |
| Characteristic Impedance | 50 Ω | |
| Connector Type | RF BNC CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Gender | MALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Resistance | 2 mΩ | |
| Contact Style | COAX | |
| Coupling Type | BAYONET | |
| DIN Conformance | NO | |
| Durability | 500 Cycles | |
| EMI Shielded | NO | |
| Empty Shell | NO | |
| Filter Feature | NO | |
| IEC Conformance | NO | |
| Insertion Force-Max | 8.896 N | |
| Insertion Loss | 0.2 dB | |
| Insulation Resistance | 5000000000 Ω | |
| Insulator Material | PTFE | |
| JESD-609 Code | e4 | |
| MIL Conformance | YES | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | RIGHT ANGLE | |
| Mounting Type | CABLE | |
| Number Of Connectors | ONE | |
| Number of Ports | 1 | |
| Operating Frequency-Max | 4 GHz | |
| Operating Temperature-Max | 165 °C | |
| Operating Temperature-Min | -65 °C | |
| Option | GENERAL PURPOSE | |
| Panel Mount | NO | |
| Shell Finish | NICKEL | |
| Shell Material | BRASS | |
| Termination Type | CRIMP | |
| Total Number of Contacts | 1 | |
| VSWR | 1.3 |
