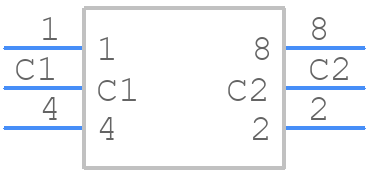

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2-1825013-0 by TE Connectivity
Results Overview of 2-1825013-0 by TE Connectivity
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Renewable Energy
2-1825013-0 Information
2-1825013-0 by TE Connectivity is a Rotary Switch.
Rotary Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for 2-1825013-0
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2-1825013-0
|
Avnet Americas | Switch DIP SP16T 16 Screwdriver 20VAC 20VDC 0.4VA Gull Wing 20000Cycle 2.54mm SMD T/R - Tape and Reel (Alt: 2-1825013-0) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 Lead time: 30 Weeks, 2 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
72032569
|
RS | Switch, Mrd16Str04=7Mm Rot DIP, Bcd Min Qty: 20000 Package Multiple: 1 Container: Bulk | 0 |
|
$6.3400 / $6.8900 | RFQ |
|
DISTI #
2-1825013-0
|
TME | Encoding switch, SMT, Rcont max: 100mΩ, DC load @R: 0.02A/20VDC Min Qty: 20000 | 0 |
|
$2.5400 | RFQ |
|
DISTI #
2-1825013-0
|
Avnet Abacus | Switch DIP SP16T 16 Screwdriver 20VAC 20VDC 04VA Gull Wing 20000Cycle 254mm SMD TR (Alt: 2-1825013-0) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 143 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
DISTI #
2-1825013-0
|
Avnet Abacus | Switch DIP SP16T 16 Screwdriver 20VAC 20VDC 04VA Gull Wing 20000Cycle 254mm SMD TR (Alt: 2-1825013-0) RoHS: Compliant Min Qty: 20000 Package Multiple: 20000 | Abacus - 0 |
|
Buy Now |
Part Details for 2-1825013-0

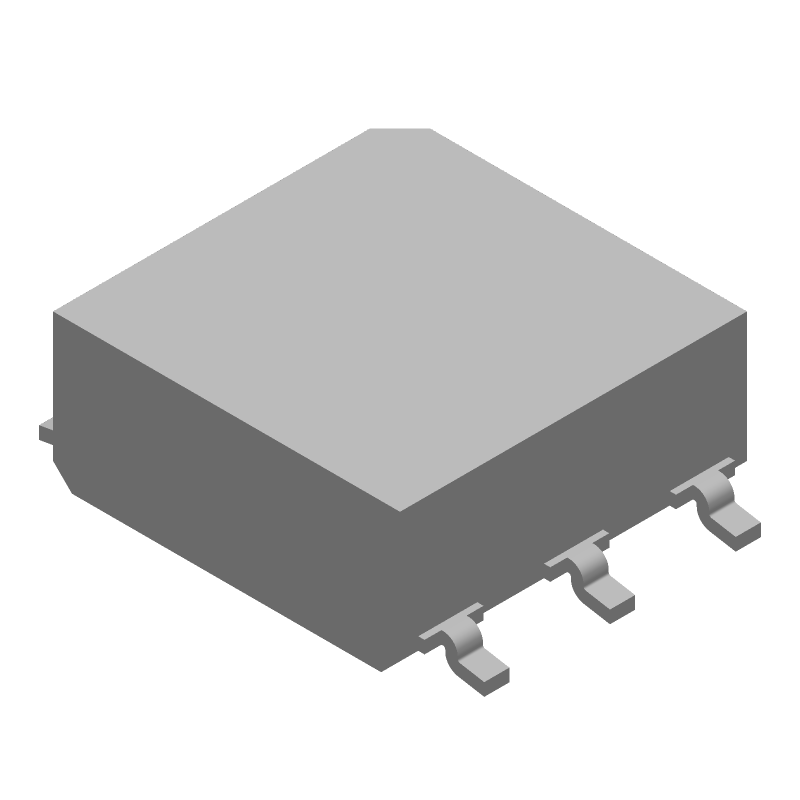

2-1825013-0 CAD Models
2-1825013-0 Part Data Attributes
|
|
2-1825013-0
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
2-1825013-0
TE Connectivity
MRD16STR04=7MM ROT DIP, BCD
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.90.20 | |
| Factory Lead Time | 30 Weeks, 2 Days | |
| Samacsys Manufacturer | TE Connectivity | |
| Actuator Color | GREEN | |
| Actuator Material | POLYAMIDE | |
| Actuator Type | SCREW DRIVER SLOT | |
| Additional Feature | LOW PROFILE | |
| Body Breadth | 7.01 mm | |
| Body Color | BLACK | |
| Body Height | 3.1 mm | |
| Body Length or Diameter | 7.01 mm | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | GOLD OVER NICKEL | |
| Contact (AC) Max Power Rating R Load | 0.4VA@20VAC | |
| Contact (AC) Max Rating R Load | .02A@20VAC | |
| Contact Current(AC)-Max | 0.02 A | |
| Contact Current(DC)-Max | 0.02 A | |
| Contact (DC) Max Rating R Load | .02A@20VDC | |
| Contact Resistance | 0.3 mΩ | |
| Contact Voltage(AC)-Max | 20 V | |
| Contact Voltage(DC)-Max | 20 V | |
| Dielectric Withstand Volts | 350VAC V | |
| Electrical Life | 10000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| End Contact Plating | GOLD OVER NICKEL | |
| Housing Material | POLYPHENYLENE SULPHIDE | |
| Indexing Angle | 30 deg | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | POLYPHENYLENE SULPHIDE | |
| Mounting Feature | SURFACE MOUNT-STRAIGHT | |
| Number of Positions | 16 | |
| Number of Switch Sections | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Packing Method | TR | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | BINARY CODED HEXADECIMAL | |
| Switch Type | ROTARY CODED SWITCH | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
