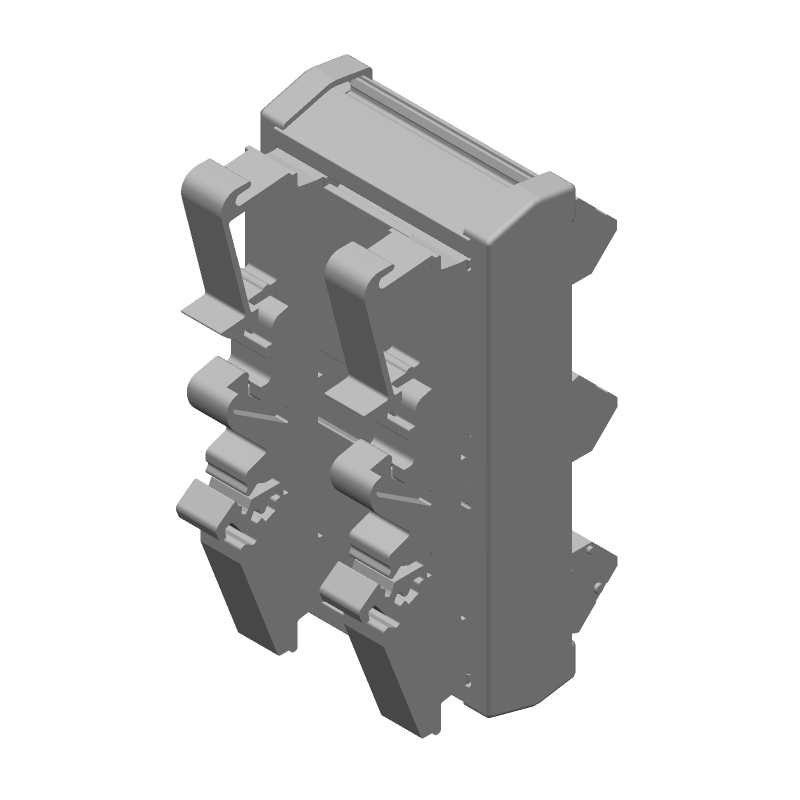

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 2-1415060-1 by TE Connectivity
Results Overview of 2-1415060-1 by TE Connectivity
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Industrial Automation
Aerospace and Defense
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
2-1415060-1 Information
2-1415060-1 by TE Connectivity is a Special Relay.
Special Relays are under the broader part category of Relays.
A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.
Price & Stock for 2-1415060-1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
89AK1690
|
Newark | Sr6Zb524 |Te Connectivity 2-1415060-1 RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$117.7000 | Buy Now |
|
DISTI #
41-2-1415060-1-ND
|
DigiKey | SR6ZB524 Min Qty: 1000 Lead time: 24 Weeks Container: Bulk | Temporarily Out of Stock |
|
$96.3807 | Buy Now |
|
DISTI #
2-1415060-1
|
Avnet Americas | Electromechanical Relay 4PST-NO/DPST-NC 8A 24VDC 24VAC 370Ohm Socket - Trays (Alt: 2-1415060-1) RoHS: Compliant Min Qty: 1000 Package Multiple: 2 Lead time: 111 Weeks, 0 Days Container: Tray | 0 |
|
$88.8240 / $96.1299 | Buy Now |
|
DISTI #
571-2-1415060-1
|
Mouser Electronics | Safety Relays SR6ZB524 RoHS: Compliant | 0 |
|
$99.4200 | Order Now |
|
DISTI #
AMP2-1415060-1
|
Heilind Electronics | SR6ZB524 | Americas - 0 in Stock |
|
$114.2023 / $122.9872 | Buy Now |
|
|
Onlinecomponents.com | SR6ZB524 RoHS: Compliant | 0 |
|
$93.8200 / $275.3500 | Buy Now |
|
DISTI #
AMP2-1415060-1
|
Interstate Connecting Components | SR6ZB524 | 0 |
|
$114.2023 / $122.9872 | Buy Now |
|
DISTI #
000000000005526772
|
Sager | Safety Relays SR6ZB524 Min Qty: 2 | 0 |
|
$123.3700 | Buy Now |
|
DISTI #
2-1415060-1
|
Avnet Abacus | Electromechanical Relay 4PSTNODPSTNC 8A 24VDC 24VAC 370Ohm Socket (Alt: 2-1415060-1) RoHS: Compliant Min Qty: 2 Package Multiple: 2 Lead time: 25 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
DISTI #
2-1415060-1
|
Avnet Abacus | Electromechanical Relay 4PSTNODPSTNC 8A 24VDC 24VAC 370Ohm Socket (Alt: 2-1415060-1) RoHS: Compliant Min Qty: 2 Package Multiple: 1 Lead time: 27 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for 2-1415060-1
2-1415060-1 CAD Models
2-1415060-1 Part Data Attributes
|
|
2-1415060-1
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
2-1415060-1
TE Connectivity
Safety Relay, 6PST, Momentary, 0.063A (Coil), 24VDC (Coil), 1200mW (Coil), 8A (Contact), DC Input, AC/DC Output, Panel Mount
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Package Description | ROHS COMPLIANT | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 111 Weeks | |
| Samacsys Manufacturer | TE Connectivity | |
| Body Breadth | 46 mm | |
| Body Height | 54 mm | |
| Body Length or Diameter | 87 mm | |
| Coil Current(DC)-Max | 0.063 A | |
| Coil Power | 1200 mW | |
| Coil Resistance | 368 Ω | |
| Coil Voltage(AC)-Max | 24 V | |
| Coil Voltage(DC)-Max | 24 V | |
| Coil/Input Supply Type | DC | |
| Contact (AC) Max Rating R Load | 8A@240VAC | |
| Contact Current(AC)-Max | 8 A | |
| Contact Current(DC)-Max | 8 A | |
| Contact Voltage(AC)-Max | 250 V | |
| Contact/Output Supply Type | AC/DC | |
| Dielectric Strength Between Coil and Contacts | 3000 Vrms | |
| Dielectric Strength Between Open Contacts | 1000 Vrms | |
| End Contact Material | SILVER TIN OXIDE | |
| Mounting Feature | PANEL MOUNT | |
| Operating Temperature-Max | 50 °C | |
| Operating Temperature-Min | -25 °C | |
| Packing Method | BOX | |
| Physical Dimension | 86.86mm x 45.97mm x 53.84mm | |
| Reference Standard | DIN; EN; IEC; UL | |
| Relay Action | MOMENTARY | |
| Relay Function | 6PST | |
| Relay Type | SAFETY RELAY | |
| Surface Mount | NO | |
| Termination Type | SOLDER/QUICK CONNECT | |
| Weight | 90 g |
