1393258-5 by: TE Connectivity

SPECIAL RELAY-SAFETY RELAY, DPST, MOMENTARY, 0.058A (COIL), 12VDC (COIL), 700mW (COIL), 6A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

Part Details for 1393258-5 by TE Connectivity

Results Overview of 1393258-5 by TE Connectivity

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Internet of Things (IoT) Environmental Monitoring Financial Technology (Fintech) Smart Cities Transportation and Logistics Agriculture Technology Telecommunications Virtual Reality (VR), Augmented Reality (AR), and Vision Systems Education and Research Consumer Electronics Security and Surveillance Audio and Video Systems Computing and Data Storage Healthcare Entertainment and Gaming

1393258-5 Information

1393258-5 by TE Connectivity is a Special Relay.
Special Relays are under the broader part category of Relays.

A relay is an electromechanical switch that uses an electrical signal to open or close circuits, protecting systems from overcurrents or voltage surges. They are used in a variety of applications, including lighting control, telecommunication, automotive systems, and power protection. Read more about Relays on our Relays part category page.

Price & Stock for 1393258-5

Part # Distributor Description Stock Price Buy
DISTI # 1393258-5
Avnet Americas Electromechanical Relay SPST-NO/SPST-NC 6A 12VDC 206Ohm Through Hole - Bulk (Alt: 1393258-5) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 17 Weeks, 5 Days Container: Bulk 0
  • 500 $8.0388
  • 1,000 $7.8590
  • 2,000 $7.6792
  • 3,000 $6.6977
  • 4,000 $6.5423
$6.5423 / $8.0388 Buy Now
Future Electronics V23047-A1012-A511 RoHS: Compliant pbFree: Yes Min Qty: 500 Package Multiple: 500 Lead time: 23 Weeks Container: Box 0
Box
  • 500 $7.2500
$7.2500 Buy Now
DISTI # AMP1393258-5
Heilind Electronics V23047-A1012-A511 Americas - 0 in Stock
  • 1 $9.6370
  • 10 $9.3492
  • 25 $8.9486
$8.9486 / $9.6370 Buy Now
Onlinecomponents.com V23047-A1012-A511 RoHS: Compliant 0
  • 125 $9.6500
  • 250 $8.4400
  • 375 $8.4000
  • 500 $8.1400
$8.1400 / $9.6500 Buy Now
DISTI # 87454453
Verical Power Relay 12VDC 6A SPST-NO/SPST-NC(29x12.6x25.5)mm THT RoHS: Compliant Min Qty: 15 Package Multiple: 1 Date Code: 2331 Americas - 134
  • 15 $11.3820
  • 40 $9.8140
  • 75 $9.3100
$9.3100 / $11.3820 Buy Now
DISTI # 1393258-5
IBS Electronics POWER RELAY 12VDC 206OHM 6A SPST-NO/SPST-NC(29X12.6X25.5)MM THT Min Qty: 15 Package Multiple: 1 134
  • 15 $12.2000
  • 40 $8.6000
  • 75 $8.1500
  • 150 $9.4875
  • 500 $9.0375
  • 2,500 $8.0750
  • 5,000 $7.7500
  • 12,500 $6.6375
  • 25,000 $6.6375
$6.6375 / $12.2000 Buy Now
DISTI # AMP1393258-5
Interstate Connecting Components V23047-A1012-A511 0
  • 1 $9.6370
  • 10 $9.3492
  • 25 $8.9486
$8.9486 / $9.6370 Buy Now
DISTI # 1393258-5
Avnet Abacus Electromechanical Relay SPSTNOSPSTNC 6A 12VDC 206Ohm Through Hole (Alt: 1393258-5) RoHS: Compliant Min Qty: 500 Package Multiple: 500 Lead time: 20 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # 1393258-5
Avnet Abacus Electromechanical Relay SPSTNOSPSTNC 6A 12VDC 206Ohm Through Hole (Alt: 1393258-5) RoHS: Compliant Min Qty: 15 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Abacus - 0
Buy Now
Master Electronics V23047-A1012-A511 RoHS: Compliant 0
  • 125 $9.6500
  • 250 $8.4400
  • 375 $8.4000
  • 500 $8.1400
$8.1400 / $9.6500 Buy Now

Part Details for 1393258-5

1393258-5 Part Data Attributes

Parametric Data
1393258-5 TE Connectivity
Buy Now Datasheet
Compare Parts:

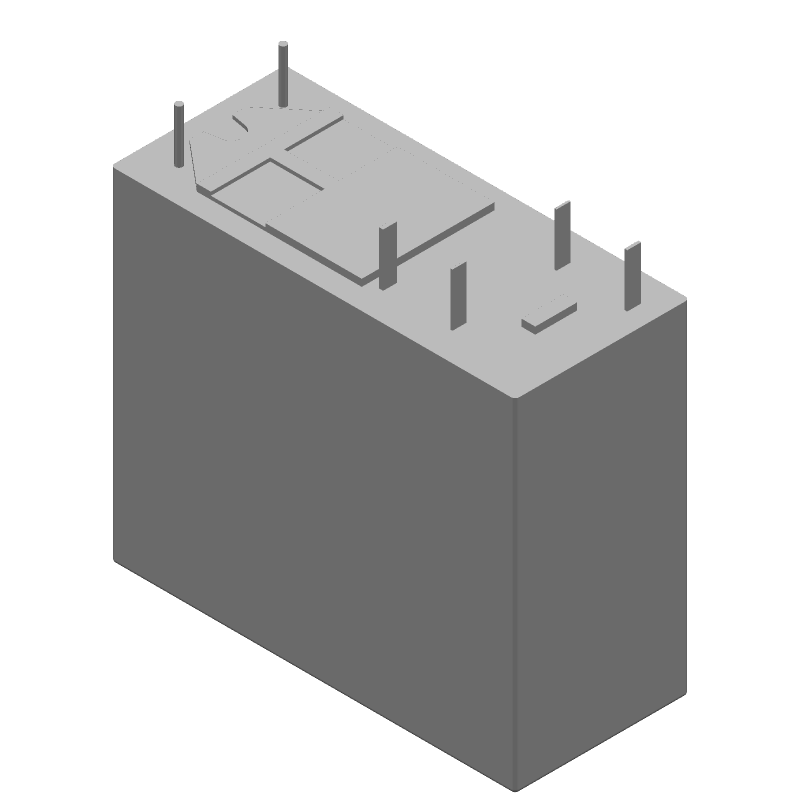

1393258-5 TE Connectivity SPECIAL RELAY-SAFETY RELAY, DPST, MOMENTARY, 0.058A (COIL), 12VDC (COIL), 700mW (COIL), 6A (CONTACT), THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
