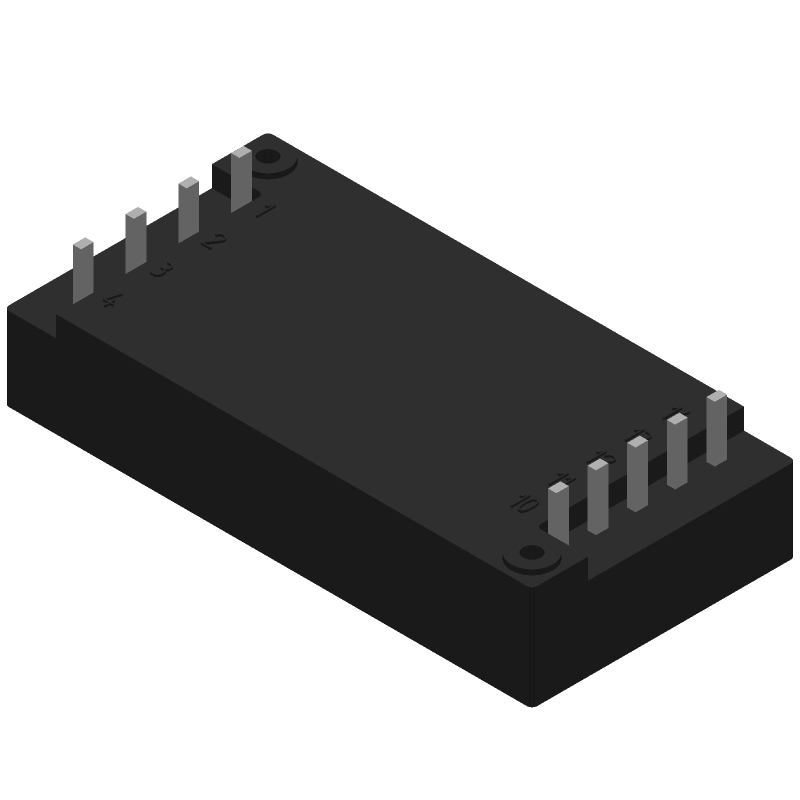

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 110IMX7-15-15-8G by Bel Power Solutions
Results Overview of 110IMX7-15-15-8G by Bel Power Solutions
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Transportation and Logistics
Automotive
110IMX7-15-15-8G Information
110IMX7-15-15-8G by Bel Power Solutions is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for 110IMX7-15-15-8G
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
179-2666-ND
|
DigiKey | DC DC CONVERTER 15V 15V 7W Min Qty: 90 Lead time: 16 Weeks Container: Bulk | Temporarily Out of Stock |
|
$103.2292 | Buy Now |
|
DISTI #
784-110IMX7-15-15-8G
|
Mouser Electronics | Isolated DC/DC Converters - Through Hole 7.2W 60-150VDC 15V 0.24A OUT 1&2 RoHS: Compliant | 0 |
|
$100.7300 | Order Now |
|
DISTI #
75126292
|
RS | DC-DC Converter, Dual Output, 60-150Vin, 15/15Vout, 7.2W, IMX7 Series Min Qty: 90 Package Multiple: 1 Lead time: 40 Weeks, 0 Days Container: Bulk | 0 |
|
$119.5300 | RFQ |
|
|
Onlinecomponents.com | Module DC-DC 110VIN 2-OUT 15V/15V 0.24A/0.24A 7.2W 9-Pin RoHS: Compliant | 0 |
|
$95.3300 / $264.1300 | Buy Now |
|
DISTI #
000000000006358479
|
Sager | Isolated DC/DC Converters - Through Hole 7.2W 60-150VDC 15V 0.24A OUT 1&2 Min Qty: 1 | 0 |
|
$100.0000 / $125.0000 | Buy Now |
Part Details for 110IMX7-15-15-8G
110IMX7-15-15-8G CAD Models
110IMX7-15-15-8G Part Data Attributes
|
|
110IMX7-15-15-8G
Bel Power Solutions
Buy Now
Datasheet
|
Compare Parts:
110IMX7-15-15-8G
Bel Power Solutions
DC/DC CONVERTER 2X15V 7W
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | POWER-ONE INC | |
| Package Description | ROHS COMPLIANT PACKAGE-9 | |
| Reach Compliance Code | compliant | |
| Samacsys Manufacturer | Bel Power Solutions | |
| Additional Feature | ADDITIONAL 15V OUTPUT ALSO AVAILABLE | |
| Analog IC - Other Type | DC-DC REGULATED POWER SUPPLY MODULE | |
| Approvals | CE, TUV, UL | |
| Efficiency (Main Output) | 84% | |
| Input Voltage-Max | 150 V | |
| Input Voltage-Min | 60 V | |
| Input Voltage-Nom | 110 V | |
| JESD-30 Code | R-XDMA-T9 | |
| Length | 50.8 mm | |
| Line Regulation-Max | 1% | |
| Load Regulation-Max | 3% | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 9 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.24 A | |
| Output Voltage-Max | 15.15 V | |
| Output Voltage-Min | 14.85 V | |
| Output Voltage-Nom | 15 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | DMA | |
| Package Shape | RECTANGULAR | |
| Package Style | MICROELECTRONIC ASSEMBLY | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Total Power Output-Max | 7.2 W | |
| Trim/Adjustable Output | NO | |
| Warm-up Time | 0.5 s | |
| Width | 25.4 mm |
