Connectors / Headers and Edge Type Connectors / 10127720-201GLF
Datasheets
10127720-201GLF by:

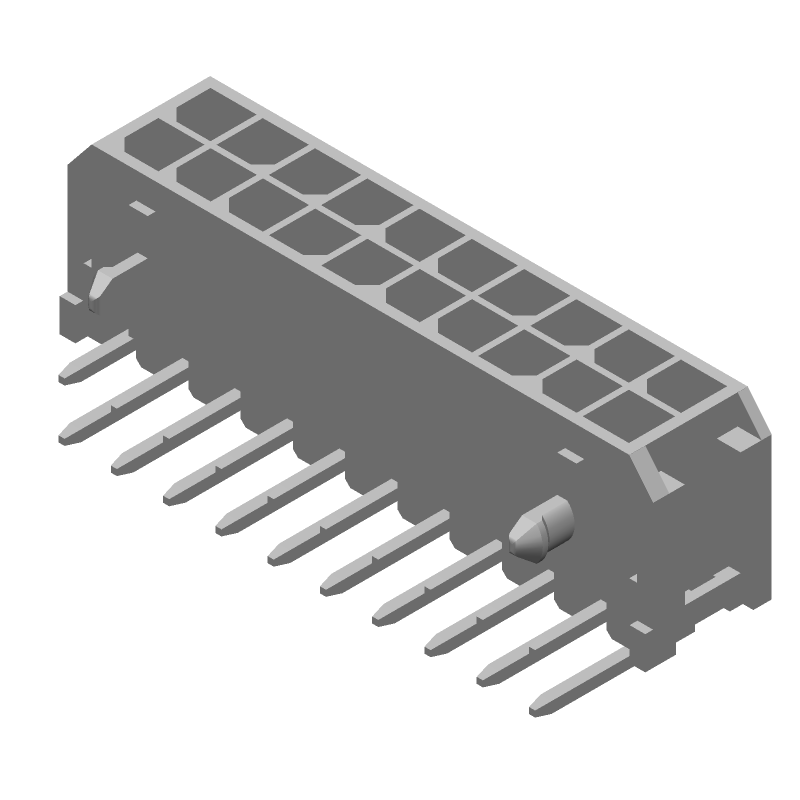

Minitek® Pwr 3.0, Dual Row, Right Angle Through Hole Header, 20 Positions, 100u" Tin plating, GW Compatible LCP, With Pegs, Tray Packing.

Part Details for 10127720-201GLF by Amphenol Communications Solutions

Results Overview of 10127720-201GLF by Amphenol Communications Solutions

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Industrial Automation

10127720-201GLF Information

10127720-201GLF by Amphenol Communications Solutions is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.

Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.

Price & Stock for 10127720-201GLF

Part # Distributor Description Stock Price Buy
DISTI # 30Y7563
Newark 10127720-201Glf-Minitek Pwr3.0 Ra Header Rohs Compliant: Yes |Amphenol Communications Solutions 10127720-201GLF RoHS: Compliant Min Qty: 990 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 500 $1.1600
  • 1,000 $1.0400
$1.0400 / $1.1600 Buy Now
DISTI # 10127720-201GLF-ND
DigiKey CONN PWR3.0 RA HEADER Min Qty: 990 Lead time: 13 Weeks Container: Tray Temporarily Out of Stock
  • 990 $0.9476
$0.9476 Buy Now
Onlinecomponents.com Conn Wire to Board HDR 20 POS 3mm Solder RA Side Entry Thru-Hole Minitek® Tray RoHS: Compliant 0
  • 248 $1.2120
  • 495 $0.9110
  • 743 $0.8500
  • 990 $0.8330
$0.8330 / $1.2120 Buy Now

Part Details for 10127720-201GLF

10127720-201GLF Part Data Attributes

Parametric Data
10127720-201GLF Amphenol Communications Solutions
Buy Now Datasheet
Compare Parts:
10127720-201GLF Amphenol Communications Solutions Minitek® Pwr 3.0, Dual Row, Right Angle Through Hole Header, 20 Positions, 100u" Tin plating, GW Compatible LCP, With Pegs, Tray Packing.
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer AMPHENOL COMMUNICATIONS SOLUTIONS
Pin Count 20
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8536.69.40.30
Samacsys Manufacturer Amphenol Communications Solutions
Additional Feature RATED CURRENT(POWER):5.5A
Body Breadth 0.34 inch
Body Depth 0.39 inch
Body Length 1.323 inch
Connector Type RECTANGULAR POWER CONNECTOR
Contact Arrangement S0P20
Contact Finish Mating SN ON NI
Contact Gender MALE
Contact Material COPPER ALLOY
Contact Resistance 20 mΩ
Contact Style SQ PIN-SKT
Dielectric Withstanding Voltage 1000VAC V
Durability 100 Cycles
Empty Shell NO
Filter Feature NO
Insertion Force-Max 8.0064 N
Insulation Resistance 1000000000 Ω
Insulator Color BLACK
Insulator Material LIQUID CRYSTAL POLYMER
Mixed Contacts NO
Mounting Option 1 LOCKING
Mounting Style RIGHT ANGLE
Mounting Type BOARD
Number Of Connectors ONE
Operating Temperature-Max 105 °C
Operating Temperature-Min -40 °C
Option GENERAL PURPOSE
Plating Thickness 100u inch
Reference Standard UL
Terminal Length 0.126 inch
Termination Type SOLDER
Total Number of Contacts 20
UL Flammability Code 94V-0
Withdrawl Force-Min 3.6974 N

Alternate Parts for 10127720-201GLF

This table gives cross-reference parts and alternative options found for 10127720-201GLF. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 10127720-201GLF, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
IPT1-110-01-S-D-VS Samtec Inc $4.6619 Rectangular Power Connector, 20 Contact(s), Male, Surface Mount Terminal, ROHS COMPLIANT 10127720-201GLF vs IPT1-110-01-S-D-VS
43270-2016 Molex Check for Price Rectangular Power Connector, 20 Contact(s), Male, Solder Terminal, ROHS COMPLIANT 10127720-201GLF vs 43270-2016
10131319-20221G0LF Amphenol Communications Solutions Check for Price Minitek® Pwr 4.2 HCC, Dual Row, Vertical Through Hole Header, 100u" Matte Tin overall plating, Black Color, 20 Positions, GW Compatible Nylon66, Tray Packing. 10127720-201GLF vs 10131319-20221G0LF
10131319-20121G0LF Amphenol Communications Solutions Check for Price Minitek® Pwr 4.2 HCC, Dual Row, Vertical Through Hole Header, Gold Flash plating, Black Color, 20 Positions, GW Compatible Nylon66, Tray Packing. 10127720-201GLF vs 10131319-20121G0LF
10127720-204LF Amphenol FCi Check for Price Board Connector, 20 Contact(s), Right Angle, Solder Terminal, Locking, Black Insulator, Plug 10127720-201GLF vs 10127720-204LF
A-42404-20B5 Molex Check for Price Rectangular Power Connector, 20 Contact(s), Male, Solder Terminal 10127720-201GLF vs A-42404-20B5
10131318-20221G0LF Amphenol Communications Solutions Check for Price Minitek® Pwr 4.2 HCC, Dual Row, Right Angle Through Hole Header, 80u" Bright Tin plating, Black Color, 20 Positions, GW Compatible Nylon66, Tray Packing. 10127720-201GLF vs 10131318-20221G0LF
IPT1-110-01-SM-D Samtec Inc Check for Price Rectangular Power Connector, 20 Contact(s), Male, Solder Terminal 10127720-201GLF vs IPT1-110-01-SM-D
39-31-9208 Molex Check for Price Rectangular Power Connector, 20 Contact(s), Male, Solder Terminal 10127720-201GLF vs 39-31-9208
SP2GGY48M0N9/AA Amphenol Positronic Check for Price Rectangular Power Connector, 20 Contact(s), Male, Solder Terminal, ROHS COMPLIANT 10127720-201GLF vs SP2GGY48M0N9/AA
