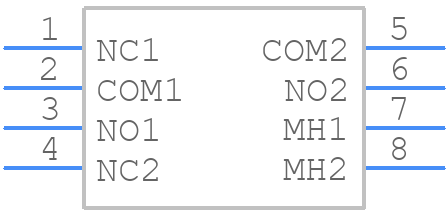

Part Symbol
-

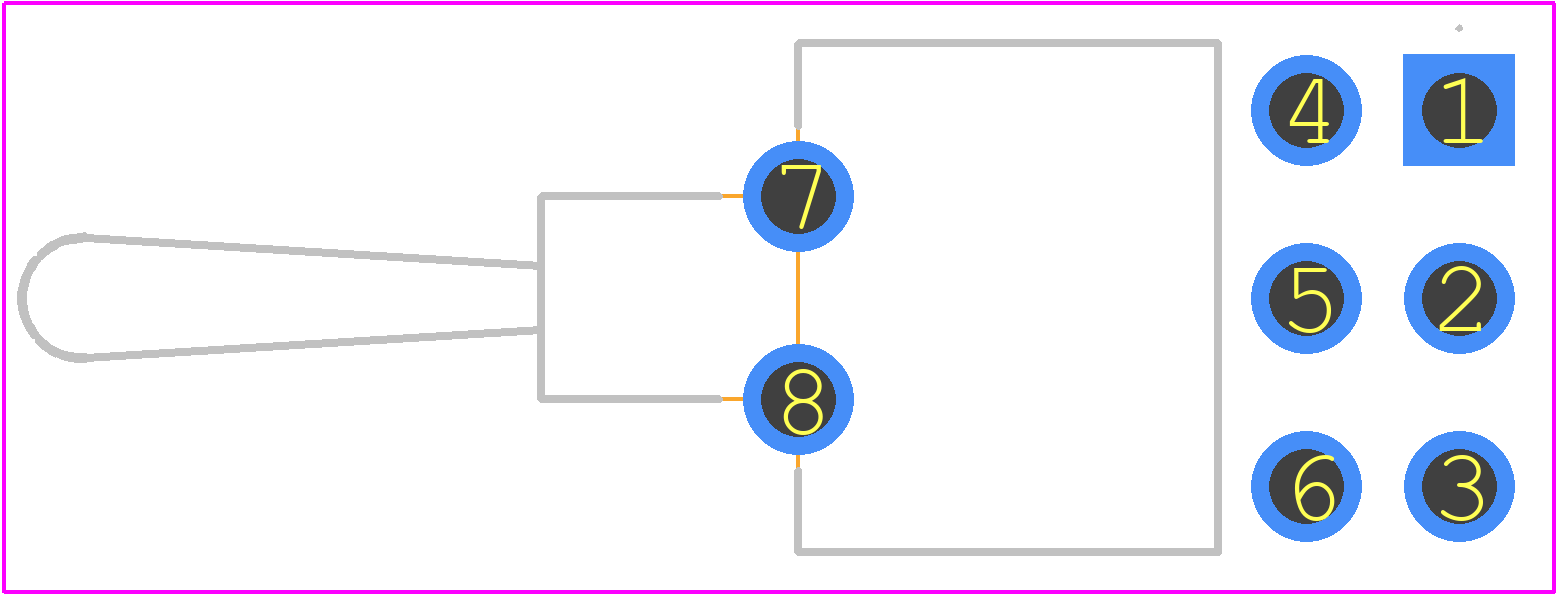

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 100AWDP1T1B4M6RE by E-Switch Inc
Results Overview of 100AWDP1T1B4M6RE by E-Switch Inc
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Smart Cities
100AWDP1T1B4M6RE Information
100AWDP1T1B4M6RE by E-Switch Inc is a Toggle Switch.
Toggle Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for 100AWDP1T1B4M6RE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
100AWDP1T1B4M6RE-ND
|
DigiKey | SWITCH TOGGLE DPDT 0.4VA 20V Min Qty: 200 Lead time: 12 Weeks Container: Bulk | Temporarily Out of Stock |
|
$4.4399 | Buy Now |
|
DISTI #
612-100AWDP1T1B4M6RE
|
Mouser Electronics | Toggle Switches 0.4VA @ 20V (AC/DC) On-None-On PC Mnt RoHS: Compliant | 0 |
|
$4.5900 | Order Now |
|
DISTI #
74708533
|
RS | Toggle Switch, DPDT, ON-ON, 0.4VA, 20VAC/VDC, TH, RA, PC Pin, IP67, 100A Series Min Qty: 200 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$8.0600 | RFQ |
Part Details for 100AWDP1T1B4M6RE
100AWDP1T1B4M6RE CAD Models
100AWDP1T1B4M6RE Part Data Attributes
|
|
100AWDP1T1B4M6RE
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
100AWDP1T1B4M6RE
E-Switch Inc
TOGGLE SWITCH,RIGHT ANGLE,DPDT,ON-ON,R ANGLE PC TAIL TERMINAL,TOGGLE,8
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Finish | CHROME | |
| Actuator Length | 0.4 inch | |
| Actuator Material | BRASS | |
| Actuator Type | TOGGLE | |
| Body Breadth | 11.5062 mm | |
| Body Height | 16.51 mm | |
| Body Length or Diameter | 12.7 mm | |
| Bushing Length | 0.243 inch | |
| Bushing Type | UNTHREADED | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | GOLD OVER NICKEL | |
| Contact (AC) Max Power Rating R Load | 0.4VA@20VAC | |
| Contact Current(AC)-Max | 0.02 A | |
| Contact Current(DC)-Max | 0.02 A | |
| Contact Function | ON-ON | |
| Contact Resistance | 0.01 mΩ | |
| Contact Voltage(AC)-Max | 20 V | |
| Contact Voltage(DC)-Max | 20 V | |
| Dielectric Withstand Volts | 1000VRMS V | |
| Electrical Life | 50000 Cycle(s) | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | POLYBUTYLENE TEREPHTHALATE | |
| JESD-609 Code | e4 | |
| Mounting Feature | THROUGH HOLE-RIGHT ANGLE | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| PCB Hole Count | 8 | |
| Sealing | EPOXY | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | DPDT | |
| Switch Type | TOGGLE SWITCH | |
| Terminal Finish | Gold (Au) - with Nickel (Ni) barrier | |
| Terminal Length | 0.125 inch | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
