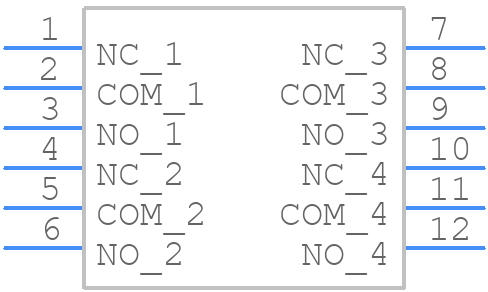

Part Symbol
-

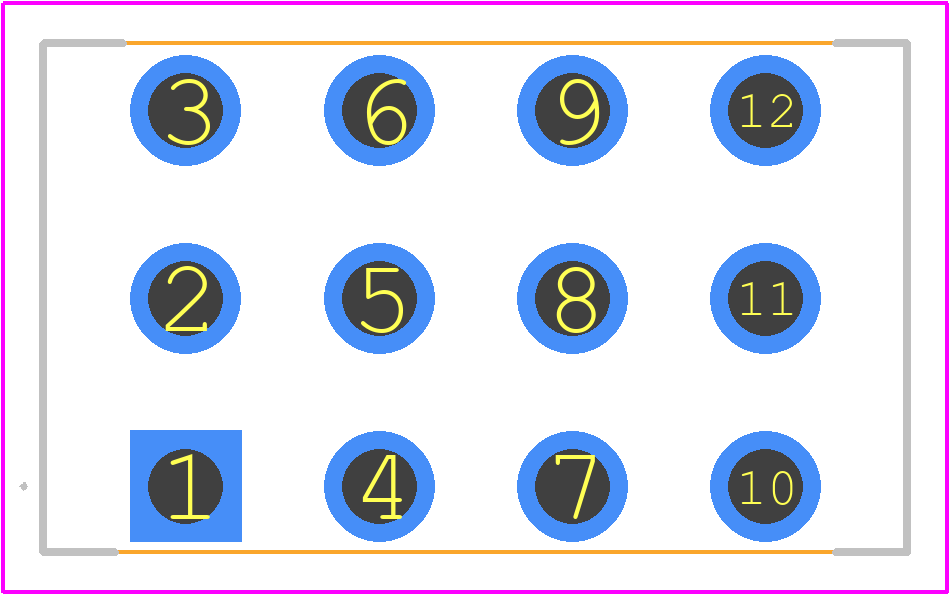

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for 1004P3T1B1M2RE by E-Switch Inc
Results Overview of 1004P3T1B1M2RE by E-Switch Inc
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
1004P3T1B1M2RE Information
1004P3T1B1M2RE by E-Switch Inc is a Toggle Switch.
Toggle Switches are under the broader part category of Switches.
Electrical switches are binary devices that control the flow of current in a circuit by either allowing or preventing the flow of electrons. Read more about Switches on our Switches part category page.
Price & Stock for 1004P3T1B1M2RE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
16N0289
|
Newark | Ea Rohs Compliant: Yes |E-Switch 1004P3T1B1M2RE RoHS: Compliant Min Qty: 200 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$10.2000 / $11.9100 | Buy Now |
|
DISTI #
1004P3T1B1M2RE-ND
|
DigiKey | SWITCH TOGGLE 4PDT 0.4VA 20V Min Qty: 200 Lead time: 12 Weeks Container: Bulk | Temporarily Out of Stock |
|
$8.1776 | Buy Now |
|
DISTI #
612-1004P3T1B1M2RE
|
Mouser Electronics | Toggle Switches 5A 120VAC/28VDC On-Off-On PC Mnt RoHS: Compliant | 0 |
|
$8.1700 / $13.5300 | Order Now |
|
DISTI #
74708495
|
RS | Toggle Switch, 4PDT, ON-OFF-ON, 0.4VA, 20VAC/VDC, Panel Mt., PC Pin, 100 Series Min Qty: 200 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$15.6300 | RFQ |
Part Details for 1004P3T1B1M2RE
1004P3T1B1M2RE CAD Models
1004P3T1B1M2RE Part Data Attributes
|
|
1004P3T1B1M2RE
E-Switch Inc
Buy Now
Datasheet
|
Compare Parts:
1004P3T1B1M2RE
E-Switch Inc
Toggle Switch, 4PDT, On-off-on, Solder Terminal, Toggle Actuator, Through Hole-straight
|
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | E-SWITCH INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8536.50.70.00 | |
| Samacsys Manufacturer | E-Switch | |
| Actuator Angle | 25 deg | |
| Actuator Finish | CHROME | |
| Actuator Length | 0.41 inch | |
| Actuator Material | BRASS | |
| Actuator Type | STANDARD TOGGLE | |
| Body Breadth | 12.7 mm | |
| Body Height | 10.541 mm | |
| Body Length or Diameter | 21.59 mm | |
| Bushing Diameter | 0.25 inch | |
| Bushing Length | 0.35 inch | |
| Bushing Type | 1/4-40 | |
| Center Contact Material | COPPER ALLOY | |
| Center Contact Plating | GOLD OVER NICKEL | |
| Contact (AC) Max Power Rating R Load | 0.4VA@20VAC | |
| Contact Current(AC)-Max | 0.02 A | |
| Contact Current(DC)-Max | 0.02 A | |
| Contact Function | ON-OFF-ON | |
| Contact Resistance | 0.01 mΩ | |
| Contact Voltage(AC)-Max | 20 V | |
| Contact Voltage(DC)-Max | 20 V | |
| Dielectric Withstand Volts | 1000VRMS V | |
| Electrical Life | 40000 Cycle(s) | |
| End Contact Material | COPPER ALLOY | |
| End Contact Plating | GOLD OVER NICKEL | |
| Housing Material | STAINLESS STEEL | |
| Illumination | NON-ILLUMINATED | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Material | DIALLYL PHTHALATE | |
| JESD-609 Code | e4 | |
| Mounting Feature | THROUGH HOLE-STRAIGHT | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Sealing | EPOXY | |
| Surface Mount | NO | |
| Switch Action | LATCHED | |
| Switch Function | 4PDT | |
| Switch Type | TOGGLE SWITCH | |
| Terminal Finish | Gold (Au) | |
| Terminal Material | COPPER ALLOY | |
| Termination Type | SOLDER |
