Diodes / Transient Suppressors / 1.5SMC200CA-E3/57T
Datasheets
1.5SMC200CA-E3/57T by:

Trans Voltage Suppressor Diode, 1500W, 171V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB,

Part Details for 1.5SMC200CA-E3/57T by Vishay Intertechnologies

Results Overview of 1.5SMC200CA-E3/57T by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

1.5SMC200CA-E3/57T Information

1.5SMC200CA-E3/57T by Vishay Intertechnologies is a Transient Suppressor.
Transient Suppressors are under the broader part category of Diodes.

A diode is a electrical part that can control the direction in which the current flows in a device. Consider factors like voltage drop, current capacity, reverse voltage, and operating frequency when selecting a diode. Read more about Diodes on our Diodes part category page.

Price & Stock for 1.5SMC200CA-E3/57T

Part # Distributor Description Stock Price Buy
DISTI # 10AH1948
Newark 1.5Kw,200V 5%,bidir, smc Tvs Rohs Compliant: Yes |Vishay 1.5SMC200CA-E3/57T RoHS: Compliant Min Qty: 850 Package Multiple: 1 Date Code: 0 Container: Reel 11050
  • 1 $0.4070
  • 1,000 $0.3920
  • 2,000 $0.3590
  • 4,000 $0.3260
  • 6,000 $0.3150
  • 10,000 $0.3090
$0.3090 / $0.4070 Buy Now
DISTI # 78K1802
Newark Transient Suppressor Diode, single, bidirectional,171V V(Rwm),do-214Ab/Smc Rohs Compliant: Yes |Vishay 1.5SMC200CA-E3/57T RoHS: Compliant Min Qty: 1700 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1,000 $0.3920
  • 2,000 $0.3590
  • 4,000 $0.3260
  • 6,000 $0.3150
  • 10,000 $0.3090
$0.3090 / $0.3920 Buy Now
DISTI # 1.5SMC200CA-E3/57T
Avnet Americas 1.5KW,200V 5%,BIDIR,SMC TVS - Tape and Reel (Alt: 1.5SMC200CA-E3/57T) RoHS: Compliant Min Qty: 850 Package Multiple: 850 Lead time: 11 Weeks, 0 Days Container: Reel 11050
  • 850 $0.2098
  • 1,700 $0.2071
  • 3,400 $0.2035
  • 5,100 $0.1999
  • 6,800 $0.1963
$0.1963 / $0.2098 Buy Now
DISTI # 625-1.5SMC200CA-E3
Mouser Electronics ESD Protection Diodes / TVS Diodes 1500W 200V Bidirect RoHS: Compliant 2200
  • 1 $0.5600
  • 10 $0.4930
  • 100 $0.3410
  • 500 $0.2790
  • 850 $0.2420
  • 4,250 $0.1880
  • 9,350 $0.1870
$0.1870 / $0.5600 Buy Now
DISTI # V36:1790_18784975
Arrow Electronics TVS Diode Single Bi-Dir 171V 1.5KW 2-Pin SMC T/R Min Qty: 1700 Package Multiple: 1700 Lead time: 11 Weeks Date Code: 2302 Americas - 2550
  • 0 $0.2297
  • 1,700 $0.0559
$0.0559 / $0.2297 Buy Now
DISTI # 66299406
Verical TVS Diode Single Bi-Dir 171V 1.5KW 2-Pin SMC T/R Min Qty: 1700 Package Multiple: 1700 Date Code: 2302 Americas - 1700
  • 1,700 $0.2667
$0.2667 Buy Now
DISTI # 1.5SMC200CA-E3/57T
TTI ESD Protection Diodes / TVS Diodes 1500W 200V Bidirect pbFree: Pb-Free Min Qty: 1700 Package Multiple: 850 Container: Reel Americas - 0
  • 1,700 $0.3220
$0.3220 Buy Now
DISTI # 1.5SMC200CA-E3/57T
TME Diode: TVS, 1.5kW, 190÷210V, bidirectional, SMC, reel,tape, 1.5SMC Min Qty: 1 0
  • 1 $0.4100
$0.4100 RFQ
DISTI # 1.5SMC200CA-E3/57T
IBS Electronics 1.5KW 200V 5% BIDIR SMC TVS ROHS COMPLIANT: YES Min Qty: 1700 Package Multiple: 1 0
  • 1,700 $0.2015
  • 2,550 $0.1976
  • 4,250 $0.1963
  • 12,750 $0.1924
  • 21,250 $0.1885
$0.1885 / $0.2015 Buy Now
DISTI # 1.5SMC200CA-E3/57T
EBV Elektronik 15KW200V 5BIDIRSMC TVS (Alt: 1.5SMC200CA-E3/57T) RoHS: Compliant Min Qty: 850 Package Multiple: 850 Lead time: 12 Weeks, 0 Days EBV - 0
Buy Now

Part Details for 1.5SMC200CA-E3/57T

1.5SMC200CA-E3/57T CAD Models

  • Part Symbol

    Part Symbol

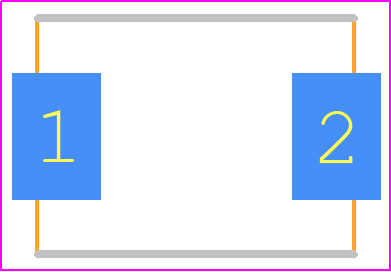

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

1.5SMC200CA-E3/57T Part Data Attributes

Parametric Data
1.5SMC200CA-E3/57T Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
1.5SMC200CA-E3/57T Vishay Intertechnologies Trans Voltage Suppressor Diode, 1500W, 171V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Reach Compliance Code not_compliant
Factory Lead Time 11 Weeks
Samacsys Manufacturer Vishay
Additional Feature EXCELLENT CLAMPING CAPABILITY
Breakdown Voltage-Max 210 V
Breakdown Voltage-Min 190 V
Breakdown Voltage-Nom 200 V
Clamping Voltage-Max 274 V
Configuration SINGLE
Diode Element Material SILICON
Diode Type TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code DO-214AB
JESD-30 Code R-PDSO-C2
JESD-609 Code e3
Moisture Sensitivity Level 1
Non-rep Peak Rev Power Dis-Max 1500 W
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max 150 °C
Operating Temperature-Min -65 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity BIDIRECTIONAL
Power Dissipation-Max 6.5 W
Qualification Status Not Qualified
Rep Pk Reverse Voltage-Max 171 V
Surface Mount YES
Technology AVALANCHE
Terminal Finish Matte Tin (Sn)
Terminal Form C BEND
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30

Alternate Parts for 1.5SMC200CA-E3/57T

This table gives cross-reference parts and alternative options found for 1.5SMC200CA-E3/57T. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 1.5SMC200CA-E3/57T, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
1.5SMC200CATIN/LEAD Central Semiconductor Corp Check for Price Trans Voltage Suppressor Diode, 1.5SMC200CA-E3/57T vs 1.5SMC200CATIN/LEAD
1.5SMC200CA-M3/57T Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 1500W, 171V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, 1.5SMC200CA-E3/57T vs 1.5SMC200CA-M3/57T
1.5SMC200CA BrightKing Inc Check for Price Trans Voltage Suppressor Diode, 1500W, 171V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN 1.5SMC200CA-E3/57T vs 1.5SMC200CA
1.5SMC200CA SEMIKRON Check for Price Trans Voltage Suppressor Diode, 1500W, 171V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, PLASTIC, SMC, 2 PIN 1.5SMC200CA-E3/57T vs 1.5SMC200CA
1.5SMC200C-AU_R2_100A1 PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 162V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN 1.5SMC200CA-E3/57T vs 1.5SMC200C-AU_R2_100A1
1.5SMC200CAR6 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 171V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN 1.5SMC200CA-E3/57T vs 1.5SMC200CAR6
1.5SMC200CAHV7G Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1.5SMC200CA-E3/57T vs 1.5SMC200CAHV7G
1.5SMC200CAHM3/H Vishay Intertechnologies Check for Price Trans Voltage Suppressor Diode, 1.5SMC200CA-E3/57T vs 1.5SMC200CAHM3/H
1.5SMC200CA-M3/57T Vishay Semiconductors Check for Price 1.5KW,200V 5%,BIDIR,SMC TVS 1.5SMC200CA-E3/57T vs 1.5SMC200CA-M3/57T
1.5SMC200CAHR6G Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 171V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN 1.5SMC200CA-E3/57T vs 1.5SMC200CAHR6G
Part Number Manufacturer Composite Price Description Compare
1.5SMC200CAHE3TRTS Fagor Electrónica Check for Price Trans Voltage Suppressor Diode, 1500W, 171V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN 1.5SMC200CA-E3/57T vs 1.5SMC200CAHE3TRTS
1.5SMC200CA_R2_00001 PanJit Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 171V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN 1.5SMC200CA-E3/57T vs 1.5SMC200CA_R2_00001
1.5SMC200CTRTB Fagor Electrónica Check for Price Trans Voltage Suppressor Diode, 1500W, 162V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN 1.5SMC200CA-E3/57T vs 1.5SMC200CTRTB
1.5SMC200CATRTS Fagor Electrónica Check for Price Trans Voltage Suppressor Diode, 1500W, 171V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN 1.5SMC200CA-E3/57T vs 1.5SMC200CATRTS
1.5SMC200CAHR6 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 171V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN 1.5SMC200CA-E3/57T vs 1.5SMC200CAHR6
1.5SMC200CHV6G Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1.5SMC200CA-E3/57T vs 1.5SMC200CHV6G
1.5SMC200CHM6G Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 162V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, SMC, 2 PIN 1.5SMC200CA-E3/57T vs 1.5SMC200CHM6G
1.5SMC200CHR6 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 162V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN 1.5SMC200CA-E3/57T vs 1.5SMC200CHR6
1.5SMC200CA-E3/57T Vishay Semiconductors Check for Price DIODE 1500 W, BIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN, Transient Suppressor 1.5SMC200CA-E3/57T vs 1.5SMC200CA-E3/57T
1.5SMC200CR6 Taiwan Semiconductor Check for Price Trans Voltage Suppressor Diode, 1500W, 162V V(RWM), Bidirectional, 1 Element, Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN 1.5SMC200CA-E3/57T vs 1.5SMC200CR6

1.5SMC200CA-E3/57T Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the 1.5SMC200CA-E3/57T is between 250°C to 260°C for a maximum of 10 seconds.

  • Yes, the 1.5SMC200CA-E3/57T is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.

  • The typical lead time for the 1.5SMC200CA-E3/57T can vary depending on the supplier and the quantity ordered, but it is typically around 8-12 weeks.

  • Yes, the 1.5SMC200CA-E3/57T is designed for high-reliability applications and meets the requirements of various industry standards, including AEC-Q101 and MIL-PRF-19500.

  • The maximum operating temperature range for the 1.5SMC200CA-E3/57T is -55°C to +150°C.
