Capacitors / Ceramic Capacitors / 08053C103KAT4A
Datasheets
08053C103KAT4A by: Kyocera AVX Components

Capacitor, Ceramic, Chip, General Purpose, 0.01uF, 25V, ±10%, X7R, 0805 (2012 mm), Sn/NiBar, -55º ~ +125ºC, 13" Reel

Part Details for 08053C103KAT4A by Kyocera AVX Components

Results Overview of 08053C103KAT4A by Kyocera AVX Components

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

08053C103KAT4A Information

08053C103KAT4A by Kyocera AVX Components is a Ceramic Capacitor.
Ceramic Capacitors are under the broader part category of Capacitors.

A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.

Price & Stock for 08053C103KAT4A

Part # Distributor Description Stock Price Buy
DISTI # 30H0747
Newark Capacitor Ceramic 0.01Uf, 25V, X7R, 10%, 0805, Capacitance:0.01Μf, Voltage(Dc):25V, Capacitor Case/Package:0805 [2012 Metric], Capacitance Tolerance:± 10%, Dielectric Characteristic:X7R, Product Range:-, Product Length:2.01Mm Rohs Compliant: Yes |Kyocera Avx 08053C103KAT4A RoHS: Compliant Min Qty: 15000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 10,000 $0.0270
  • 20,000 $0.0230
  • 30,000 $0.0190
$0.0190 / $0.0270 Buy Now
DISTI # KGM21NR71E103KM
Avnet Americas - Tape and Reel (Alt: KGM21NR71E103KM) RoHS: Compliant Min Qty: 15000 Package Multiple: 15000 Lead time: 12 Weeks, 0 Days Container: Reel 1215000 Factory Stock
  • 15,000 $0.0265
  • 30,000 $0.0263
  • 60,000 $0.0262
  • 90,000 $0.0261
  • 120,000 $0.0259
$0.0259 / $0.0265 Buy Now
DISTI # 581-08053C103KAT4A
Mouser Electronics Multilayer Ceramic Capacitors MLCC - SMD/SMT KGM21NR71E103KM NEW GLOBAL PN 25V 0.01uF A 581-KGM21NR71E103KM RoHS: Compliant 37318
  • 1 $0.1500
  • 10 $0.0870
  • 100 $0.0520
  • 500 $0.0410
  • 1,000 $0.0380
  • 2,500 $0.0330
  • 10,000 $0.0270
  • 15,000 $0.0250
  • 45,000 $0.0180
$0.0180 / $0.1500 Buy Now
Bristol Electronics   285
RFQ
DISTI # 08053C103KAT4A
IBS Electronics 08053C103KAT4A by AVX is a multilayer ceramic capacitor with 10nF capacitance, 25V voltage rating, X7R dielectric, &#xB1, 10% tolerance, and 0805 package size, ideal for general-purpose applications. Min Qty: 15000 Package Multiple: 1 0
  • 15,000 $0.0204
  • 30,000 $0.0200
  • 45,000 $0.0196
$0.0196 / $0.0204 Buy Now

Part Details for 08053C103KAT4A

08053C103KAT4A CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

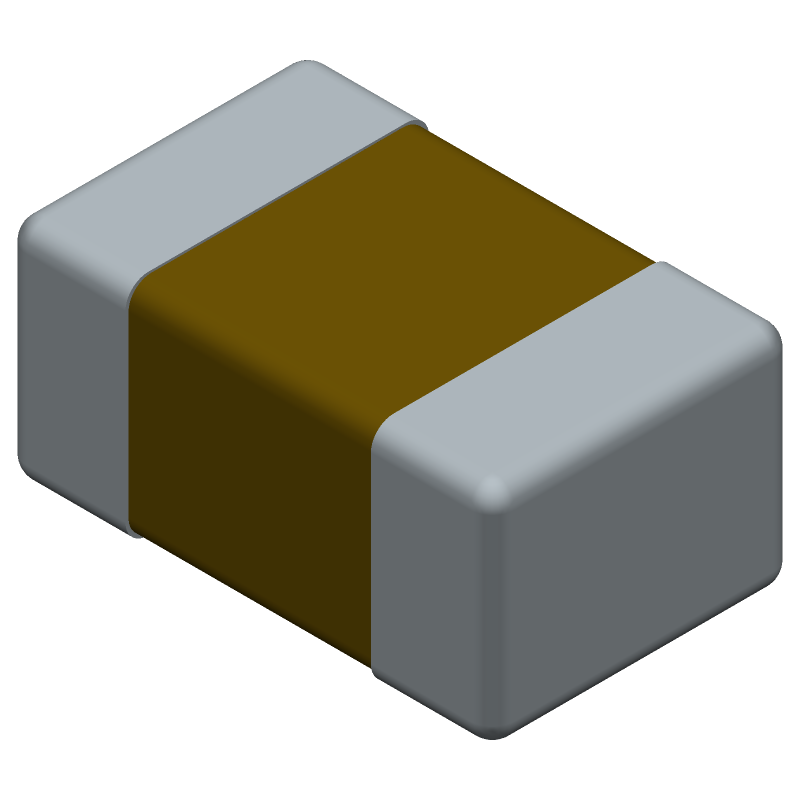

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

08053C103KAT4A Part Data Attributes

Parametric Data
08053C103KAT4A Kyocera AVX Components
Buy Now Datasheet
Compare Parts:
08053C103KAT4A Kyocera AVX Components Capacitor, Ceramic, Chip, General Purpose, 0.01uF, 25V, ±10%, X7R, 0805 (2012 mm), Sn/NiBar, -55º ~ +125ºC, 13" Reel
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer KYOCERA AVX COMPONENTS CORP
Part Package Code 0805
Package Description CHIP
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8532.24.00.20
Factory Lead Time 12 Weeks
Samacsys Manufacturer Kyocera AVX
Capacitance 0.01 µF
Capacitor Type CERAMIC CAPACITOR
Dielectric Material CERAMIC
Height 0.94 mm
JESD-609 Code e3
Length 2.01 mm
Mounting Feature SURFACE MOUNT
Multilayer Yes
Negative Tolerance 10%
Number of Terminals 2
Operating Temperature-Max 125 °C
Operating Temperature-Min -55 °C
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Packing Method TR, PAPER, 13 INCH
Positive Tolerance 10%
Rated (DC) Voltage (URdc) 25 V
Size Code 0805
Surface Mount YES
Temperature Characteristics Code X7R
Temperature Coefficient 15% ppm/°C
Terminal Finish MATTE TIN OVER NICKEL
Terminal Shape WRAPAROUND
Width 1.25 mm

Alternate Parts for 08053C103KAT4A

This table gives cross-reference parts and alternative options found for 08053C103KAT4A. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of 08053C103KAT4A, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
BC053C103KZT1AA0 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0805, CHIP 08053C103KAT4A vs BC053C103KZT1AA0
BC053C103KZB1AA2 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0805, CHIP 08053C103KAT4A vs BC053C103KZB1AA2
BC053C103KZT6AA2 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0805, CHIP 08053C103KAT4A vs BC053C103KZT6AA2
BC053C103KZJ1AA0 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0805, CHIP 08053C103KAT4A vs BC053C103KZJ1AA0
BC053C103KZJ6SA0 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0805, CHIP 08053C103KAT4A vs BC053C103KZJ6SA0
BC053C103KZT9SA3 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0805, CHIP 08053C103KAT4A vs BC053C103KZT9SA3
BC053C103KZT1SA2 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0805, CHIP 08053C103KAT4A vs BC053C103KZT1SA2
BC053C103KZT3SA2 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0805, CHIP 08053C103KAT4A vs BC053C103KZT3SA2
BC053C103KZT1SA0 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0805, CHIP 08053C103KAT4A vs BC053C103KZT1SA0
BC053C103KZJ3SA2 Kyocera AVX Components Check for Price Ceramic Capacitor, Multilayer, Ceramic, 25V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.01uF, Surface Mount, 0805, CHIP 08053C103KAT4A vs BC053C103KZJ3SA2

08053C103KAT4A Related Parts

08053C103KAT4A Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the 08053C103KAT4A capacitor is between 250°C to 260°C for a maximum of 3 seconds.

  • Yes, the 08053C103KAT4A capacitor is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.

  • The maximum operating voltage derating for the 08053C103KAT4A capacitor is 80% of the rated voltage at 125°C, and 50% of the rated voltage at 150°C.

  • Yes, the 08053C103KAT4A capacitor meets the requirements of the AEC-Q200 standard for automotive applications, making it suitable for use in automotive systems.

  • The 08053C103KAT4A capacitor has a moisture sensitivity level (MSL) of 3, which means it can be exposed to a maximum of 168 hours at 30°C and 60% relative humidity before soldering.
