Transistors / Small Signal Bipolar Transistors / ZXTN19060CFFTA
Datasheets
ZXTN19060CFFTA by:
Diodes Incorporated

Small Signal Bipolar Transistor, 5.5A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23F, 3 PIN

Part Details for ZXTN19060CFFTA by Diodes Incorporated

Results Overview of ZXTN19060CFFTA by Diodes Incorporated

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

ZXTN19060CFFTA Information

ZXTN19060CFFTA by Diodes Incorporated is a Small Signal Bipolar Transistor.
Small Signal Bipolar Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for ZXTN19060CFFTA

Part # Distributor Description Stock Price Buy
DISTI # ZXTN19060CFFCT-ND
DigiKey TRANS NPN 60V 5.5A SOT-23F Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) 2633
In Stock
  • 1 $1.1100
  • 10 $0.6930
  • 100 $0.4543
  • 500 $0.3516
  • 1,000 $0.3186
  • 3,000 $0.2765
  • 6,000 $0.2554
  • 9,000 $0.2446
  • 15,000 $0.2325
  • 21,000 $0.2313
$0.2313 / $1.1100 Buy Now
DISTI # ZXTN19060CFFTA
Avnet Americas Trans GP BJT NPN 60V 5.5A 3-Pin SOT-23F T/R - Tape and Reel (Alt: ZXTN19060CFFTA) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks, 0 Days Container: Reel 363000 Factory Stock
  • 3,000 $0.2256
  • 6,000 $0.2229
  • 12,000 $0.2202
  • 18,000 $0.2192
  • 24,000 $0.2177
$0.2177 / $0.2256 Buy Now
DISTI # 522-ZXTN19060CFFTA
Mouser Electronics Bipolar Transistors - BJT NPN 60V Transitor RoHS: Compliant 2027
  • 1 $0.9700
  • 10 $0.6510
  • 100 $0.4360
  • 500 $0.3520
  • 1,000 $0.3080
  • 3,000 $0.2700
  • 6,000 $0.2550
$0.2550 / $0.9700 Buy Now
DISTI # V36:1790_06708271
Arrow Electronics Trans GP BJT NPN 60V 5.5A 2000mW 3-Pin SOT-23F T/R RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 12 Weeks Date Code: 2418 Americas - 3000
  • 3,000 $0.2688
  • 6,000 $0.2518
  • 9,000 $0.2439
  • 15,000 $0.2319
  • 21,000 $0.2307
$0.2307 / $0.2688 Buy Now
DISTI # 70438915
RS Transistor NPN 60V 5.5A SOT23F Min Qty: 10 Package Multiple: 1 Container: Bulk 0
  • 10 $1.1700
  • 100 $1.1200
  • 500 $1.0400
  • 1,000 $0.9900
$0.9900 / $1.1700 RFQ
DISTI # ZXTN19060CFFTA
IBS Electronics ZXTN19060CFF SERIES NPN 60 V 5.5 A HIGH GAIN POWER TRANSISTOR SMT - SOT-23F Min Qty: 3000 Package Multiple: 1 120000
  • 3,000 $0.1885
  • 6,000 $0.1859
  • 9,000 $0.1846
  • 12,000 $0.1833
  • 15,000 $0.1807
$0.1807 / $0.1885 Buy Now
DISTI # ZXTN19060CFFTA
Avnet Asia Trans GP BJT NPN 60V 5.5A 3-Pin SOT-23F T/R (Alt: ZXTN19060CFFTA) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 20 Weeks, 0 Days 0
  • 3,000 $0.2439
  • 6,000 $0.2431
  • 9,000 $0.2423
  • 15,000 $0.2416
  • 30,000 $0.2392
$0.2392 / $0.2439 Buy Now
DISTI # ZXTN19060CFFTA
Avnet Silica Trans GP BJT NPN 60V 55A 3Pin SOT23F TR (Alt: ZXTN19060CFFTA) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 10 Weeks, 0 Days Silica - 6000
Buy Now
New Advantage Corporation ZXTN19060CFF Series NPN 60 V 5.5 A High Gain Power Transistor SMT - SOT-23F RoHS: Compliant Min Qty: 1 Package Multiple: 3000 96000
  • 3,000 $0.2417
  • 96,000 $0.2231
$0.2231 / $0.2417 Buy Now

Part Details for ZXTN19060CFFTA

ZXTN19060CFFTA CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

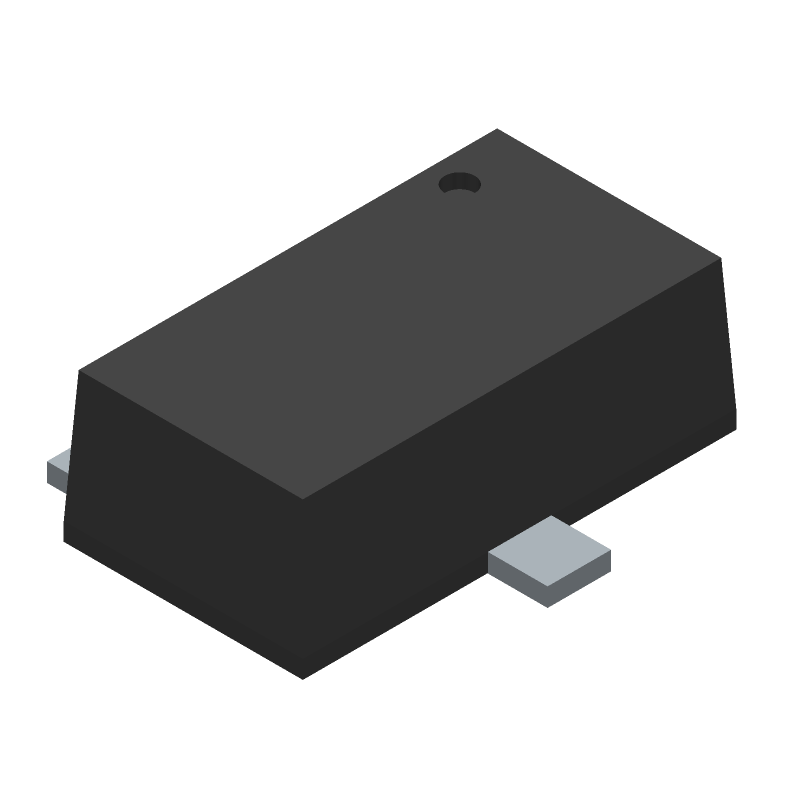

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ZXTN19060CFFTA Part Data Attributes

Parametric Data
ZXTN19060CFFTA Diodes Incorporated
Buy Now Datasheet
Compare Parts:
ZXTN19060CFFTA Diodes Incorporated Small Signal Bipolar Transistor, 5.5A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, SOT-23F, 3 PIN
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer DIODES INC
Part Package Code SOT-23F
Package Description SOT-23F, 3 PIN
Pin Count 3
Reach Compliance Code compliant
ECCN Code EAR99
Factory Lead Time 12 Weeks
kg CO2e/kg 8.8
Average Weight (mg) 10.2
CO2e (mg) 89.76
Samacsys Description Diodes Inc ZXTN19060CFFTA NPN Bipolar Transistor, 5.5 A, 60 V, 3-Pin SOT-23F
Samacsys Manufacturer Diodes Incorporated
Samacsys Modified On 2023-03-07 16:10:32
Total Weight 11.602
Category CO2 Kg 8.8
CO2 102.09760000000001
EU RoHS Version RoHS 2 (2015/863/EU)
Candidate List Date 2024-11-07
CAS Accounted for Wt 97
CA Prop 65 Presence YES
CA Prop 65 CAS Numbers 1333-86-4, 1309-64-4
EFUP e
Conflict Mineral Status DRC Conflict Free
Conflict Mineral Status Source CMRT V6.40
Collector Current-Max (IC) 5.5 A
Collector-Emitter Voltage-Max 60 V
Configuration SINGLE
DC Current Gain-Min (hFE) 30
JESD-30 Code R-PDSO-F3
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 3
Operating Temperature-Max 150 °C
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type NPN
Power Dissipation-Max (Abs) 2 W
Qualification Status Not Qualified
Surface Mount YES
Terminal Finish MATTE TIN
Terminal Form FLAT
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Transistor Element Material SILICON
Transition Frequency-Nom (fT) 130 MHz
Turn-off Time-Max (toff) 159.1 ns
Turn-on Time-Max (ton) 40.5 ns

ZXTN19060CFFTA Related Parts

ZXTN19060CFFTA Frequently Asked Questions (FAQ)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are recommended for optimal thermal performance.

  • The device requires a stable input voltage and a proper biasing circuit to ensure optimal performance. A voltage regulator and a bias resistor network can be used to achieve this.

  • Handle the device in an ESD-controlled environment, wear an ESD strap, and use ESD-safe tools and materials to prevent damage. Avoid touching the device pins or exposing it to static electricity.

  • The device is rated for operation up to 150°C. However, the maximum junction temperature should not exceed 150°C to ensure reliability and prevent thermal runaway.

  • Use a multimeter to measure voltage and current, and an oscilloscope to analyze waveforms. Check for proper biasing, input voltage, and thermal management. Consult the datasheet and application notes for troubleshooting guidelines.
