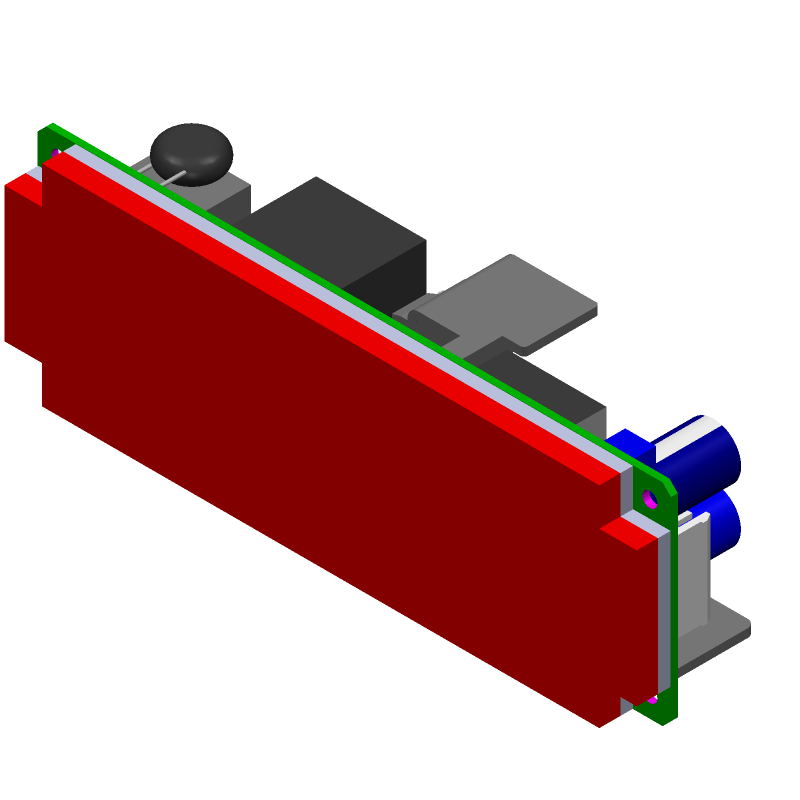

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for ZWS75BAF-12/CO2 by TDK-Lambda Corporation
Results Overview of ZWS75BAF-12/CO2 by TDK-Lambda Corporation
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
ZWS75BAF-12/CO2 Information
ZWS75BAF-12/CO2 by TDK-Lambda Corporation is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for ZWS75BAF-12/CO2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
41T5639
|
Newark | Ac-Dc Conv, Enclosed, 1 O/P, 75W, 6.3A, 12V, No. Of Outputs:1Outputs, Output Power Max:75W, Output Voltage - Output 1:12V, Power Supply Output Type:Adjustable, Fixed, Product Range:Zws-Baf Series, Height:33.02Mm, Length:149.86Mm Rohs Compliant: Yes |Tdk-Lambda ZWS75BAF-12/CO2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$82.7800 / $95.3100 | Buy Now |
|
DISTI #
ZWS75BAF-12/CO2-ND
|
DigiKey | AC/DC CONVERTER 12V 75W Min Qty: 1 Lead time: 15 Weeks Container: Bulk | Temporarily Out of Stock |
|
$91.7400 | Buy Now |
|
DISTI #
967-ZWS75BAF-12/CO2
|
Mouser Electronics | Switching Power Supplies 12V 6.3A, 75.6W Conformal Coating RoHS: Compliant | 0 |
|
$79.2100 / $91.7400 | Order Now |
|
DISTI #
70564577
|
RS | Power Supply, AC-DC, 75.6W75.6W85265VACACDC,115230VAC, Output 12V 6.3A,75.6W Min Qty: 1 Package Multiple: 1 Lead time: 15 Weeks, 0 Days Container: Bulk | 0 |
|
$85.3200 / $91.7400 | RFQ |
|
|
Onlinecomponents.com | AC-DC Power Supply - 75W - 12VDC - Open Frame - Conformal Coated PCB RoHS: Compliant | 0 |
|
$79.2100 / $91.7400 | Buy Now |
|
DISTI #
000000000005402058
|
Sager | Switching Power Supplies 12V 6.3A, 75.6W Conformal Coating Min Qty: 1 | 0 |
|
$79.2100 / $91.7400 | Buy Now |
Part Details for ZWS75BAF-12/CO2
ZWS75BAF-12/CO2 CAD Models
ZWS75BAF-12/CO2 Part Data Attributes
|
|
ZWS75BAF-12/CO2
TDK-Lambda Corporation
Buy Now
Datasheet
|
Compare Parts:
ZWS75BAF-12/CO2
TDK-Lambda Corporation
AC/DC CONVERTER 12V 75W
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Transferred | |
| Ihs Manufacturer | TDK-LAMBDA CORP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| Samacsys Manufacturer | TDK Lambda | |
| Analog IC - Other Type | AC-DC REGULATED POWER SUPPLY MODULE |
ZWS75BAF-12/CO2 Frequently Asked Questions (FAQ)
-
The recommended input fuse rating is 2A slow-blow type, but it's always best to consult with the manufacturer or a qualified electrical engineer for specific application requirements.
-
The ZWS75BAF-12/CO2 is designed to operate up to 2000 meters above sea level. For higher altitudes, derating may be necessary. Consult with the manufacturer for specific guidance.
-
The MTBF rating for the ZWS75BAF-12/CO2 is approximately 550,000 hours at 25°C, calculated according to MIL-HDBK-217F.
-
The ZWS75BAF-12/CO2 is not certified for use in hazardous locations. If you need a power supply for a hazardous location, consult with the manufacturer or a qualified electrical engineer for a suitable alternative.
-
The maximum recommended DC output cable length is 1 meter. Longer cables may cause voltage drops and affect the power supply's performance.
