Power Field-Effect Transistor, 1A I(D), 60V, 1ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET,

Part Details for ZVN4206GVTA by Diodes Incorporated

Results Overview of ZVN4206GVTA by Diodes Incorporated

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Energy and Power Systems Transportation and Logistics Renewable Energy Automotive

ZVN4206GVTA Information

ZVN4206GVTA by Diodes Incorporated is a Power Field-Effect Transistor.
Power Field-Effect Transistors are under the broader part category of Transistors.

A transistor is a small semiconductor device used to amplify, control, or create electrical signals. When selecting a transistor, factors such as voltage, current rating, gain, and power dissipation must be considered, with common types. Read more about Transistors on our Transistors part category page.

Price & Stock for ZVN4206GVTA

Part # Distributor Description Stock Price Buy
DISTI # ZVN4206GVCT-ND
DigiKey MOSFET N-CH 60V 1A SOT223 Min Qty: 1 Lead time: 12 Weeks Container: Cut Tape (CT), Tape & Reel (TR) 16590
In Stock
  • 1 $1.2300
  • 10 $0.8650
  • 100 $0.6253
  • 500 $0.5022
  • 1,000 $0.3876
  • 2,000 $0.3794
  • 3,000 $0.3774
  • 5,000 $0.3687
  • 7,000 $0.3596
$0.3596 / $1.2300 Buy Now
DISTI # ZVN4206GVTA
Avnet Americas Power MOSFET, N Channel, 60 V, 1 A, 1 ohm, SOT-223, Surface Mount - Tape and Reel (Alt: ZVN4206GVTA) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel 36000 Factory Stock
  • 1,000 $0.3596
  • 2,000 $0.3506
  • 4,000 $0.3488
  • 6,000 $0.3470
  • 8,000 $0.3452
$0.3452 / $0.3596 Buy Now
DISTI # 522-ZVN4206GVTA
Mouser Electronics MOSFETs N-Chnl 60V RoHS: Compliant 3329
  • 1 $1.2100
  • 10 $0.8480
  • 100 $0.6130
  • 500 $0.5030
  • 1,000 $0.3800
  • 2,000 $0.3720
  • 5,000 $0.3680
$0.3680 / $1.2100 Buy Now
DISTI # V72:2272_06707899
Arrow Electronics Trans MOSFET N-CH 60V 1A 4-Pin(3+Tab) SOT-223 T/R Min Qty: 222 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2304 Container: Cut Strips Americas - 227
  • 222 $0.4511
$0.4511 Buy Now
Future Electronics ZVN4206G Series 60 V 1 Ohm N-Channel Enhancement Mode Vertical DMOS FET SOT-223 RoHS: Compliant pbFree: Yes Min Qty: 1000 Package Multiple: 1000 Lead time: 12 Weeks Container: Reel 2000
Reel
  • 1,000 $0.4750
  • 2,000 $0.4650
  • 4,000 $0.4600
$0.4600 / $0.4750 Buy Now
Bristol Electronics   250
RFQ
Future Electronics ZVN4206G Series 60 V 1 Ohm N-Channel Enhancement Mode Vertical DMOS FET SOT-223 Min Qty: 1000 Package Multiple: 1000 2000
null
  • 1,000 $0.4750
  • 2,000 $0.4650
  • 4,000 $0.4600
$0.4600 / $0.4750 Buy Now
DISTI # ZVN4206GVTA
Avnet Silica Power MOSFET N Channel 60 V 1 A 1 ohm SOT223 Surface Mount (Alt: ZVN4206GVTA) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 10 Weeks, 0 Days Silica - 1000
Buy Now
New Advantage Corporation ZVN4206G Series 60 V 1 Ohm N-Channel Enhancement Mode Vertical DMOS FET SOT-223 RoHS: Compliant Min Qty: 1 Package Multiple: 1000 2000
  • 1,000 $0.7917
  • 2,000 $0.7308
$0.7308 / $0.7917 Buy Now

Part Details for ZVN4206GVTA

ZVN4206GVTA CAD Models

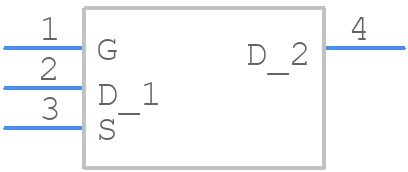

  • Part Symbol

    Part Symbol

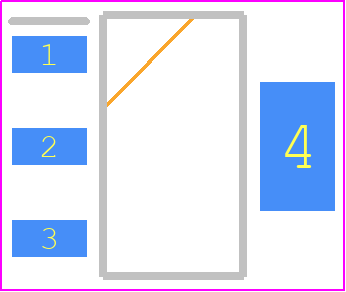

  • Footprint

    footprint

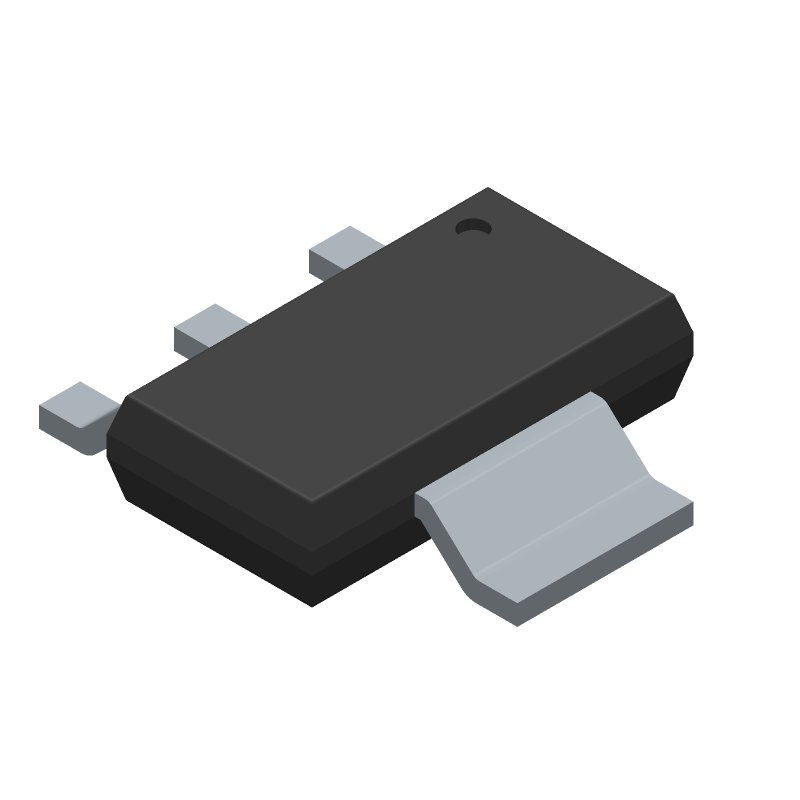

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

ZVN4206GVTA Part Data Attributes

Parametric Data
ZVN4206GVTA Diodes Incorporated
Buy Now Datasheet
Compare Parts:
ZVN4206GVTA Diodes Incorporated Power Field-Effect Transistor, 1A I(D), 60V, 1ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET,
Pbfree Code No
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer DIODES INC
Reach Compliance Code not_compliant
ECCN Code EAR99
Factory Lead Time 12 Weeks
Samacsys Manufacturer Diodes Incorporated
Additional Feature FAST SWITCHING
Case Connection DRAIN
Configuration SINGLE
DS Breakdown Voltage-Min 60 V
Drain Current-Max (ID) 1 A
Drain-source On Resistance-Max 1 Ω
FET Technology METAL-OXIDE SEMICONDUCTOR
JESD-30 Code R-PDSO-G4
JESD-609 Code e3
Moisture Sensitivity Level 1
Number of Elements 1
Number of Terminals 4
Operating Mode ENHANCEMENT MODE
Package Body Material PLASTIC/EPOXY
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Peak Reflow Temperature (Cel) 260
Polarity/Channel Type N-CHANNEL
Pulsed Drain Current-Max (IDM) 8 A
Qualification Status Not Qualified
Surface Mount YES
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Transistor Application SWITCHING
Transistor Element Material SILICON
