ZSSC4132CE4R Information
ZSSC4132CE4R by Renesas Electronics Corporation is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for ZSSC4132CE4R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
1833-ZSSC4132CE4RTR-ND
|
DigiKey | AUTOMOTIVE SENSOR SIGNAL CONDITI Min Qty: 5000 Lead time: 24 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$2.7795 | Buy Now |
|
DISTI #
ZSSC4132CE4R
|
Avnet Americas | AUTOMOTIVE SENSOR SIGNAL CONDITIONER IC WITH LIN INTERFACE - Tape and Reel (Alt: ZSSC4132CE4R) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 24 Weeks, 0 Days Container: Reel | 0 |
|
$3.8000 | Buy Now |
|
DISTI #
964-ZSSC4132CE4R
|
Mouser Electronics | Sensor Interface PQFN / 24 / 4X4MM SF - TAPE&REEL - 13" RoHS: Compliant | 0 |
|
$2.7700 | Order Now |
|
|
Future Electronics | ZSSC4132 Series 18 V Automotive Resistive Sensor Signal Conditioner - QFN-24 Min Qty: 1 Package Multiple: 1 |
8 null |
|
$2.1500 / $2.3700 | Buy Now |
Part Details for ZSSC4132CE4R

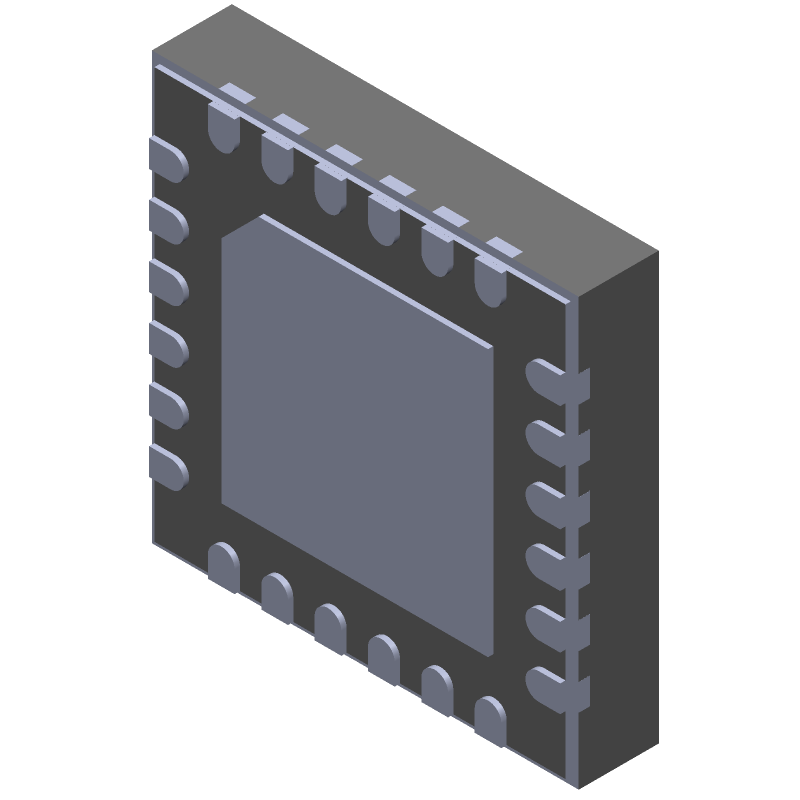

ZSSC4132CE4R CAD Models
ZSSC4132CE4R Part Data Attributes
|
|
ZSSC4132CE4R
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
ZSSC4132CE4R
Renesas Electronics Corporation
Automotive Sensor Signal Conditioner for a Single Resistive Bridge with integrated LIN PHY, VFQFPN0/Reel
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | VFQFPN | |
| Pin Count | 24 | |
| Manufacturer Package Code | NLG24S2 | |
| Reach Compliance Code | unknown | |
| ECCN Code | NLR | |
| HTS Code | 8542310001 | |
| Factory Lead Time | 24 Weeks | |
| Samacsys Manufacturer | Renesas Electronics | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| Moisture Sensitivity Level | 1 | |
| Peak Reflow Temperature (Cel) | 260 |
ZSSC4132CE4R Frequently Asked Questions (FAQ)
-
Renesas provides a recommended PCB layout in the application note 'ZSSC4132CE4R PCB Layout Guidelines' (document number R01AN4393EU0100). It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency signals.
-
Calibration of the ZSSC4132CE4R involves a two-point calibration process. First, apply a known pressure (e.g., atmospheric pressure) and measure the output voltage. Then, apply a second known pressure (e.g., a calibrated pressure point) and measure the output voltage. Use these two points to calculate the sensitivity and offset values. Refer to the datasheet and application notes for detailed calibration procedures.
-
The ZSSC4132CE4R has an operating temperature range of -40°C to 125°C. However, it's essential to note that the accuracy and performance of the device may degrade at extreme temperatures. Consult the datasheet and application notes for temperature-related specifications and guidelines.
-
The ZSSC4132CE4R is designed for low-pressure applications (up to 150 kPa). For high-pressure applications, consider using a different pressure sensor from Renesas, such as the ZSSC4152CE4R, which is designed for higher pressure ranges (up to 1000 kPa).
-
To minimize EMI effects, follow proper PCB design and layout practices, such as using a ground plane, shielding, and decoupling capacitors. Additionally, consider using EMI filters or shielding on the device and its connections. Renesas provides guidelines for EMI mitigation in their application notes and datasheets.
