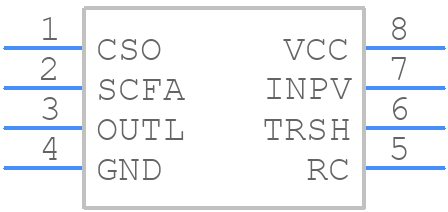

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for XR4151CP-F by Exar Corporation
Results Overview of XR4151CP-F by Exar Corporation
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Communication and Networking
XR4151CP-F Information
XR4151CP-F by Exar Corporation is an Analog Special Function Converter.
Analog Special Function Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Part Details for XR4151CP-F
XR4151CP-F CAD Models
XR4151CP-F Part Data Attributes
|
|
XR4151CP-F
Exar Corporation
Buy Now
Datasheet
|
Compare Parts:
XR4151CP-F
Exar Corporation
Voltage to Frequency Converter, 1 Func, PDIP8, 0.300 INCH, LEAD FREE, PLASTIC, DIP-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | EXAR CORP | |
| Part Package Code | DIP | |
| Package Description | 0.300 INCH, LEAD FREE, PLASTIC, DIP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | EXAR | |
| Converter Type | VOLTAGE TO FREQUENCY CONVERTER | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e3 | |
| Length | 9.88 mm | |
| Linearity Error-Max (EL) | 0.05% | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Frequency-Max | 0.1 MHz | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Positive Input Voltage-Max | 12 V | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.33 mm | |
| Supply Current-Max | 7.5 mA | |
| Supply Voltage-Max | 22 V | |
| Supply Voltage-Min | 8 V | |
| Supply Voltage-Nom | 15 V | |
| Surface Mount | NO | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | MATTE TIN | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
