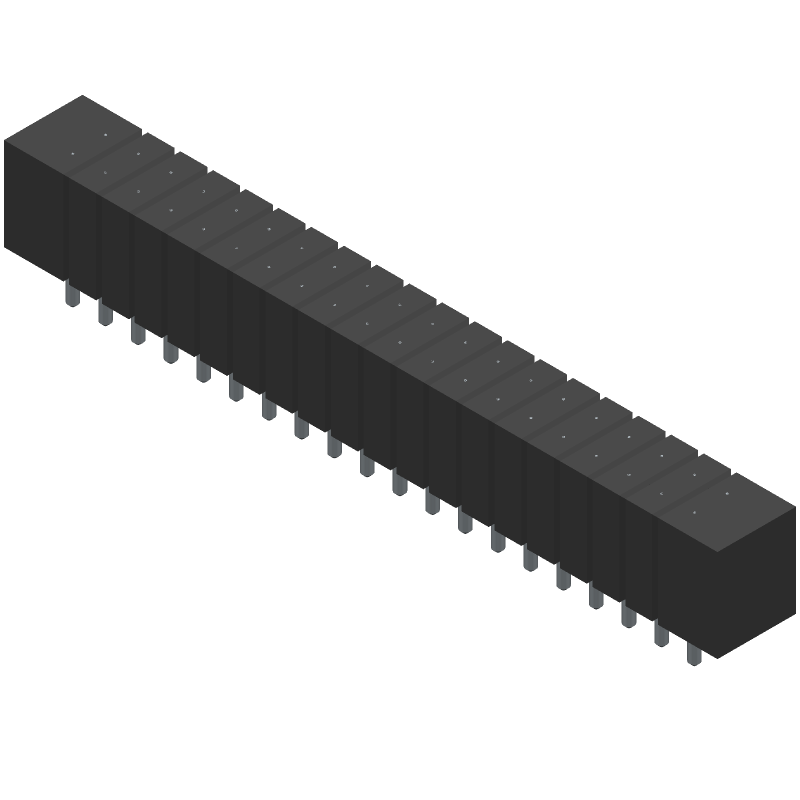

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for XG4H-4031-1 by OMRON Electronic Components LLC
Results Overview of XG4H-4031-1 by OMRON Electronic Components LLC
- Distributor Offerings: (0 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
XG4H-4031-1 Information
XG4H-4031-1 by OMRON Electronic Components LLC is a Header and Edge Type Connector.
Headers and Edge Type Connectors are under the broader part category of Connectors.
Connectors are devices that join electrical termination points to form circuits. With various types designed for specific functions like data, power, or signal transmission, choosing the right connector is essential for compatibility and device performance. Read more about Connectors on our Connectors part category page.
Part Details for XG4H-4031-1
XG4H-4031-1 CAD Models
XG4H-4031-1 Part Data Attributes
|
|
XG4H-4031-1
OMRON Electronic Components LLC
Buy Now
Datasheet
|
Compare Parts:
XG4H-4031-1
OMRON Electronic Components LLC
Board Connector
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | OMRON CORP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 14 Weeks | |
| Samacsys Manufacturer | Omron Electronics | |
| Additional Feature | STANDARD: MIL-C-83503 | |
| Body Breadth | 0.24 inch | |
| Body Depth | 0.283 inch | |
| Body Length | 2.181 inch | |
| Body/Shell Style | SOCKET | |
| Connector Type | BOARD CONNECTOR | |
| Contact Finish Mating | NOT SPECIFIED | |
| Contact Finish Termination | Tin (Sn) | |
| Contact Gender | FEMALE | |
| Contact Material | NOT SPECIFIED | |
| Contact Pattern | RECTANGULAR | |
| Contact Resistance | 20 mΩ | |
| Contact Style | SQ PIN-SKT | |
| Dielectric Withstanding Voltage | 500VAC V | |
| Durability | 50 Cycles | |
| Filter Feature | NO | |
| Insertion Force-Max | 1.96 N | |
| Insulation Resistance | 1000000000 Ω | |
| Insulator Color | BLACK | |
| Insulator Material | GLASS FILLED POLYBUTYLENE TEREPHTHALATE | |
| JESD-609 Code | e3 | |
| Mating Contact Pitch | 0.1 inch | |
| Mating Contact Row Spacing | 0.1 inch | |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE | |
| Mixed Contacts | NO | |
| Mounting Option 1 | LOCKING | |
| Mounting Style | STRAIGHT | |
| Mounting Type | BOARD | |
| Number Of Connectors | ONE | |
| Number Of PCB Rows | 2 | |
| Number of Rows Loaded | 2 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -55 °C | |
| Option | GENERAL PURPOSE | |
| PCB Contact Pattern | RECTANGULAR | |
| PCB Contact Row Spacing | 2.54 mm | |
| Plating Thickness | 6u inch | |
| Polarization Key | POLARIZED KEY | |
| Rated Current (Signal) | 3 A | |
| Reference Standard | MIL; UL | |
| Terminal Length | 0.122 inch | |
| Terminal Pitch | 2.54 mm | |
| Termination Type | SOLDER | |
| Total Number of Contacts | 40 | |
| UL Flammability Code | 94V-0 | |
| Withdrawl Force-Min | 0.39 N |
XG4H-4031-1 Frequently Asked Questions (FAQ)
-
The recommended storage temperature for XG4H-4031-1 is -20°C to 60°C (-4°F to 140°F).
-
Yes, XG4H-4031-1 is designed to operate in humid environments, but it's recommended to follow the manufacturer's guidelines for humidity levels to ensure optimal performance.
-
The maximum operating frequency for XG4H-4031-1 is 100 kHz. Exceeding this frequency may affect the sensor's accuracy and reliability.
-
Calibration of XG4H-4031-1 typically involves adjusting the sensor's output to match the desired measurement range. Refer to the manufacturer's calibration guide or consult with an OMRON representative for specific calibration procedures.
-
Yes, XG4H-4031-1 is compatible with a 5V power supply. However, ensure that the power supply meets the recommended voltage and current requirements to avoid damage to the sensor.
