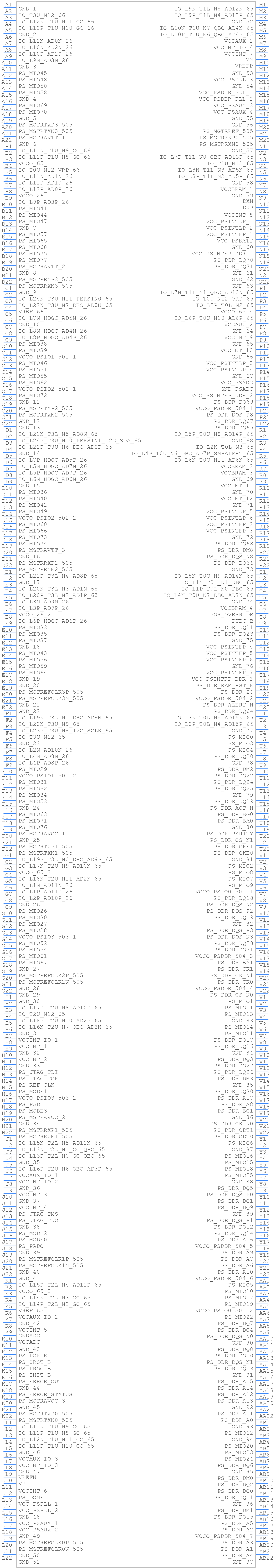

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for XCZU2EG-L1SBVA484I by AMD
Results Overview of XCZU2EG-L1SBVA484I by AMD
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
XCZU2EG-L1SBVA484I Information
XCZU2EG-L1SBVA484I by AMD is an Other uP/uC/Peripheral IC.
Other uPs/uCs/Peripheral ICs are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for XCZU2EG-L1SBVA484I
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
122-2053-ND
|
DigiKey | IC SOC CORTEX-A53 484FCBGA Min Qty: 1 Lead time: 16 Weeks Container: Tray |
6 In Stock |
|
$469.3000 | Buy Now |
|
DISTI #
XCZU2EG-L1SBVA484I
|
Avnet Americas | - Trays (Alt: XCZU2EG-L1SBVA484I) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 0 Days Container: Tray | 0 |
|
$429.5900 | Buy Now |
|
DISTI #
217-ZU2EG-L1SBVA484I
|
Mouser Electronics | SoC FPGA XCZU2EG-L1SBVA484I RoHS: Compliant | 3 |
|
$469.2500 | Buy Now |
Part Details for XCZU2EG-L1SBVA484I
XCZU2EG-L1SBVA484I CAD Models
XCZU2EG-L1SBVA484I Part Data Attributes
|
|
XCZU2EG-L1SBVA484I
AMD
Buy Now
Datasheet
|
Compare Parts:
XCZU2EG-L1SBVA484I
AMD
Programmable SoC, CMOS, PBGA484,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ADVANCED MICRO DEVICES INC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 16 Weeks | |
| Samacsys Manufacturer | AMD | |
| Additional Feature | ALSO AVAILABLE WITH 0.85V NOMINAL SUPPLY | |
| JESD-30 Code | R-PBGA-B484 | |
| JESD-609 Code | e1 | |
| Moisture Sensitivity Level | 4 | |
| Number of Terminals | 484 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | BGA | |
| Package Shape | RECTANGULAR | |
| Package Style | GRID ARRAY | |
| Supply Voltage-Max | 0.742 V | |
| Supply Voltage-Min | 0.698 V | |
| Supply Voltage-Nom | 0.72 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Position | BOTTOM | |
| uPs/uCs/Peripheral ICs Type | PROGRAMMABLE SoC |
XCZU2EG-L1SBVA484I Frequently Asked Questions (FAQ)
-
AMD provides a PCB design guide and layout recommendations in the UG583 document, which includes guidelines for signal integrity, power distribution, and thermal management.
-
To optimize power consumption, use the Xilinx Power Estimator (XPE) tool to estimate power consumption, and then apply power-saving techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS).
-
The IBERT in the XCZU2EG-L1SBVA484I has limitations on the number of lanes, data transfer rates, and supported PCIe specifications. Refer to the PG201 document for detailed information on IBERT capabilities and limitations.
-
AMD provides a Security Manual (UG470) that outlines the security features and implementation guidelines for the XCZU2EG-L1SBVA484I. Additionally, use the Xilinx Vivado Design Suite to implement and verify the security features.
-
The XCZU2EG-L1SBVA484I has a maximum junction temperature of 100°C. Ensure proper thermal management by using a heat sink, thermal interface material, and following the thermal design guidelines in the UG583 document.
