Programmable Logic / Field Programmable Gate Arrays / XC7K70T-1FBG484C
Datasheets
XC7K70T-1FBG484C by:

Field Programmable Gate Array, 5125 CLBs, 1098MHz, 65600-Cell, CMOS, PBGA484,

Part Details for XC7K70T-1FBG484C by AMD

Results Overview of XC7K70T-1FBG484C by AMD

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

XC7K70T-1FBG484C Information

XC7K70T-1FBG484C by AMD is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.

Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.

Price & Stock for XC7K70T-1FBG484C

Part # Distributor Description Stock Price Buy
DISTI # 32AC9826
Newark Fpga, Kintex-7, 285 I/O, Fcbga-484, Fpga Type:-, No. Of Logic Cells:65600Logic Cells, Ic Case/Package:Fcbga, No. Of Pins:484Pins, Speed Grade:1, No.of User I/Os:285I/O S, Process Technology:28Nm (Hkmg), Ic Mounting:Surface Mount Rohs Compliant: Yes |Amd XC7K70T-1FBG484C RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk 157
  • 1 $200.0000
$200.0000 Buy Now
DISTI # 122-1814-ND
DigiKey IC FPGA 285 I/O 484FCBGA Min Qty: 1 Lead time: 16 Weeks Container: Tray 1195
In Stock
  • 1 $200.0000
$200.0000 Buy Now
DISTI # XC7K70T-1FBG484C
Avnet Americas FPGA, KIntex-7, MMCM, PLL, 285 I/O's, 400 MHz, 65600 Cells, 970 mV to 1.03 V, FCBGA-484, NCNR - Trays (Alt: XC7K70T-1FBG484C) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 0 Days Container: Tray 0
  • 1 $196.0000
$196.0000 Buy Now
DISTI # 217-XC7K70T-1FBG484C
Mouser Electronics FPGA - Field Programmable Gate Array XC7K70T-1FBG484C RoHS: Compliant 208
  • 1 $200.0000
$200.0000 Buy Now
DISTI # XC7K70T-1FBG484C
Avnet Asia FPGA, KIntex-7, MMCM, PLL, 285 I/O's, 400 MHz, 65600 Cells, 970 mV to 1.03 V, FCBGA-484, NCNR (Alt: XC7K70T-1FBG484C) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 16 Weeks, 0 Days 0
  • 1 $210.5263
  • 2 $207.7922
  • 3 $205.1282
  • 5 $202.5317
  • 10 $197.5308
  • 25 $192.7711
  • 50 $188.2353
$188.2353 / $210.5263 Buy Now
DISTI # XC7K70T-1FBG484C
Avnet Silica FPGA KIntex7 MMCM PLL 285 IOs 400 MHz 65600 Cells 970 mV to 103 V FCBGA484 NCNR (Alt: XC7K70T-1FBG484C) RoHS: Compliant Min Qty: 1 Package Multiple: 60 Lead time: 17 Weeks, 0 Days Silica - 0
Buy Now
DISTI # XC7K70T-1FBG484C
EBV Elektronik FPGA KIntex7 MMCM PLL 285 IOs 400 MHz 65600 Cells 970 mV to 103 V FCBGA484 NCNR (Alt: XC7K70T-1FBG484C) RoHS: Compliant Min Qty: 4 Package Multiple: 60 Lead time: 18 Weeks, 0 Days EBV - 0
Buy Now
Win Source Electronics IC FPGA 285 I/O 484FCBGA 2880
  • 1 $47.3611
  • 2 $44.3055
  • 3 $42.7778
  • 4 $39.7222
  • 5 $38.1945
  • 6 $36.6667
$36.6667 / $47.3611 Buy Now

Part Details for XC7K70T-1FBG484C

XC7K70T-1FBG484C CAD Models

  • Part Symbol

    Part Symbol

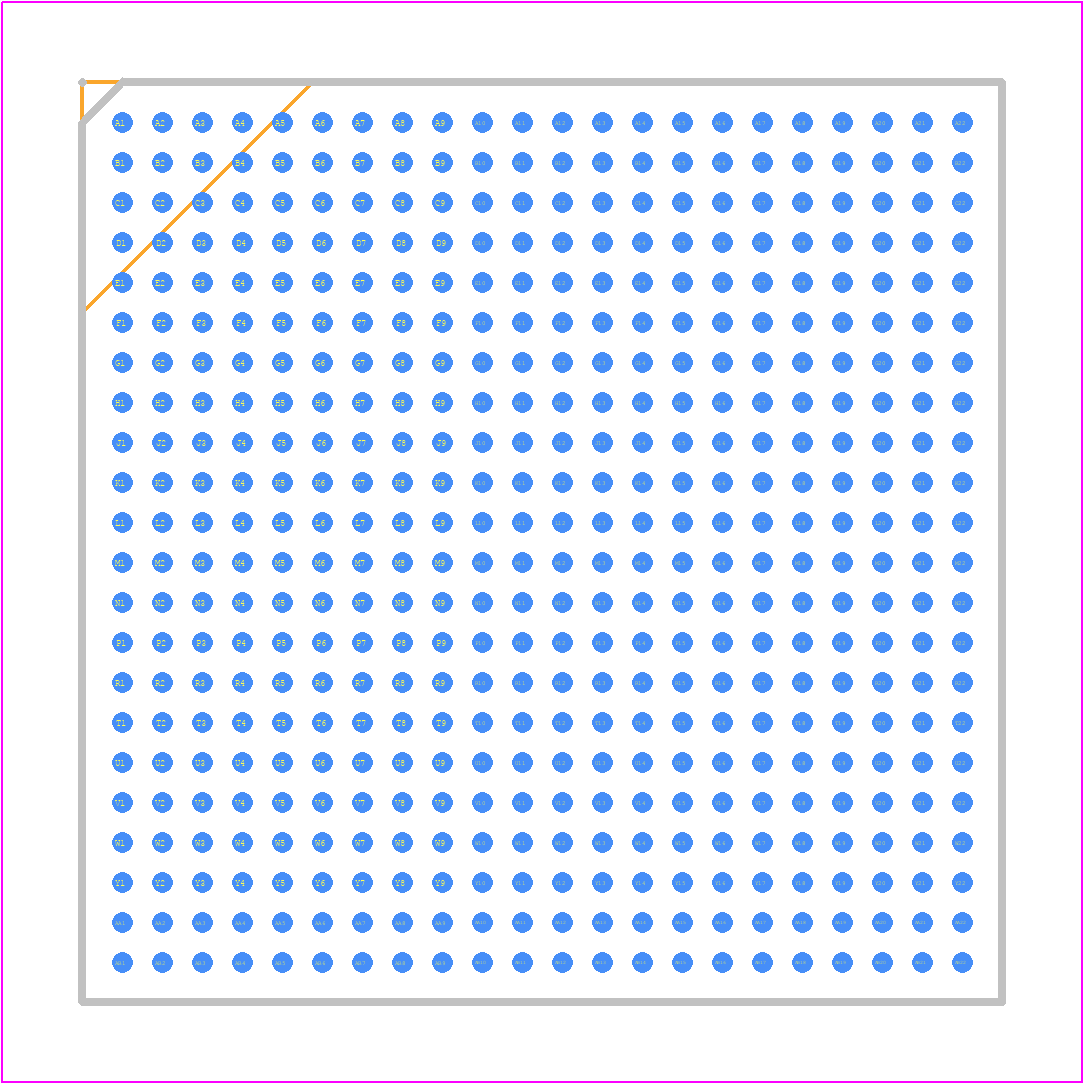

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

XC7K70T-1FBG484C Part Data Attributes

Parametric Data
XC7K70T-1FBG484C AMD
Buy Now Datasheet
Compare Parts:
XC7K70T-1FBG484C AMD Field Programmable Gate Array, 5125 CLBs, 1098MHz, 65600-Cell, CMOS, PBGA484,
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer ADVANCED MICRO DEVICES INC
Package Description BGA-484
Reach Compliance Code compliant
Factory Lead Time 16 Weeks
Samacsys Manufacturer AMD
Clock Frequency-Max 1098 MHz
Combinatorial Delay of a CLB-Max 0.3 ns
JESD-30 Code S-PBGA-B484
JESD-609 Code e1
Length 23 mm
Moisture Sensitivity Level 4
Number of CLBs 5125
Number of Inputs 285
Number of Logic Cells 65600
Number of Outputs 285
Number of Terminals 484
Operating Temperature-Max 85 °C
Operating Temperature-Min
Organization 5125 CLBS
Package Body Material PLASTIC/EPOXY
Package Code BGA
Package Equivalence Code BGA484,22X22,40
Package Shape SQUARE
Package Style GRID ARRAY
Peak Reflow Temperature (Cel) 250
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Qualification Status Not Qualified
Seated Height-Max 2.54 mm
Supply Voltage-Max 1.03 V
Supply Voltage-Min 0.97 V
Supply Voltage-Nom 1 V
Surface Mount YES
Technology CMOS
Temperature Grade OTHER
Terminal Finish TIN SILVER COPPER
Terminal Form BALL
Terminal Pitch 1 mm
Terminal Position BOTTOM
Time@Peak Reflow Temperature-Max (s) 30
Width 23 mm

Alternate Parts for XC7K70T-1FBG484C

This table gives cross-reference parts and alternative options found for XC7K70T-1FBG484C. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of XC7K70T-1FBG484C, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
XC7K70T-1FBG484I AMD $209.4306 Field Programmable Gate Array, 5125 CLBs, 1098MHz, 65600-Cell, CMOS, PBGA484, XC7K70T-1FBG484C vs XC7K70T-1FBG484I
Part Number Manufacturer Composite Price Description Compare
XC7K70T-1FBG676I AMD $248.2712 Field Programmable Gate Array, 5125 CLBs, 1098MHz, 65600-Cell, CMOS, PBGA676, XC7K70T-1FBG484C vs XC7K70T-1FBG676I
XC7K70T-1FBV484C AMD Xilinx Check for Price Field Programmable Gate Array, 5125 CLBs, PBGA484, FBGA-484 XC7K70T-1FBG484C vs XC7K70T-1FBV484C
XC7K70T-1FB676C AMD Check for Price Field Programmable Gate Array, 1818MHz, 65600-Cell, CMOS, PBGA676, XC7K70T-1FBG484C vs XC7K70T-1FB676C
XC7K70T-1FB676I AMD Check for Price Field Programmable Gate Array, 1818MHz, 65600-Cell, CMOS, PBGA676, XC7K70T-1FBG484C vs XC7K70T-1FB676I
XC7K70T-1FBG676C AMD Check for Price Field Programmable Gate Array, 5125 CLBs, 1098MHz, 65600-Cell, CMOS, PBGA676, XC7K70T-1FBG484C vs XC7K70T-1FBG676C

XC7K70T-1FBG484C Related Parts

XC7K70T-1FBG484C Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the XC7K70T is 500 MHz.

  • You can implement DDR3 memory interface with XC7K70T using the MIG (Memory Interface Generator) tool provided by Xilinx. The tool generates a customized IP core for the DDR3 interface.

  • The power consumption of XC7K70T depends on the operating frequency, voltage, and other factors. According to the datasheet, the typical power consumption is around 1.5W at 100 MHz and 1.2V.

  • Yes, XC7K70T is suitable for high-reliability applications. It has features like single-event upset (SEU) mitigation, error correction, and built-in self-test (BIST) capabilities.

  • To optimize the design for area and speed with XC7K70T, use the Vivado Design Suite, which provides tools like synthesis, mapping, and placement. You can also use the Xilinx Power Estimator (XPE) to estimate power consumption and optimize the design accordingly.
