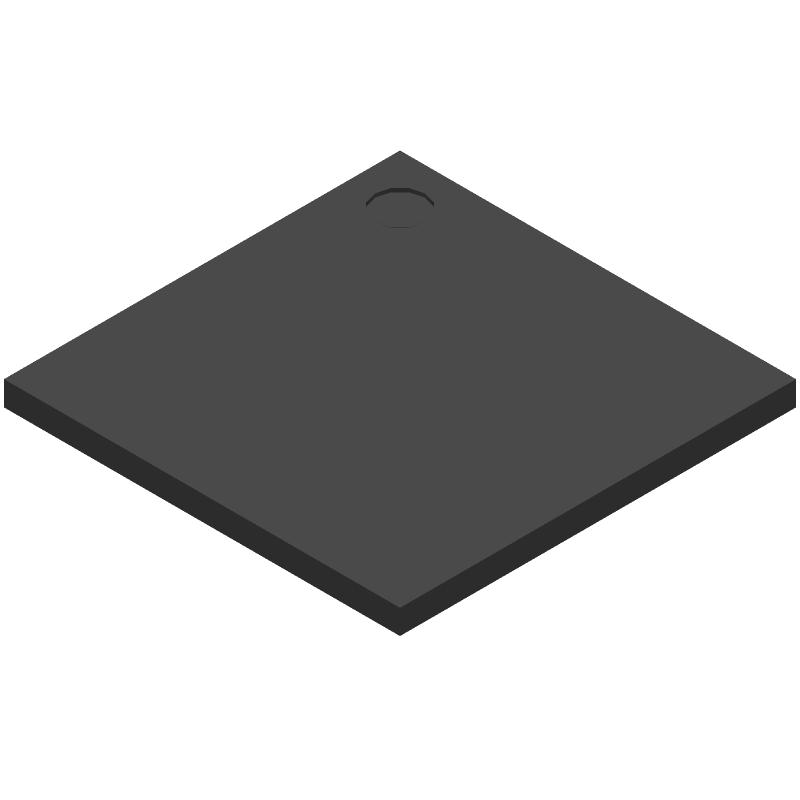

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for XC7A35T-2FTG256C by AMD
Results Overview of XC7A35T-2FTG256C by AMD
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (8 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
XC7A35T-2FTG256C Information
XC7A35T-2FTG256C by AMD is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.
Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.
Price & Stock for XC7A35T-2FTG256C
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
47AC6465
|
Newark | Fpga, 33280 Logic Cells, Ftbga-256, Fpga Type:Sram Based Fpga, No. Of Logic Cells:33280Logic Cells, Ic Case/Package:Ftbga, No. Of Pins:256Pins, Speed Grade:2, No.of User I/Os:100I/O S, Process Technology:28Nm (Hkmg) Rohs Compliant: Yes |Amd XC7A35T-2FTG256C RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$51.2300 | Buy Now |
|
DISTI #
122-2203-ND
|
DigiKey | IC FPGA 170 I/O 256FTBGA Min Qty: 1 Lead time: 16 Weeks Container: Tray |
48 In Stock |
|
$51.2400 | Buy Now |
|
DISTI #
XC7A35T-2FTG256C
|
Avnet Americas | - Trays (Alt: XC7A35T-2FTG256C) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 0 Days Container: Tray | 0 |
|
$50.2054 | Buy Now |
|
DISTI #
217-XC7A35T-2FTG256C
|
Mouser Electronics | FPGA - Field Programmable Gate Array XC7A35T-2FTG256C RoHS: Compliant | 8 |
|
$51.2300 | Buy Now |
|
DISTI #
XC7A35T-2FTG256C
|
Avnet Asia | FPGA Artix-7 Family 33280 Cells 28nm Technology 1V 256-Pin FBGA (Alt: XC7A35T-2FTG256C) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 17 Weeks, 0 Days | 0 |
|
$43.0588 / $61.0000 | Buy Now |
|
DISTI #
XC7A35T-2FTG256C
|
Avnet Silica | (Alt: XC7A35T-2FTG256C) RoHS: Compliant Min Qty: 1 Package Multiple: 90 Lead time: 18 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
|
DISTI #
XC7A35T-2FTG256C
|
EBV Elektronik | (Alt: XC7A35T-2FTG256C) RoHS: Compliant Min Qty: 14 Package Multiple: 90 Lead time: 19 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for XC7A35T-2FTG256C
XC7A35T-2FTG256C CAD Models
XC7A35T-2FTG256C Part Data Attributes
|
|
XC7A35T-2FTG256C
AMD
Buy Now
Datasheet
|
Compare Parts:
XC7A35T-2FTG256C
AMD
Field Programmable Gate Array, 2600 CLBs, 1286MHz, 33280-Cell, PBGA256,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | ADVANCED MICRO DEVICES INC | |
| Package Description | BGA-256 | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 17 Weeks | |
| Samacsys Manufacturer | AMD | |
| Clock Frequency-Max | 1286 MHz | |
| Combinatorial Delay of a CLB-Max | 1.05 ns | |
| JESD-30 Code | S-PBGA-B256 | |
| JESD-609 Code | e1 | |
| Length | 17 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of CLBs | 2600 | |
| Number of Inputs | 170 | |
| Number of Logic Cells | 33280 | |
| Number of Outputs | 170 | |
| Number of Terminals | 256 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | ||
| Organization | 2600 CLBS | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFBGA | |
| Package Equivalence Code | BGA256,16X16,40 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Programmable Logic Type | FIELD PROGRAMMABLE GATE ARRAY | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.55 mm | |
| Supply Voltage-Max | 1.05 V | |
| Supply Voltage-Min | 0.95 V | |
| Supply Voltage-Nom | 1 V | |
| Surface Mount | YES | |
| Temperature Grade | OTHER | |
| Terminal Finish | TIN SILVER COPPER | |
| Terminal Form | BALL | |
| Terminal Pitch | 1 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 17 mm |
Alternate Parts for XC7A35T-2FTG256C
This table gives cross-reference parts and alternative options found for XC7A35T-2FTG256C. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of XC7A35T-2FTG256C, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| XC7A35T-2CSG324C | AMD | $61.8349 | Field Programmable Gate Array, 2600 CLBs, 1286MHz, 33280-Cell, PBGA324, | XC7A35T-2FTG256C vs XC7A35T-2CSG324C |
| XC7A35T-2CSG325C | AMD | $68.8799 | Field Programmable Gate Array, 2600 CLBs, 1286MHz, 33280-Cell, PBGA325, | XC7A35T-2FTG256C vs XC7A35T-2CSG325C |
| XC7A35T-2CSG324I | AMD | $80.3006 | Field Programmable Gate Array, 2600 CLBs, 1286MHz, 33280-Cell, PBGA324, | XC7A35T-2FTG256C vs XC7A35T-2CSG324I |
| XC7A35T-2FGG484C | AMD | $86.3593 | Field Programmable Gate Array, 2600 CLBs, 1286MHz, 33280-Cell, CMOS, PBGA484, | XC7A35T-2FTG256C vs XC7A35T-2FGG484C |
| XC7A35T-2FTG256I | AMD | Check for Price | Field Programmable Gate Array, 2600 CLBs, 1286MHz, 33280-Cell, PBGA256, | XC7A35T-2FTG256C vs XC7A35T-2FTG256I |
| XC7A35T-2CPG236I | AMD | Check for Price | Field Programmable Gate Array, 2600 CLBs, 1286MHz, 33280-Cell, PBGA236, | XC7A35T-2FTG256C vs XC7A35T-2CPG236I |
| XC7A35T-2CSG325I | AMD | Check for Price | Field Programmable Gate Array, 2600 CLBs, 1286MHz, 33280-Cell, PBGA325, | XC7A35T-2FTG256C vs XC7A35T-2CSG325I |
| XC7A35T-2CPG236C | AMD | Check for Price | Field Programmable Gate Array, 2600 CLBs, 1286MHz, 33280-Cell, PBGA236, | XC7A35T-2FTG256C vs XC7A35T-2CPG236C |
XC7A35T-2FTG256C Frequently Asked Questions (FAQ)
-
The maximum operating frequency of XC7A35T-2FTG256C is 350 MHz.
-
You can implement DDR3 memory interface using the MIG (Memory Interface Generator) tool provided by Xilinx. The tool generates a customized IP core for the DDR3 interface.
-
The power consumption of XC7A35T-2FTG256C depends on the operating frequency, voltage, and other factors. According to the datasheet, the typical power consumption is around 1.2W at 350 MHz.
-
Yes, XC7A35T-2FTG256C is suitable for high-reliability applications. It has a high MTBF (Mean Time Between Failures) and is designed to meet the requirements of aerospace, defense, and other high-reliability industries.
-
You can use Xilinx's ChipScope Pro tool for debugging and testing XC7A35T-2FTG256C-based designs. The tool provides a comprehensive set of features for debugging, testing, and verifying the design.
