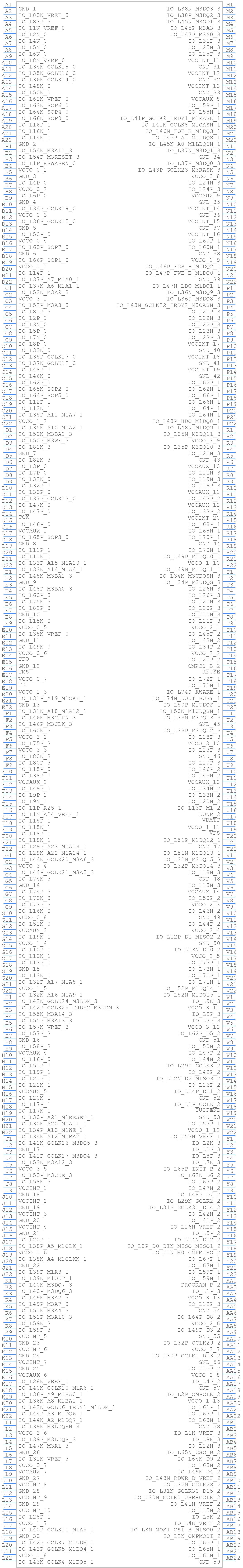

Part Symbol
-

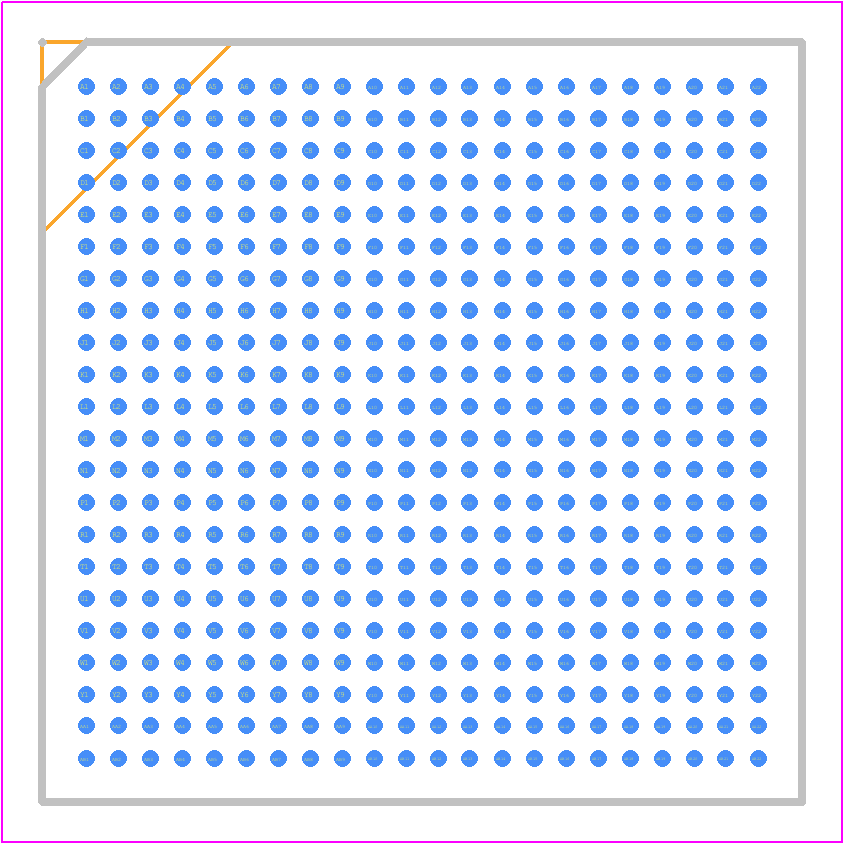

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Field Programmable Gate Array, 11519 CLBs, 667MHz, 147443-Cell, CMOS, PBGA484, 19 X 19 MM, 0.80 MM PITCH, LEAD FREE, BGA-484
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
XC6SLX150-2CSG484I by AMD is a Field Programmable Gate Array.
Field Programmable Gate Arrays are under the broader part category of Programmable Logic Devices.
Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.
Part # | Distributor | Description | Stock | Price | Buy | |
---|---|---|---|---|---|---|
DISTI #
XC6SLX150-2CSG484I-ND
|
DigiKey | IC FPGA 338 I/O 484CSBGA Min Qty: 84 Lead time: 12 Weeks Container: Tray | Temporarily Out of Stock |
|
$369.2000 | Buy Now |
DISTI #
XC6SLX150-2CSG484I
|
Avnet Americas | - Trays (Alt: XC6SLX150-2CSG484I) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 0 Days Container: Tray | 0 |
|
$328.7300 | Buy Now |
DISTI #
217-6SLX150-2CSG484I
|
Mouser Electronics | FPGA - Field Programmable Gate Array XC6SLX150-2CSG484I RoHS: Compliant | 3 |
|
$369.1700 | Buy Now |
DISTI #
XC6SLX150-2CSG484I
|
Avnet Asia | FPGA Spartan-6 LX Family 147443 Cells 45nm (CMOS) Technology 1.2V 484-Pin CSBGA (Alt: XC6SLX150-2CSG484I) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks, 0 Days | 0 |
|
$334.1177 / $373.6842 | Buy Now |
DISTI #
XC6SLX150-2CSG484I
|
Avnet Silica | (Alt: XC6SLX150-2CSG484I) RoHS: Compliant Min Qty: 1 Package Multiple: 84 Lead time: 13 Weeks, 0 Days | Silica - 0 |
|
Buy Now | |
DISTI #
XC6SLX150-2CSG484I
|
EBV Elektronik | (Alt: XC6SLX150-2CSG484I) RoHS: Compliant Min Qty: 2 Package Multiple: 84 Lead time: 14 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
|
XC6SLX150-2CSG484I
AMD
Buy Now
Datasheet
|
Compare Parts:
XC6SLX150-2CSG484I
AMD
Field Programmable Gate Array, 11519 CLBs, 667MHz, 147443-Cell, CMOS, PBGA484, 19 X 19 MM, 0.80 MM PITCH, LEAD FREE, BGA-484
|
Rohs Code | Yes | |
Part Life Cycle Code | Active | |
Ihs Manufacturer | ADVANCED MICRO DEVICES INC | |
Package Description | 19 X 19 MM, 0.80 MM PITCH, LEAD FREE, BGA-484 | |
Reach Compliance Code | compliant | |
Factory Lead Time | 12 Weeks | |
Samacsys Manufacturer | AMD | |
Clock Frequency-Max | 667 MHz | |
Combinatorial Delay of a CLB-Max | 0.26 ns | |
JESD-30 Code | S-PBGA-B484 | |
JESD-609 Code | e1 | |
Length | 19 mm | |
Moisture Sensitivity Level | 3 | |
Number of CLBs | 11519 | |
Number of Inputs | 330 | |
Number of Logic Cells | 147443 | |
Number of Outputs | 330 | |
Number of Terminals | 484 | |
Operating Temperature-Max | 100 °C | |
Operating Temperature-Min | -40 °C | |
Organization | 11519 CLBS | |
Package Body Material | PLASTIC/EPOXY | |
Package Code | FBGA | |
Package Equivalence Code | BGA484,22X22,32 | |
Package Shape | SQUARE | |
Package Style | GRID ARRAY, FINE PITCH | |
Peak Reflow Temperature (Cel) | 260 | |
Programmable Logic Type | FIELD PROGRAMMABLE GATE ARRAY | |
Qualification Status | Not Qualified | |
Seated Height-Max | 1.8 mm | |
Supply Voltage-Max | 1.26 V | |
Supply Voltage-Min | 1.14 V | |
Supply Voltage-Nom | 1.2 V | |
Surface Mount | YES | |
Technology | CMOS | |
Temperature Grade | INDUSTRIAL | |
Terminal Finish | TIN SILVER COPPER | |
Terminal Form | BALL | |
Terminal Pitch | 0.8 mm | |
Terminal Position | BOTTOM | |
Time@Peak Reflow Temperature-Max (s) | 30 | |
Width | 19 mm |
This table gives cross-reference parts and alternative options found for XC6SLX150-2CSG484I. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of XC6SLX150-2CSG484I, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
Part Number | Manufacturer | Composite Price | Description | Compare |
---|---|---|---|---|
XC6SLX150-2CSG484C | AMD | Check for Price | Field Programmable Gate Array, 11519 CLBs, 667MHz, 147443-Cell, CMOS, PBGA484, 19 X 19 MM, 0.80 MM PITCH, LEAD FREE, BGA-484 | XC6SLX150-2CSG484I vs XC6SLX150-2CSG484C |
The maximum operating frequency of the XC6SLX150 is dependent on the specific design and implementation. However, Xilinx provides a maximum clock frequency of 450 MHz for the -2 speed grade.
The XC6SLX150 has dedicated DDR3 memory interface blocks. You can use the Xilinx MIG (Memory Interface Generator) tool to generate a DDR3 interface core. The tool provides a GUI-based interface to configure and generate the core.
The power consumption of the XC6SLX150 depends on the specific design, operating frequency, and voltage. However, Xilinx provides a power estimator tool that can estimate the power consumption based on the design requirements.
Yes, the XC6SLX150 is suitable for high-reliability applications. Xilinx provides a range of features and tools to support high-reliability design, including SEU (Single Event Upset) mitigation, CRC (Cyclic Redundancy Check), and built-in self-test.
The XC6SLX150 has a PCIe endpoint block that can be used to implement a PCIe interface. You can use the Xilinx PCIe core generator tool to generate a PCIe core. The tool provides a GUI-based interface to configure and generate the core.
