Programmable Logic / Programmable Logic Devices / XC2C64A-5VQ100C
Datasheets
XC2C64A-5VQ100C by:

Flash PLD, 5ns, 64-Cell, CMOS, PQFP100, 14 X 14 MM, 0.50 MM PITCH, VQFP-100

Part Details for XC2C64A-5VQ100C by AMD

Results Overview of XC2C64A-5VQ100C by AMD

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

XC2C64A-5VQ100C Information

XC2C64A-5VQ100C by AMD is a Programmable Logic Device.
Programmable Logic Devices are under the broader part category of Programmable Logic Devices.

Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.

Price & Stock for XC2C64A-5VQ100C

Part # Distributor Description Stock Price Buy
DISTI # XC2C64A-5VQ100C
Avnet Americas - Trays (Alt: XC2C64A-5VQ100C) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Tray 0
RFQ

Part Details for XC2C64A-5VQ100C

XC2C64A-5VQ100C CAD Models

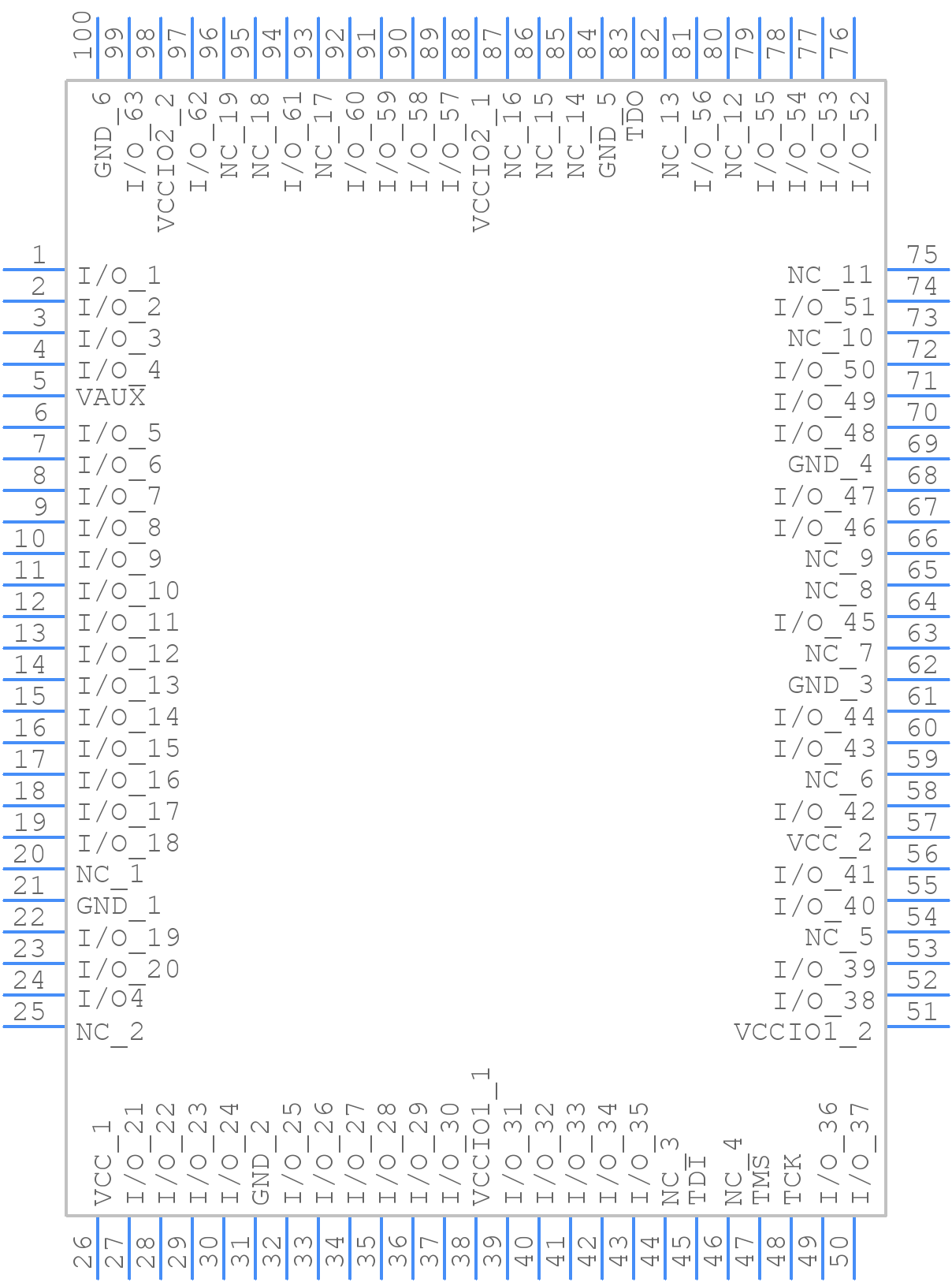

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

XC2C64A-5VQ100C Part Data Attributes

Parametric Data
XC2C64A-5VQ100C AMD
Buy Now Datasheet
Compare Parts:
XC2C64A-5VQ100C AMD Flash PLD, 5ns, 64-Cell, CMOS, PQFP100, 14 X 14 MM, 0.50 MM PITCH, VQFP-100
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer ADVANCED MICRO DEVICES INC
Package Description 14 X 14 MM, 0.50 MM PITCH, VQFP-100
Reach Compliance Code compliant
Factory Lead Time 111 Weeks
Samacsys Manufacturer AMD
Additional Feature REAL DIGITAL DESIGN TECHNOLOGY
Clock Frequency-Max 333 MHz
In-System Programmable YES
JESD-30 Code S-PQFP-G100
JESD-609 Code e4
JTAG BST YES
Length 14 mm
Moisture Sensitivity Level 3
Number of Dedicated Inputs
Number of I/O Lines 64
Number of Macro Cells 64
Number of Terminals 100
Operating Temperature-Max 70 °C
Operating Temperature-Min
Organization 0 DEDICATED INPUTS, 64 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code TFQFP
Package Equivalence Code TQFP100,.63SQ
Package Shape SQUARE
Package Style FLATPACK, THIN PROFILE, FINE PITCH
Programmable Logic Type FLASH PLD
Propagation Delay 5 ns
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Supply Voltage-Max 1.9 V
Supply Voltage-Min 1.7 V
Supply Voltage-Nom 1.8 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Width 14 mm

Alternate Parts for XC2C64A-5VQ100C

This table gives cross-reference parts and alternative options found for XC2C64A-5VQ100C. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of XC2C64A-5VQ100C, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
XC2C64-5VQG100C AMD Xilinx Check for Price Flash PLD, 5ns, 64-Cell, CMOS, PQFP100, 14 X 14 MM, 0.50 MM PITCH, VQFP-100 XC2C64A-5VQ100C vs XC2C64-5VQG100C
Part Number Manufacturer Composite Price Description Compare
XC2C64A-7VQG100C AMD Xilinx $1.7126 Flash PLD, 7.5ns, 64-Cell, CMOS, PQFP100, 14 X 14 MM, 0.50 MM PITCH, LEAD FREE, VQFP-100 XC2C64A-5VQ100C vs XC2C64A-7VQG100C
XC2C64A-5VQG100C AMD Xilinx $6.5900 Flash PLD, 5ns, 64-Cell, CMOS, PQFP100, 14 X 14 MM, 0.50 MM PITCH, LEAD FREE, VQFP-100 XC2C64A-5VQ100C vs XC2C64A-5VQG100C
XC2C64A-5VQG100C AMD Check for Price Flash PLD, 5ns, 64-Cell, CMOS, PQFP100, 14 X 14 MM, 0.50 MM PITCH, LEAD FREE, VQFP-100 XC2C64A-5VQ100C vs XC2C64A-5VQG100C
XC2C64A-7VQG100C AMD Check for Price Flash PLD, 7.5ns, 64-Cell, CMOS, PQFP100, 14 X 14 MM, 0.50 MM PITCH, LEAD FREE, VQFP-100 XC2C64A-5VQ100C vs XC2C64A-7VQG100C
XC2C64-7VQG100I AMD Xilinx Check for Price Flash PLD, 7.5ns, 64-Cell, CMOS, PQFP100, 14 X 14 MM, 0.50 MM PITCH, VQFP-100 XC2C64A-5VQ100C vs XC2C64-7VQG100I
XC2C64A-7VQ100I AMD Check for Price Flash PLD, 7.5ns, 64-Cell, CMOS, PQFP100, 14 X 14 MM, 0.50 MM PITCH, VQFP-100 XC2C64A-5VQ100C vs XC2C64A-7VQ100I
XC2C64-7VQG100C AMD Xilinx Check for Price Flash PLD, 7.5ns, 64-Cell, CMOS, PQFP100, 14 X 14 MM, 0.50 MM PITCH, VQFP-100 XC2C64A-5VQ100C vs XC2C64-7VQG100C
XC2C64-7VQ100I AMD Xilinx Check for Price Flash PLD, 7.5ns, 64-Cell, CMOS, PQFP100, 14 X 14 MM, 0.50 MM PITCH, VQFP-100 XC2C64A-5VQ100C vs XC2C64-7VQ100I
XC2C64A-7VQ100C AMD Xilinx Check for Price Flash PLD, 7.5ns, 64-Cell, CMOS, PQFP100, 14 X 14 MM, 0.50 MM PITCH, VQFP-100 XC2C64A-5VQ100C vs XC2C64A-7VQ100C
XC2C64A-7VQ100C AMD Check for Price Flash PLD, 7.5ns, 64-Cell, CMOS, PQFP100, 14 X 14 MM, 0.50 MM PITCH, VQFP-100 XC2C64A-5VQ100C vs XC2C64A-7VQ100C
