Programmable Logic / Programmable Logic Devices / XC2C32A-6VQG44C
Datasheets
XC2C32A-6VQG44C by:

Flash PLD, 6ns, 32-Cell, CMOS, PQFP44, 10 X 10 MM, 0.80 MM PITCH, LEAD FREE, VQFP-44

Part Details for XC2C32A-6VQG44C by AMD

Results Overview of XC2C32A-6VQG44C by AMD

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

XC2C32A-6VQG44C Information

XC2C32A-6VQG44C by AMD is a Programmable Logic Device.
Programmable Logic Devices are under the broader part category of Programmable Logic Devices.

Programmable Logic Devices (PLDs) are reconfigurable digital components that can be customized for different applications, offering flexibility and improved performance over fixed logic devices. Read more about Programmable Logic Devices on our Programmable Logic part category page.

Price & Stock for XC2C32A-6VQG44C

Part # Distributor Description Stock Price Buy
DISTI # 122-1404-ND
DigiKey IC CPLD 32MC 5.5NS 44VQFP Min Qty: 1 Lead time: 29 Weeks Container: Tray 47608
In Stock
  • 1 $5.1100
$5.1100 Buy Now
DISTI # XC2C32A-6VQG44C
Avnet Silica (Alt: XC2C32A-6VQG44C) RoHS: Compliant Min Qty: 137 Package Multiple: 160 Lead time: 143 Weeks, 0 Days Silica - 1280
Buy Now
DISTI # XC2C32A-6VQG44C
EBV Elektronik (Alt: XC2C32A-6VQG44C) RoHS: Compliant Min Qty: 137 Package Multiple: 1 Lead time: 143 Weeks, 0 Days EBV - 0
Buy Now

Part Details for XC2C32A-6VQG44C

XC2C32A-6VQG44C CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

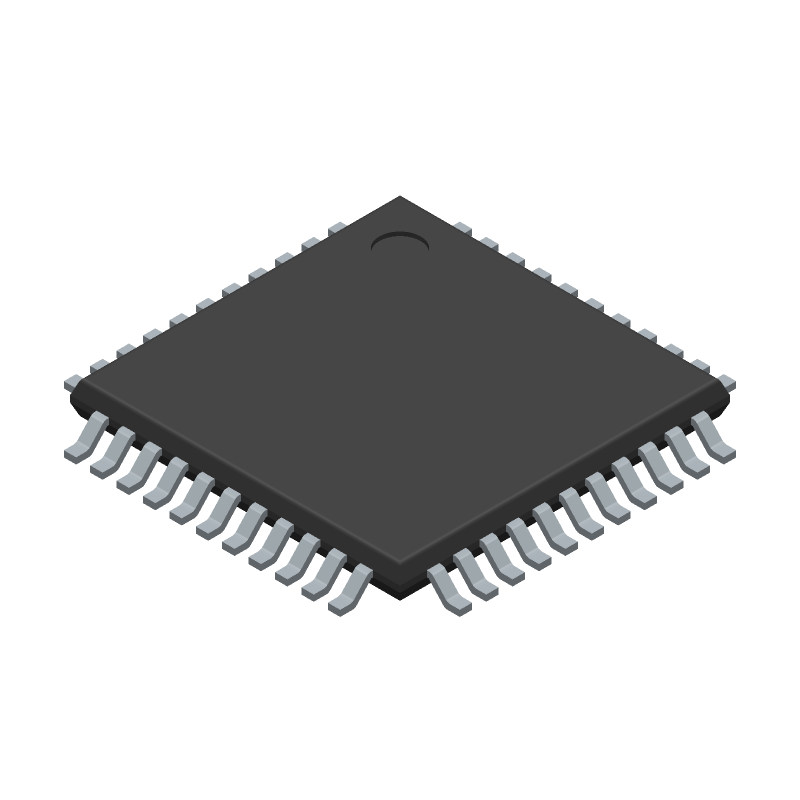

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

XC2C32A-6VQG44C Part Data Attributes

Parametric Data
XC2C32A-6VQG44C AMD
Buy Now Datasheet
Compare Parts:
XC2C32A-6VQG44C AMD Flash PLD, 6ns, 32-Cell, CMOS, PQFP44, 10 X 10 MM, 0.80 MM PITCH, LEAD FREE, VQFP-44
Rohs Code Yes
Part Life Cycle Code Obsolete
Ihs Manufacturer ADVANCED MICRO DEVICES INC
Package Description 10 X 10 MM, 0.80 MM PITCH, LEAD FREE, VQFP-44
Reach Compliance Code compliant
Samacsys Manufacturer AMD
Additional Feature REAL DIGITAL DESIGN TECHNOLOGY
Clock Frequency-Max 300 MHz
In-System Programmable YES
JESD-30 Code S-PQFP-G44
JESD-609 Code e3
JTAG BST YES
Length 10 mm
Moisture Sensitivity Level 3
Number of I/O Lines 33
Number of Macro Cells 32
Number of Terminals 44
Operating Temperature-Max 70 °C
Operating Temperature-Min
Organization 33 I/O
Output Function MACROCELL
Package Body Material PLASTIC/EPOXY
Package Code TQFP
Package Equivalence Code LCC32,.2SQ,20
Package Shape SQUARE
Package Style FLATPACK, THIN PROFILE
Peak Reflow Temperature (Cel) 260
Programmable Logic Type FLASH PLD
Propagation Delay 6 ns
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Supply Voltage-Max 1.9 V
Supply Voltage-Min 1.7 V
Supply Voltage-Nom 1.8 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish MATTE TIN
Terminal Form GULL WING
Terminal Pitch 0.8 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Width 10 mm

Alternate Parts for XC2C32A-6VQG44C

This table gives cross-reference parts and alternative options found for XC2C32A-6VQG44C. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of XC2C32A-6VQG44C, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
XC2C32A-6QFG32C AMD Check for Price Flash PLD, 6ns, 32-Cell, CMOS, PDSO32, 5 X 5 MM, 0.50 MM PITCH, LEAD FREE, QFN-32 XC2C32A-6VQG44C vs XC2C32A-6QFG32C
XC2C32A-4VQG44C AMD Check for Price Flash PLD, 4ns, 32-Cell, CMOS, PQFP44, 10 X 10 MM, 0.80 MM PITCH, LEAD FREE, VQFP-44 XC2C32A-6VQG44C vs XC2C32A-4VQG44C
XC2C32A-6VQG44I AMD Check for Price Flash PLD, 6ns, 32-Cell, CMOS, PQFP44, 10 X 10 MM, 0.80 MM PITCH, LEAD FREE, VQFP-44 XC2C32A-6VQG44C vs XC2C32A-6VQG44I
XC2C32A-6QFG32I AMD Check for Price Flash PLD, 6ns, 32-Cell, CMOS, PDSO32, 5 X 5 MM, 0.50 MM PITCH, LEAD FREE, QFN-32 XC2C32A-6VQG44C vs XC2C32A-6QFG32I
XC2C32A-6VQ44I AMD Check for Price Flash PLD, 6ns, 32-Cell, CMOS, PQFP44, 10 X 10 MM, 0.80 MM PITCH, VQFP-44 XC2C32A-6VQG44C vs XC2C32A-6VQ44I
XC2C32A-4VQ44C AMD Check for Price Flash PLD, 4ns, 32-Cell, CMOS, PQFP44, 10 X 10 MM, 0.80 MM PITCH, VQFP-44 XC2C32A-6VQG44C vs XC2C32A-4VQ44C

XC2C32A-6VQG44C Related Parts

XC2C32A-6VQG44C Frequently Asked Questions (FAQ)

  • The maximum operating frequency of the XC2C32A-6VQG44C is 160 MHz.

  • To implement a CDC in the XC2C32A-6VQG44C, use a synchronizer circuit or a FIFO-based CDC to ensure data integrity and prevent metastability issues.

  • The power consumption of the XC2C32A-6VQG44C depends on the operating frequency, voltage, and usage. Typically, it ranges from 100-300 mW.

  • No, the XC2C32A-6VQG44C is not a radiation-hardened device. It is not designed to withstand high levels of radiation and is not suitable for space or high-reliability applications.

  • To optimize the XC2C32A-6VQG44C for low power consumption, use power-saving features like clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS).
