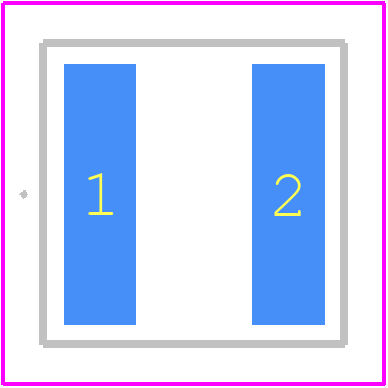

Footprint
-

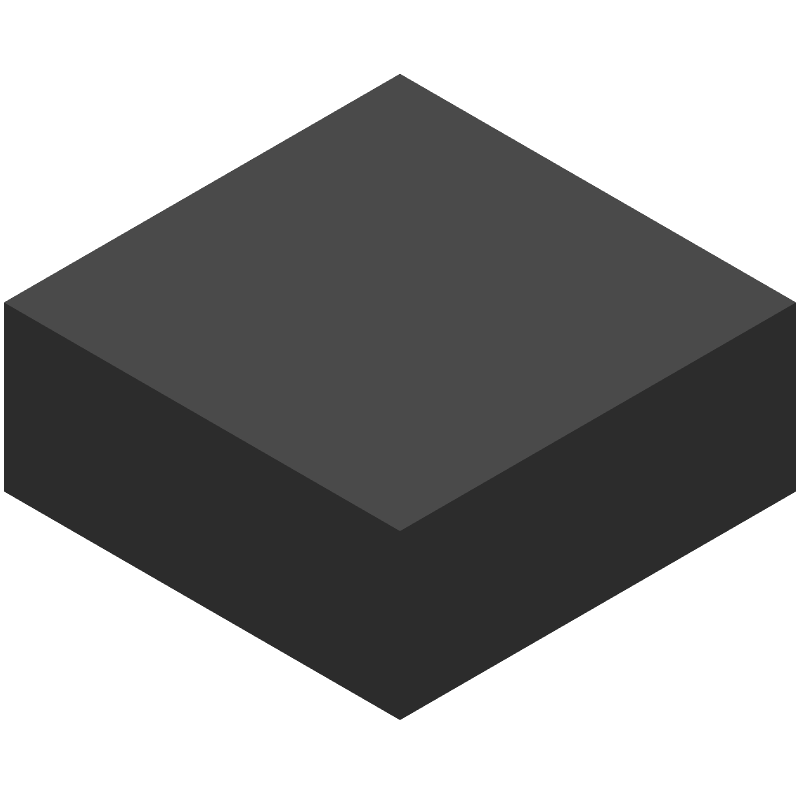

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for XAL7030-152MEB by Coilcraft Inc
Results Overview of XAL7030-152MEB by Coilcraft Inc
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Environmental Monitoring
Internet of Things (IoT)
Industrial Automation
Smart Cities
Agriculture Technology
Medical Imaging
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Consumer Electronics
Education and Research
Security and Surveillance
Aerospace and Defense
Healthcare
Robotics and Drones
XAL7030-152MEB Information
XAL7030-152MEB by Coilcraft Inc is a Fixed Inductor.
Fixed Inductors are under the broader part category of Inductors.
Inductors are passive components that resist sudden changes in current by storing and releasing energy in an electromagnetic fiel. They are often used in power circuits and energy storage. Read more about Inductors on our Inductors part category page.
Price & Stock for XAL7030-152MEB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 115 |
|
RFQ | ||
|
|
Bristol Electronics | Min Qty: 3 | 30 |
|
$1.3500 / $1.8000 | Buy Now |
|
|
Quest Components | 72 |
|
$3.6908 / $5.9850 | Buy Now | |
|
|
Quest Components | 24 |
|
$1.5000 / $2.4000 | Buy Now | |
|
|
Quest Components | 20 |
|
$2.5960 / $3.5400 | Buy Now |
Part Details for XAL7030-152MEB
XAL7030-152MEB CAD Models
XAL7030-152MEB Part Data Attributes
|
|
XAL7030-152MEB
Coilcraft Inc
Buy Now
Datasheet
|
Compare Parts:
XAL7030-152MEB
Coilcraft Inc
General Purpose Inductor, 1.5uH, 20%, 1 Element, Composite-Core, SMD, 3030, CHIP, 3030, HALOGEN FREE AND ROHS COMPLIANT
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | COILCRAFT INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.50.80.00 | |
| Samacsys Manufacturer | COILCRAFT | |
| Case/Size Code | 3030 | |
| Construction | Rectangular | |
| Core Material | COMPOSITE | |
| DC Resistance | 0.00836 Ω | |
| Inductance-Nom (L) | 1.5 µH | |
| Inductor Application | POWER INDUCTOR | |
| Inductor Type | GENERAL PURPOSE INDUCTOR | |
| JESD-609 Code | e2 | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Height | 3.1 mm | |
| Package Length | 7.5 mm | |
| Package Style | SMT | |
| Package Width | 7.5 mm | |
| Packing Method | TR | |
| Rated Current-Max | 15 A | |
| Reference Standard | AEC-Q200 | |
| Self Resonance Frequency | 39 MHz | |
| Shape/Size Description | RECTANGULAR PACKAGE | |
| Shielded | YES | |
| Surface Mount | YES | |
| Terminal Finish | Tin/Silver (Sn96.5Ag3.5) | |
| Terminal Placement | DUAL ENDED | |
| Terminal Shape | ONE SURFACE | |
| Test Frequency | 1 MHz | |
| Tolerance | 20% |
XAL7030-152MEB Frequently Asked Questions (FAQ)
-
The recommended PCB land pattern for the XAL7030-152MEB is a rectangular pad with a size of 3.8 mm x 2.5 mm, with a 1.1 mm diameter hole in the center for the inductor's lead.
-
The XAL7030-152MEB's inductance value can vary with temperature. To minimize the impact of temperature on the inductor's performance, it's recommended to use a temperature-stable core material and to operate the inductor within its specified temperature range (-40°C to +125°C).
-
The maximum current rating for the XAL7030-152MEB is 1.52 A, based on a 40°C temperature rise. However, the actual current rating may vary depending on the specific application and operating conditions.
-
To ensure proper soldering, use a soldering iron with a temperature of 260°C to 280°C, and apply a small amount of solder paste to the PCB pads. Use a soldering technique that minimizes the risk of overheating the component.
-
Yes, the XAL7030-152MEB is compatible with lead-free soldering processes, and it meets the requirements of the RoHS directive.
