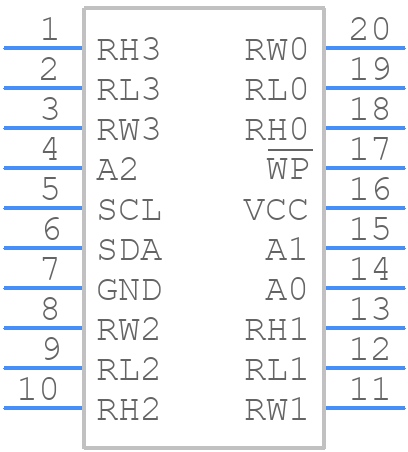

Part Symbol
-
Footprint
-

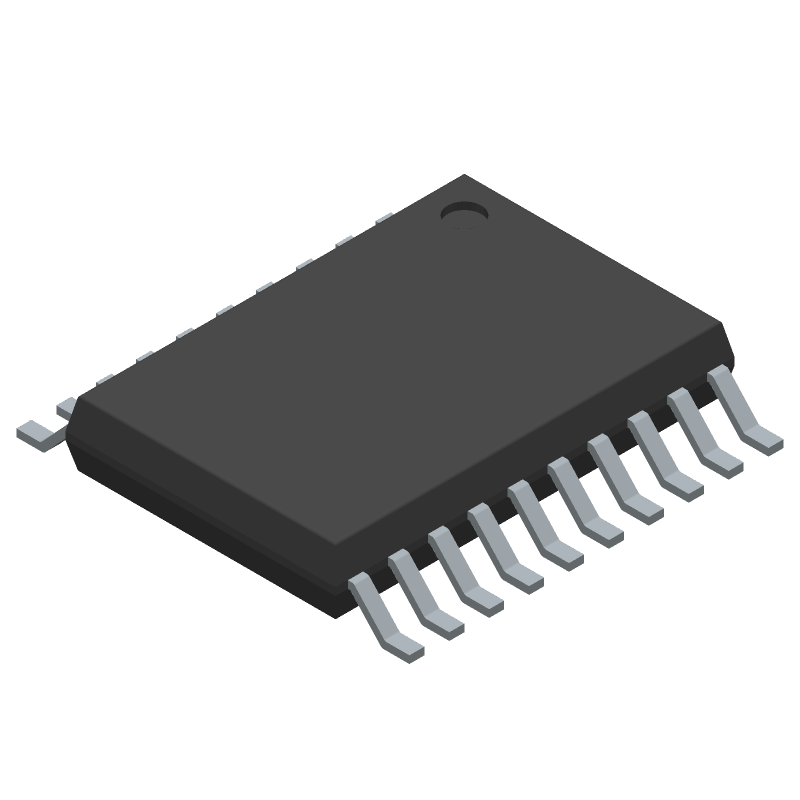

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for X95840UV20IZ-2.7T1 by Renesas Electronics Corporation
Results Overview of X95840UV20IZ-2.7T1 by Renesas Electronics Corporation
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
X95840UV20IZ-2.7T1 Information
X95840UV20IZ-2.7T1 by Renesas Electronics Corporation is a Digital Potentiometer.
Digital Potentiometers are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for X95840UV20IZ-2.7T1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
79K9555
|
Newark | Ic, digital Potentiometer, cmos, tssop,20Pin, plastic Rohs Compliant: Yes |Renesas X95840UV20IZ-2.7T1 RoHS: Compliant Min Qty: 2500 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
Buy Now | |
|
DISTI #
X95840UV20IZ-2.7T1TR-ND
|
DigiKey | IC DGT POT 50KOHM 256TAP 20TSSOP Min Qty: 2500 Lead time: 18 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$5.2520 | Buy Now |
|
DISTI #
X95840UV20IZ-2.7T1
|
Avnet Americas | Digital Potentiometer, Non-Volatile, 50 kOhm, Quad, 256 Steps, ? 45 ppm/?C, 2.7 V to 5.5 V, 20 Pins, TSSOP - Tape and Reel (Alt: X95840UV20IZ-2.7T1) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 18 Weeks, 0 Days Container: Reel | 47500 Factory Stock |
|
$9.0900 | Buy Now |
|
DISTI #
968-X95840UV20IZ27T1
|
Mouser Electronics | Digital Potentiometer ICs QD 256-TAP 50KOHM 2-WIRE I/F NV RoHS: Compliant | 0 |
|
$5.2500 | Order Now |
|
DISTI #
X95840UV20IZ-2.7T1
|
Avnet Silica | Digital Potentiometer NonVolatile 50 kOhm Quad 256 Steps 45 ppmC 27 V to 55 V 20 Pins TSSOP (Alt: X95840UV20IZ-2.7T1) RoHS: Compliant Min Qty: 2500 Package Multiple: 2500 Lead time: 20 Weeks, 0 Days | Silica - 0 |
|
Buy Now |
Part Details for X95840UV20IZ-2.7T1
X95840UV20IZ-2.7T1 CAD Models
X95840UV20IZ-2.7T1 Part Data Attributes
|
|
X95840UV20IZ-2.7T1
Renesas Electronics Corporation
Buy Now
Datasheet
|
Compare Parts:
X95840UV20IZ-2.7T1
Renesas Electronics Corporation
Quad Digital Controlled Potentiometers (XDCP™); Low Noise/Low Power/I2C® Bus/256 Taps, TSSOP, /Reel
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | RENESAS ELECTRONICS CORP | |
| Part Package Code | TSSOP | |
| Pin Count | 20 | |
| Manufacturer Package Code | MDP0044 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 18 Weeks | |
| Date Of Intro | 2017-11-03 | |
| Samacsys Manufacturer | Renesas Electronics | |
| Control Interface | 2-WIRE SERIAL | |
| Converter Type | DIGITAL POTENTIOMETER | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 6.5 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 4 | |
| Number of Positions | 256 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Resistance Law | LINEAR | |
| Resistance Tolerance-Max | 20% | |
| Resistor Terminal Voltage-Max | 20 V | |
| Resistor Terminal Voltage-Min | 45 V | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Coefficient-Nom | 45 ppm/°C | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Total Resistance-Nom | 50000 Ω | |
| Width | 4.4 mm |
X95840UV20IZ-2.7T1 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for X95840UV20IZ-2.7T1 is -40°C to 85°C.
-
The X95840UV20IZ-2.7T1 has an internal POR circuit that resets the device when the power supply voltage (VCC) rises above 1.8V. No external POR circuit is required.
-
The X95840UV20IZ-2.7T1 supports a maximum clock frequency of 20 MHz.
-
The X95840UV20IZ-2.7T1 requires an external oscillator circuit consisting of a crystal oscillator and two capacitors (C1 and C2) connected between the XIN and XOUT pins. The recommended values for C1 and C2 are 22pF and 33pF, respectively.
-
The VCC pin is the power supply pin for the device and should be connected to a stable 2.7V to 5.5V power source. A decoupling capacitor (typically 0.1uF) should be connected between VCC and GND to filter out noise and ensure stable operation.
