Resistors / Fixed Resistors / WSR5R3000FEA
Datasheets
WSR5R3000FEA by:

Fixed Resistor, Metal Strip, 5W, 0.3ohm, 1.2247V, 1% +/-Tol, 75ppm/Cel, Surface Mount, 4527, CHIP

Part Details for WSR5R3000FEA by Vishay Intertechnologies

Results Overview of WSR5R3000FEA by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

WSR5R3000FEA Information

WSR5R3000FEA by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for WSR5R3000FEA

Part # Distributor Description Stock Price Buy
DISTI # 67P3122
Newark Smd Current Sense Resistors, Aec-Q200 Wsr Series, 0.3 Ohm, 5 W, 1%, 4527 [11470 Metric] |Vishay WSR5R3000FEA RoHS: Not Compliant Min Qty: 1500 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 1,000 $1.3600
  • 2,000 $1.2900
  • 4,000 $1.1600
  • 6,000 $1.1200
  • 10,000 $1.0800
$1.0800 / $1.3600 Buy Now
DISTI # 98K3115
Newark Smd Current Sense Resistors, Aec-Q200 Wsr Series, 0.3 Ohm, 5 W, 1%, 4527 [11470 Metric] Rohs Compliant: Yes |Vishay WSR5R3000FEA RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape 0
  • 1 $2.7200
  • 10 $1.8500
  • 25 $1.6100
$1.6100 / $2.7200 Buy Now
DISTI # WSR5R3000FEA
Avnet Americas SMD Current Sense Resistor, 0.3 ohm, WSR Series, 4527 [11470 Metric], 5 W, ? 1%, Metal Strip - Tape and Reel (Alt: WSR5R3000FEA) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 5 Weeks, 0 Days Container: Reel 0
  • 1,500 $1.0694
  • 3,000 $0.9344
  • 6,000 $0.9228
  • 9,000 $0.9061
  • 12,000 $0.8794
$0.8794 / $1.0694 Buy Now
DISTI # 71-WSR5R3000FEA
Mouser Electronics Current Sense Resistors - SMD 5watts .30ohms 1% RoHS: Compliant 846
  • 1 $2.6300
  • 10 $1.7600
  • 25 $1.5200
  • 50 $1.3700
  • 100 $1.2400
  • 250 $1.1100
  • 500 $1.0200
  • 1,000 $0.9020
  • 1,500 $0.8970
$0.8970 / $2.6300 Buy Now
DISTI # E02:0323_04193956
Arrow Electronics Res Metal Strip 4527 0.3 Ohm 1% 5W ±75ppm/°C Sulfur Resistant J-Lead SMD T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 5 Weeks Date Code: 2502 Europe - 1500
  • 1,500 $1.2144
$1.2144 Buy Now
DISTI # V72:2272_07434317
Arrow Electronics Res Metal Strip 4527 0.3 Ohm 1% 5W ±75ppm/°C Sulfur Resistant J-Lead SMD T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 5 Weeks Date Code: 2314 Container: Cut Strips Americas - 1363
  • 1 $1.1973
  • 10 $1.1788
  • 25 $1.1604
  • 100 $1.1419
  • 250 $1.1234
  • 500 $1.1049
  • 1,000 $1.0865
$1.0865 / $1.1973 Buy Now
Future Electronics WSR-5 .3 1% EA E2 RoHS: Compliant pbFree: Yes Min Qty: 1500 Package Multiple: 1500 Lead time: 5 Weeks Container: Reel 3000
Reel
  • 1,500 $1.0700
$1.0700 Buy Now
DISTI # 87623144
Verical Res Metal Strip 4527 0.3 Ohm 1% 5W ±75ppm/°C Sulfur Resistant J-Lead SMD T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Date Code: 2502 Americas - 1500
  • 1,500 $1.2223
$1.2223 Buy Now
DISTI # WSR5R3000FEA
TTI Current Sense Resistors - SMD 5watts .30ohms 1% RoHS: Compliant pbFree: Pb-Free Min Qty: 1500 Package Multiple: 1500 Container: Reel Americas - 4500
In Stock
  • 1,500 $0.8900
  • 3,000 $0.8400
  • 4,500 $0.8200
  • 7,500 $0.7800
  • 10,500 $0.7600
$0.7600 / $0.8900 Buy Now
Future Electronics WSR-5 .3 1% EA E2 Min Qty: 1500 Package Multiple: 1500 3000
null
  • 1,500 $1.0700
$1.0700 Buy Now
DISTI # WSR5R3000FEA
IBS Electronics RES METAL STRIP 4527 0.3 OHM 1% 5W &#xB1, 75PPM/&#xB0, C MOLDED SMD SMD EMBOSSED PLASTIC T/R Min Qty: 1500 Package Multiple: 1 3000
  • 1,500 $1.3910
$1.3910 Buy Now
DISTI # WSR5R3000FEA
Avnet Abacus SMD Current Sense Resistor 03 ohm WSR Series 4527 11470 Metric 5 W 1 Metal Strip (Alt: WSR5R3000FEA) RoHS: Compliant Min Qty: 1500 Package Multiple: 1500 Lead time: 8 Weeks, 0 Days Abacus - 0
Buy Now
LCSC 5W 75ppm/ 1% 300m 4527 Chip Resistor - Surface Mount ROHS 10
  • 1 $2.1133
  • 10 $2.0675
  • 30 $2.0369
  • 100 $2.0064
$2.0064 / $2.1133 Buy Now

Part Details for WSR5R3000FEA

WSR5R3000FEA CAD Models

  • Part Symbol

    Part Symbol

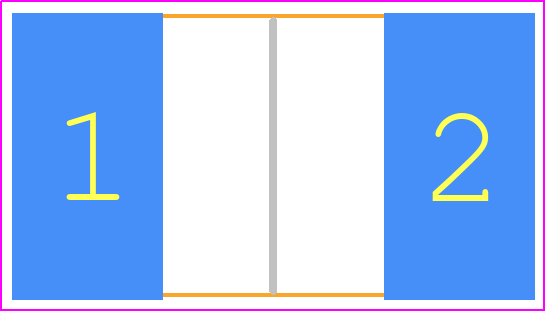

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

WSR5R3000FEA Part Data Attributes

Parametric Data
WSR5R3000FEA Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
WSR5R3000FEA Vishay Intertechnologies Fixed Resistor, Metal Strip, 5W, 0.3ohm, 1.2247V, 1% +/-Tol, 75ppm/Cel, Surface Mount, 4527, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
Factory Lead Time 5 Weeks
Samacsys Manufacturer Vishay
Additional Feature AEC-Q200, ANTI-SULFUR
Construction All-Welded
JESD-609 Code e2
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 275 °C
Operating Temperature-Min -65 °C
Package Height 2.41 mm
Package Length 11.56 mm
Package Style SMT
Package Width 6.98 mm
Packing Method TR, Embossed Plastic, 13 Inch
Rated Power Dissipation (P) 5 W
Rated Temperature 70 °C
Resistance 0.3 Ω
Resistor Type FIXED RESISTOR
Size Code 4527
Surface Mount YES
Technology METAL STRIP
Temperature Coefficient 75 ppm/°C
Terminal Finish Tin/Silver (Sn96Ag4)
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 1.2247 V

Alternate Parts for WSR5R3000FEA

This table gives cross-reference parts and alternative options found for WSR5R3000FEA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of WSR5R3000FEA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.

Part Number Manufacturer Composite Price Description Compare
WSR5R3000FBA Vishay Dale Check for Price RESISTOR, CURRENT SENSE, METAL STRIP, 5 W, 1 %, 75 ppm, 0.3 ohm, SURFACE MOUNT, 4527, CHIP WSR5R3000FEA vs WSR5R3000FBA
WSR5R3000FEK Vishay Intertechnologies Check for Price Fixed Resistor, Metal Strip, 5W, 0.3ohm, 1.2247V, 1% +/-Tol, 75ppm/Cel, Surface Mount, 4527, CHIP WSR5R3000FEA vs WSR5R3000FEK
WSR5R3000FBA Vishay Intertechnologies Check for Price Fixed Resistor, Metal Strip, 5W, 0.3ohm, 1.2247V, 1% +/-Tol, 75ppm/Cel, Surface Mount, 4527, CHIP WSR5R3000FEA vs WSR5R3000FBA

WSR5R3000FEA Related Parts

WSR5R3000FEA Frequently Asked Questions (FAQ)

  • The recommended soldering temperature for the WSR5R3000FEA is 260°C for 10 seconds.

  • Yes, the WSR5R3000FEA is resistant to sulfurization due to its passivation layer, which protects the resistor from sulfur-containing atmospheres.

  • Yes, the WSR5R3000FEA is suitable for high-frequency applications due to its low inductance and capacitance values.

  • The power rating of the WSR5R3000FEA at 70°C is 3.15W.

  • Yes, the WSR5R3000FEA is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
