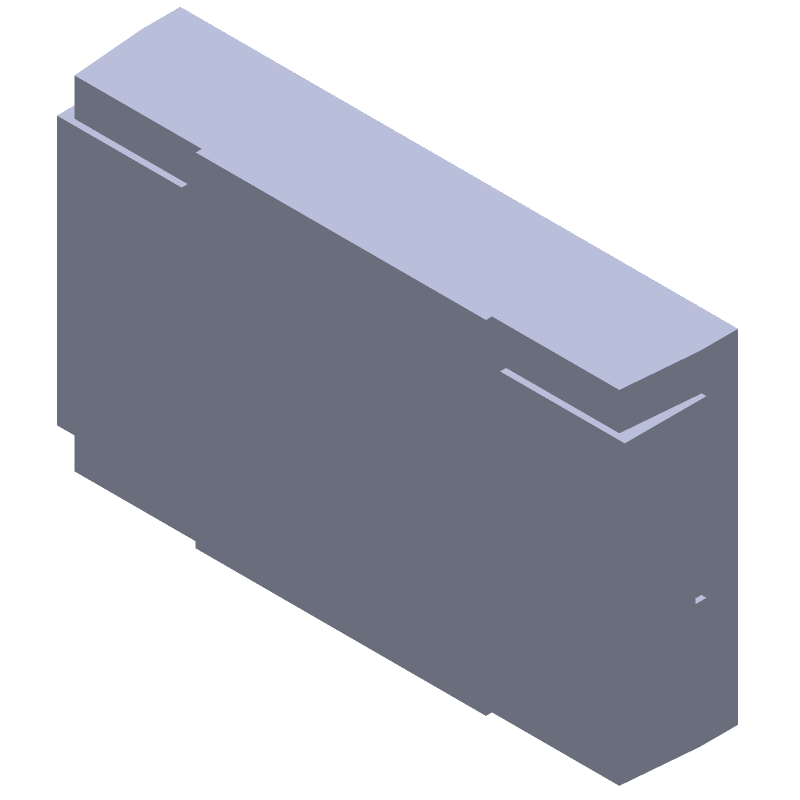

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for WSR2R4000FEK by Vishay Intertechnologies
Results Overview of WSR2R4000FEK by Vishay Intertechnologies
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
WSR2R4000FEK Information
WSR2R4000FEK by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WSR2R4000FEK
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
72M6604
|
Newark | Current Sense Resistor, 0.4 Ohm, 2W, 1%, Resistance:0.4Ohm, Product Range:Wsr Series, Resistor Case/Package:4527 [11470 Metric], Power Rating:2W, Resistance Tolerance:± 1%, Resistor Technology:Metal Strip, Product Length:11.56Mm Rohs Compliant: Yes |Vishay WSR2R4000FEK RoHS: Compliant Min Qty: 100 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$1.0100 | Buy Now |
|
DISTI #
WSR2R4000FEK
|
Avnet Americas | WSR-2 .4 1% EK e2 - Bulk (Alt: WSR2R4000FEK) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 12 Weeks, 0 Days Container: Bulk | 0 |
|
$0.8939 / $0.9399 | Buy Now |
|
DISTI #
71-WSR2R4000FEK
|
Mouser Electronics | Current Sense Resistors - SMD WSR-2 .4 1% EK e2 RoHS: Compliant | 0 |
|
$0.3450 | Order Now |
|
DISTI #
WSR2R4000FEK
|
Avnet Abacus | WSR2 4 1 EK e2 (Alt: WSR2R4000FEK) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 15 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for WSR2R4000FEK
WSR2R4000FEK CAD Models
WSR2R4000FEK Part Data Attributes
|
|
WSR2R4000FEK
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WSR2R4000FEK
Vishay Intertechnologies
Fixed Resistor, Metal Strip, 2W, 0.4ohm, 1% +/-Tol, 75ppm/Cel, Surface Mount, 4627, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Construction | Chip | |
| JESD-609 Code | e2 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 275 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 2.41 mm | |
| Package Length | 11.56 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 6.98 mm | |
| Packing Method | BULK | |
| Rated Power Dissipation (P) | 2 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.4 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 4627 | |
| Surface Mount | YES | |
| Technology | METAL STRIP | |
| Temperature Coefficient | 75 ppm/°C | |
| Terminal Finish | Tin/Silver (Sn/Ag) | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 0.8944 V |
