Resistors / Fixed Resistors / WSL2512R5000FEB
Datasheets
WSL2512R5000FEB by:

Fixed Resistor, Metal Strip, 1W, 0.5ohm, 0.7071V, 1% +/-Tol, 75ppm/Cel, Surface Mount, 2512, CHIP

Part Details for WSL2512R5000FEB by Vishay Intertechnologies

Results Overview of WSL2512R5000FEB by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

WSL2512R5000FEB Information

WSL2512R5000FEB by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for WSL2512R5000FEB

Part # Distributor Description Stock Price Buy
DISTI # 78R1024
Newark Wsl-2512 .5 1% Eb E3 |Vishay WSL2512R5000FEB RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1 Date Code: 0 Container: Bulk 0
  • 1,000 $0.5280
  • 2,500 $0.4870
$0.4870 / $0.5280 Buy Now
DISTI # WSL2512R5000FEB
Avnet Americas WSL-2512 .5 1% EB e3 - Tape and Reel (Alt: WSL2512R5000FEB) RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 1,000 $0.4395
  • 2,000 $0.2062
  • 4,000 $0.2037
  • 6,000 $0.2000
  • 8,000 $0.1941
$0.1941 / $0.4395 Buy Now
DISTI # 71-WSL2512-0.5-E3
Mouser Electronics Current Sense Resistors - SMD 1watt .5ohms 1% RoHS: Compliant 4726
  • 1 $1.3500
  • 10 $0.8850
  • 25 $0.7550
  • 50 $0.6780
  • 100 $0.5930
  • 250 $0.5230
  • 1,000 $0.5220
$0.5220 / $1.3500 Buy Now
DISTI # V36:1790_09631324
Arrow Electronics Res Metal Strip 2512 0.5 Ohm 1% 1W ±75ppm/°C Sulfur Resistant Pad SMD T/R Automotive RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks Date Code: 2303 Americas - 10000
  • 1,000 $0.3693
$0.3693 Buy Now
DISTI # 87721036
Verical Res Metal Strip 2512 0.5 Ohm 1% 1W ±75ppm/°C Sulfur Resistant Pad SMD T/R Automotive RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2303 Americas - 10000
  • 1,000 $0.5210
$0.5210 Buy Now
Quest Components FIXED RESISTOR, METAL STRIP, 1W, 0.5OHM, 0.7071V, 1% +/-TOL, 75PPM/CEL, SURFACE MOUNT, 2512 600
  • 1 $1.3800
  • 73 $0.6900
  • 291 $0.5520
$0.5520 / $1.3800 Buy Now
DISTI # WSL2512R5000FEB
TTI Current Sense Resistors - SMD 1watt .5ohms 1% RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel Americas - 0
  • 1,000 $0.2180
  • 2,000 $0.2130
  • 3,000 $0.2090
  • 5,000 $0.2050
  • 10,000 $0.1550
$0.1550 / $0.2180 Buy Now
DISTI # WSL2512R5000FEB
TME Resistor: metal strip, current shunt,sensing, SMD, 2512, 500mΩ, 2W Min Qty: 1000 0
  • 1,000 $0.1490
$0.1490 RFQ
DISTI # WSL2512R5000FEB
Avnet Abacus WSL2512 5 1 EB e3 (Alt: WSL2512R5000FEB) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days Abacus - 0
Buy Now

Part Details for WSL2512R5000FEB

WSL2512R5000FEB CAD Models

  • Part Symbol

    Part Symbol

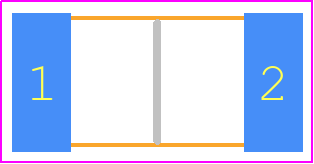

  • Footprint

    footprint

  • 3D Model

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

WSL2512R5000FEB Part Data Attributes

Parametric Data
WSL2512R5000FEB Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
WSL2512R5000FEB Vishay Intertechnologies Fixed Resistor, Metal Strip, 1W, 0.5ohm, 0.7071V, 1% +/-Tol, 75ppm/Cel, Surface Mount, 2512, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
Factory Lead Time 13 Weeks
Samacsys Manufacturer Vishay
Additional Feature ANTI-SULFUR
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 170 °C
Operating Temperature-Min -65 °C
Package Height 0.635 mm
Package Length 6.35 mm
Package Style SMT
Package Width 3.18 mm
Packing Method TR, EMBOSSED PLASTIC, 7 INCH
Rated Power Dissipation (P) 1 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 0.5 Ω
Resistor Type FIXED RESISTOR
Size Code 2512
Surface Mount YES
Technology METAL STRIP
Temperature Coefficient 75 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 0.7071 V

WSL2512R5000FEB Frequently Asked Questions (FAQ)

  • The recommended land pattern for WSL2512R5000FEB is available in the Vishay Intertechnologies' website, which provides a detailed layout and footprint recommendation for optimal performance and reliability.

  • To handle thermal management, ensure good airflow around the component, use a heat sink if necessary, and follow the recommended PCB layout guidelines. Additionally, consider using thermal interface materials to improve heat transfer.

  • The maximum operating temperature range for WSL2512R5000FEB is -55°C to +150°C, as specified in the datasheet. However, it's essential to consider the derating curves and thermal management to ensure reliable operation.

  • Yes, WSL2512R5000FEB is suitable for high-frequency applications due to its low ESL and ESR values. However, it's crucial to consider the component's self-resonant frequency and ensure proper PCB layout and decoupling to minimize parasitic effects.

  • To ensure reliability in a humid environment, follow the recommended storage and handling guidelines, and consider using conformal coating or potting to protect the component from moisture. Additionally, ensure the PCB is designed with moisture-resistant materials and follows proper cleaning and drying procedures.
