WSL2512R3300FEB Information
WSL2512R3300FEB by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WSL2512R3300FEB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
WSL2512R3300FEB
|
Avnet Americas | WSL-2512 .33 1% EB e3 - Tape and Reel (Alt: WSL2512R3300FEB) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.1941 / $0.4395 | Buy Now |
|
DISTI #
71-WSL2512-0.33-E3
|
Mouser Electronics | Current Sense Resistors - SMD 1watt .33ohms 1% RoHS: Compliant | 545 |
|
$0.2690 / $1.5600 | Buy Now |
|
|
Bristol Electronics | 10000 |
|
RFQ | ||
|
|
Quest Components | 8000 |
|
$0.1695 / $0.5650 | Buy Now | |
|
DISTI #
WSL2512R3300FEB
|
TTI | Current Sense Resistors - SMD 1watt .33ohms 1% RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel | Americas - 0 |
|
$0.1640 / $0.2580 | Buy Now |
|
DISTI #
WSL2512R3300FEB
|
TME | Resistor: metal strip, current shunt,sensing, SMD, 2512, 330mΩ, 2W Min Qty: 1000 | 0 |
|
$0.1700 / $0.2280 | RFQ |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
WSL2512R3300FEB
|
Avnet Abacus | WSL2512 33 1 EB e3 (Alt: WSL2512R3300FEB) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 16 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for WSL2512R3300FEB

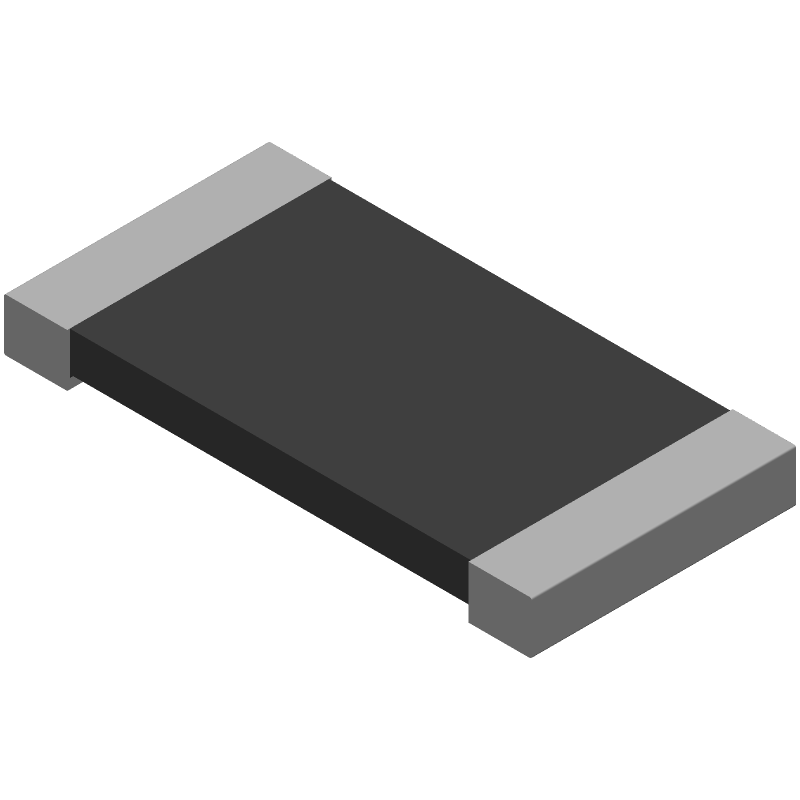

WSL2512R3300FEB CAD Models
WSL2512R3300FEB Part Data Attributes
|
|
WSL2512R3300FEB
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WSL2512R3300FEB
Vishay Intertechnologies
Fixed Resistor, Metal Strip, 1W, 0.33ohm, 0.5745V, 1% +/-Tol, 75ppm/Cel, Surface Mount, 2512, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ANTI-SULFUR | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 170 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 0.635 mm | |
| Package Length | 6.35 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 3.18 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 7 INCH | |
| Rated Power Dissipation (P) | 1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.33 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2512 | |
| Surface Mount | YES | |
| Technology | METAL STRIP | |
| Temperature Coefficient | 75 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 0.5745 V |
WSL2512R3300FEB Frequently Asked Questions (FAQ)
-
The thermal resistance (Rth) of the WSL2512R3300FEB is 35°C/W, which is not explicitly stated in the datasheet but can be found in Vishay's application notes or by contacting their support team.
-
While the datasheet doesn't provide explicit information on high-frequency performance, the WSL2512R3300FEB is a wirewound resistor, which generally has a self-resonant frequency in the range of 10-100 MHz. It may not be the best choice for very high-frequency applications (>100 MHz). For high-frequency applications, consider using a thin-film or thick-film resistor instead.
-
The WSL2512R3300FEB has a maximum operating temperature of 155°C, but its power rating derates above 125°C. For high-temperature applications, consider using a resistor with a higher temperature rating, such as the Vishay WSL2512R3300FHB, which has a maximum operating temperature of 200°C.
-
The recommended land pattern for the WSL2512R3300FEB can be found in the Vishay Intertechnologies' 'Surface Mount Resistor Land Pattern' application note (document number: 31011). The land pattern should be designed to accommodate the resistor's dimensions and ensure proper thermal dissipation.
-
Yes, the WSL2512R3300FEB resistor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
