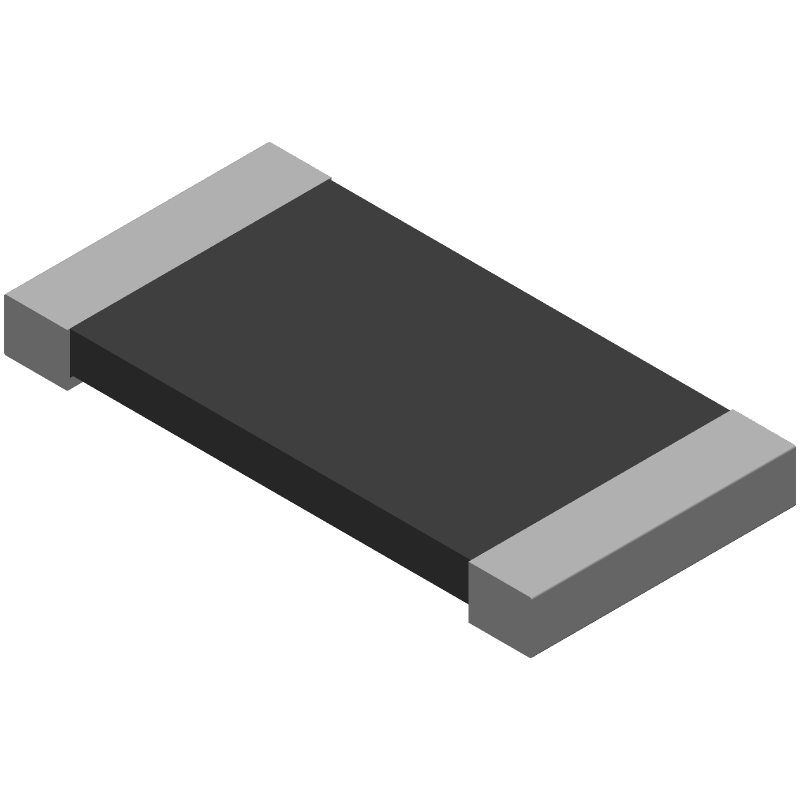

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for WSL2512R2500FEK by Vishay Intertechnologies
Results Overview of WSL2512R2500FEK by Vishay Intertechnologies
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
WSL2512R2500FEK Information
WSL2512R2500FEK by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WSL2512R2500FEK
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
WSL2512R2500FEK
|
Avnet Americas | WSL-2512 .25 1% EK e3 - Bulk (Alt: WSL2512R2500FEK) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 13 Weeks, 0 Days Container: Bulk | 0 |
|
$0.4329 / $0.4688 | Buy Now |
|
DISTI #
71-WSL2512R2500FEK
|
Mouser Electronics | Current Sense Resistors - SMD 1watt .25ohms 1% RoHS: Compliant | 0 |
|
$0.2940 | Order Now |
|
DISTI #
WSL2512R2500FEK
|
TME | Resistor: metal strip, current shunt,sensing, SMD, 2512, 250mΩ, 2W Min Qty: 100 | 0 |
|
$0.1490 | RFQ |
|
DISTI #
WSL2512R2500FEK
|
Avnet Abacus | WSL2512 25 1 EK e3 (Alt: WSL2512R2500FEK) RoHS: Compliant Min Qty: 100 Package Multiple: 100 Lead time: 16 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for WSL2512R2500FEK
WSL2512R2500FEK CAD Models
WSL2512R2500FEK Part Data Attributes
|
|
WSL2512R2500FEK
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WSL2512R2500FEK
Vishay Intertechnologies
Fixed Resistor, Metal Strip, 1W, 0.25ohm, 0.5V, 1% +/-Tol, 75ppm/Cel, Surface Mount, 2512, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ANTI-SULFUR | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 170 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 0.635 mm | |
| Package Length | 6.35 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 3.18 mm | |
| Packing Method | BULK | |
| Rated Power Dissipation (P) | 1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.25 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2512 | |
| Surface Mount | YES | |
| Technology | METAL STRIP | |
| Temperature Coefficient | 75 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 0.5 V |
WSL2512R2500FEK Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for WSL2512R2500FEK is 260°C (500°F) for 10 seconds, with a peak temperature of 280°C (536°F) for 5 seconds.
-
Yes, WSL2512R2500FEK is resistant to sulfurization due to its passivation layer, which protects the resistor from sulfur-containing atmospheres.
-
Yes, WSL2512R2500FEK is suitable for high-frequency applications up to 1 GHz due to its low inductance and capacitance values.
-
WSL2512R2500FEK has a high-temperature rating of 155°C, making it suitable for use in high-temperature environments. However, its power rating decreases with increasing temperature.
-
Yes, WSL2512R2500FEK is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
