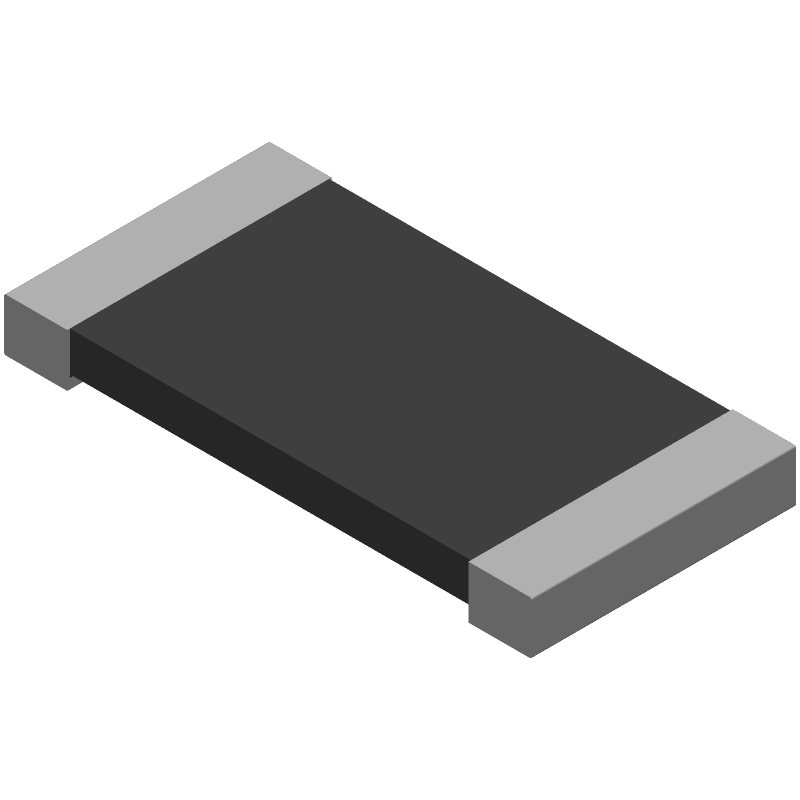

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for WSL2512R2500FEB by Vishay Intertechnologies
Results Overview of WSL2512R2500FEB by Vishay Intertechnologies
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
WSL2512R2500FEB Information
WSL2512R2500FEB by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WSL2512R2500FEB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
WSL2512R2500FEB
|
Avnet Americas | WSL-2512 .25 1% EB e3 - Tape and Reel (Alt: WSL2512R2500FEB) RoHS: Not Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.1941 / $0.4395 | Buy Now |
|
DISTI #
71-WSL2512-0.25-E3
|
Mouser Electronics | Current Sense Resistors - SMD 1watt .25ohms 1% RoHS: Compliant | 6391 |
|
$0.3490 / $1.3300 | Buy Now |
|
DISTI #
V36:1790_09630800
|
Arrow Electronics | Res Metal Strip 2512 0.25 Ohm 1% 1W ±75ppm/°C Sulfur Resistant Pad SMD T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 13 Weeks Date Code: 2512 | Americas - 1000 |
|
$0.5665 | Buy Now |
|
DISTI #
88033985
|
Verical | Res Metal Strip 2512 0.25 Ohm 1% 1W ±75ppm/°C Sulfur Resistant Pad SMD T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Date Code: 2512 | Americas - 1000 |
|
$0.5665 | Buy Now |
|
DISTI #
WSL2512R2500FEB
|
TTI | Current Sense Resistors - SMD 1watt .25ohms 1% RoHS: Compliant pbFree: Pb-Free Min Qty: 1000 Package Multiple: 1000 Container: Reel |
Americas - 3000 In Stock |
|
$0.1980 | Buy Now |
|
DISTI #
WSL2512R2500FEB
|
TME | Resistor: metal strip, current shunt,sensing, SMD, 2512, 250mΩ, 2W Min Qty: 1000 | 0 |
|
$0.1700 / $0.4120 | RFQ |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
Velocity Electronics | Our Stock | 72 |
|
RFQ |
Part Details for WSL2512R2500FEB
WSL2512R2500FEB CAD Models
WSL2512R2500FEB Part Data Attributes
|
|
WSL2512R2500FEB
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WSL2512R2500FEB
Vishay Intertechnologies
Fixed Resistor, Metal Strip, 1W, 0.25ohm, 0.5V, 1% +/-Tol, 75ppm/Cel, Surface Mount, 2512, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ANTI-SULFUR | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 170 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 0.635 mm | |
| Package Length | 6.35 mm | |
| Package Style | SMT | |
| Package Width | 3.18 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 7 INCH | |
| Rated Power Dissipation (P) | 1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.25 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2512 | |
| Surface Mount | YES | |
| Technology | METAL STRIP | |
| Temperature Coefficient | 75 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 0.5 V |
WSL2512R2500FEB Frequently Asked Questions (FAQ)
-
The thermal resistance of the WSL2512R2500FEB is 250°C/W, which is relatively low, making it suitable for high-power applications.
-
Yes, the WSL2512R2500FEB is designed to be resistant to moisture and humidity, with a moisture sensitivity level (MSL) of 1, which means it can withstand normal humidity levels without damage.
-
Yes, the WSL2512R2500FEB is suitable for high-frequency applications due to its low inductance and high-frequency stability, making it a good choice for RF and microwave designs.
-
Yes, the WSL2512R2500FEB is compatible with lead-free soldering processes, making it suitable for use in modern electronic assemblies that require RoHS compliance.
-
The operating temperature range of the WSL2512R2500FEB is -55°C to 150°C, making it suitable for use in a wide range of applications, from consumer electronics to industrial and automotive systems.
