3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for WSL2512R0470FEA by Vishay Intertechnologies
Results Overview of WSL2512R0470FEA by Vishay Intertechnologies
- Distributor Offerings: (13 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
WSL2512R0470FEA Information
WSL2512R0470FEA by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WSL2512R0470FEA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
14AJ2842
|
Newark | Res, 0R047, 1W, 2512, Metal Strip Rohs Compliant: Yes |Vishay WSL2512R0470FEA RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 780 |
|
$0.3190 / $0.7430 | Buy Now |
|
DISTI #
31K8644
|
Newark | Wsl-2512 .047 1% Ea E3 Resistors Rohs Compliant: Yes |Vishay WSL2512R0470FEA RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.3830 / $0.4520 | Buy Now |
|
DISTI #
WSL2512R0470FEA
|
Avnet Americas | WSL-2512 .047 1% EA e3 - Tape and Reel (Alt: WSL2512R0470FEA) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 13 Weeks, 0 Days Container: Reel | 4000 |
|
$0.2176 | Buy Now |
|
DISTI #
71-WSL2512R0470FEA
|
Mouser Electronics | Current Sense Resistors - SMD 1watt .047ohms 1% RoHS: Compliant | 9745 |
|
$0.3590 / $1.1400 | Buy Now |
|
DISTI #
V72:2272_09630320
|
Arrow Electronics | Res Metal Strip 2512 0.047 Ohm 1% 1W ±75ppm/°C Sulfur Resistant Pad SMD T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 13 Weeks Date Code: 2236 Container: Cut Strips | Americas - 957 |
|
$0.3382 / $0.5729 | Buy Now |
|
|
Future Electronics | WSL Series 2512 0.047 Ohm 1 W ±1 % ±75 ppm/°C Surface Mount Metal Film Resistor RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 2000 Lead time: 13 Weeks Container: Reel | 4000Reel |
|
$0.1330 / $0.1390 | Buy Now |
|
DISTI #
63365574
|
Verical | Res Metal Strip 2512 0.047 Ohm 1% 1W ±75ppm/°C Sulfur Resistant Pad SMD T/R Automotive AEC-Q200 RoHS: Compliant Min Qty: 11 Package Multiple: 1 Date Code: 2236 | Americas - 957 |
|
$0.5729 | Buy Now |
|
|
Quest Components | 17 |
|
$0.5600 / $0.7000 | Buy Now | |
|
DISTI #
WSL2512R0470FEA
|
TTI | Current Sense Resistors - SMD 1watt .047ohms 1% RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel | Americas - 0 |
|
$0.1360 / $0.1520 | Buy Now |
|
|
Future Electronics | WSL Series 2512 0.047 Ohm 1 W �1 % �75 ppm/�C Surface Mount Metal Film Resistor Min Qty: 2000 Package Multiple: 2000 |
4000 null |
|
$0.1330 / $0.1390 | Buy Now |
Part Details for WSL2512R0470FEA

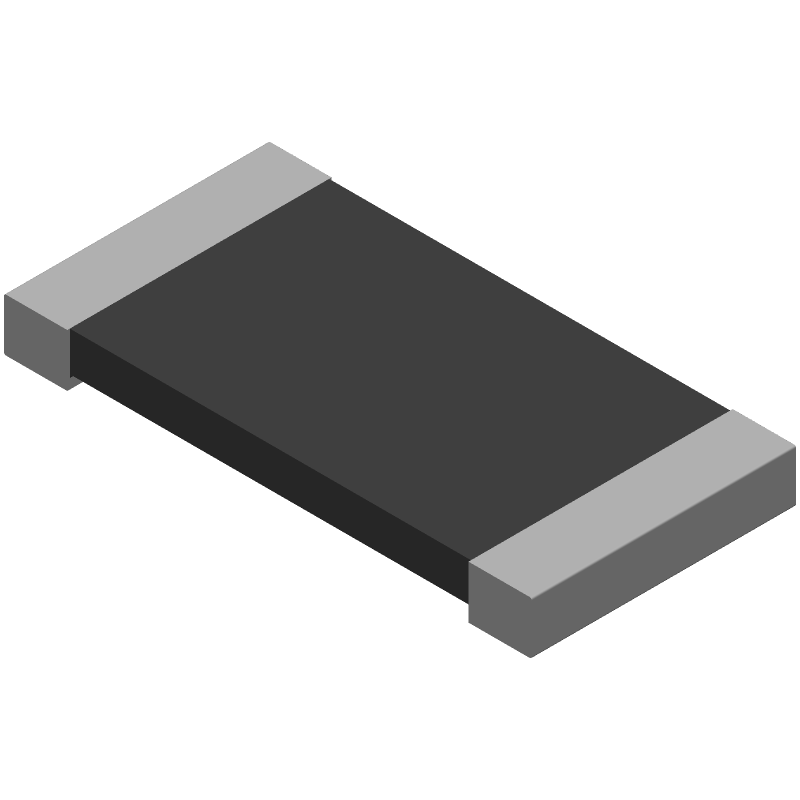

WSL2512R0470FEA CAD Models
WSL2512R0470FEA Part Data Attributes
|
|
WSL2512R0470FEA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WSL2512R0470FEA
Vishay Intertechnologies
Fixed Resistor, Metal Strip, 1W, 0.047ohm, 0.2168V, 1% +/-Tol, 75ppm/Cel, Surface Mount, 2512, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ANTI-SULFUR | |
| Construction | Rectangular | |
| JESD-609 Code | e3 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 170 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 0.635 mm | |
| Package Length | 6.35 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 3.18 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 7 INCH | |
| Rated Power Dissipation (P) | 1 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.047 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2512 | |
| Surface Mount | YES | |
| Technology | METAL STRIP | |
| Temperature Coefficient | 75 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 0.2168 V |
WSL2512R0470FEA Frequently Asked Questions (FAQ)
-
The recommended land pattern for WSL2512R0470FEA is a rectangular pad with a size of 2.5 mm x 1.3 mm, with a non-solder mask defined (NSMD) pad shape.
-
Yes, WSL2512R0470FEA is rated for operation up to 150°C, making it suitable for high-temperature applications. However, the component's power rating and reliability may be affected at extreme temperatures.
-
WSL2512R0470FEA is a moisture-sensitive device (MSD) and requires proper handling and storage to prevent damage. It's recommended to store the component in a dry, nitrogen-filled package and to follow the recommended baking and reflow procedures.
-
The recommended reflow profile for WSL2512R0470FEA is a peak temperature of 260°C, with a ramp-up rate of 3°C/s and a dwell time of 30-60 seconds above 220°C.
-
Yes, WSL2512R0470FEA is designed to withstand vibrations up to 10 G, making it suitable for applications with moderate vibration levels. However, it's recommended to perform additional testing and validation for extreme vibration environments.
