Resistors / Fixed Resistors / WSL2512R0270FEA
Datasheets
WSL2512R0270FEA by:

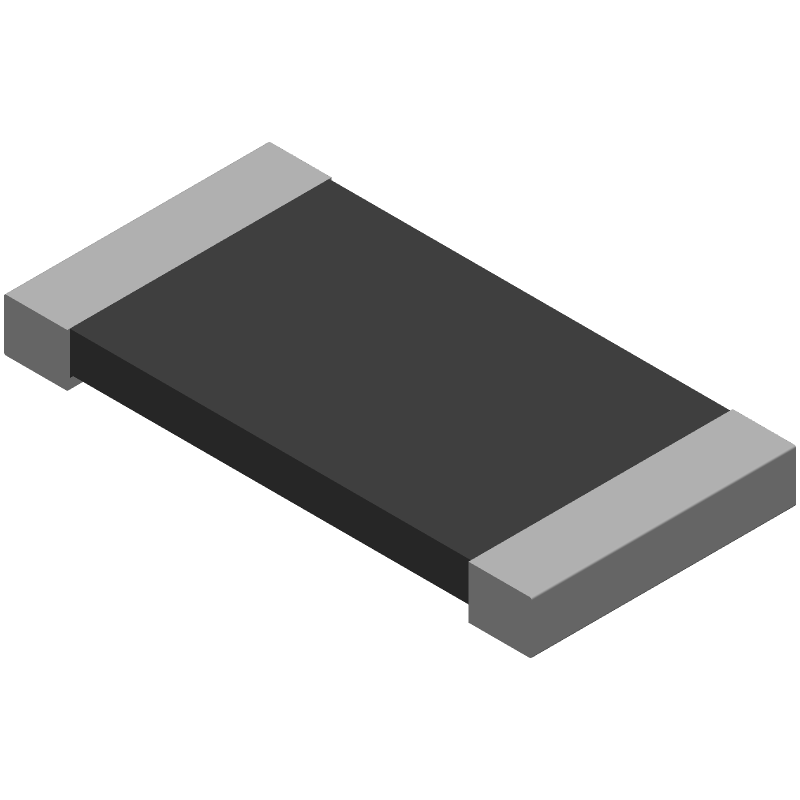

Fixed Resistor, Metal Strip, 1W, 0.027ohm, 0.1643V, 1% +/-Tol, 75ppm/Cel, Surface Mount, 2512, CHIP

Part Details for WSL2512R0270FEA by Vishay Intertechnologies

Results Overview of WSL2512R0270FEA by Vishay Intertechnologies

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

WSL2512R0270FEA Information

WSL2512R0270FEA by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.

Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.

Price & Stock for WSL2512R0270FEA

Part # Distributor Description Stock Price Buy
DISTI # 14AJ2839
Newark Res, 0R027, 1W, 2512, Metal Strip Rohs Compliant: Yes |Vishay WSL2512R0270FEA RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape 375
  • 1 $0.8830
  • 10 $0.6200
  • 25 $0.5640
  • 50 $0.5090
  • 100 $0.4530
  • 250 $0.4220
  • 500 $0.3900
  • 1,000 $0.3520
$0.3520 / $0.8830 Buy Now
DISTI # 31K8638
Newark Wsl-2512 .027 1% Ea E3 Resistors Rohs Compliant: Yes |Vishay WSL2512R0270FEA RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Reel 0
  • 2,000 $0.4520
  • 4,000 $0.4060
  • 6,000 $0.3910
  • 10,000 $0.3830
$0.3830 / $0.4520 Buy Now
DISTI # WSL2512R0270FEA
Avnet Americas WSL-2512 .027 1% EA e3 - Tape and Reel (Alt: WSL2512R0270FEA) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 13 Weeks, 0 Days Container: Reel 0
  • 2,000 $0.2624
  • 4,000 $0.2575
  • 8,000 $0.2543
  • 12,000 $0.2497
  • 16,000 $0.2424
$0.2424 / $0.2624 Buy Now
DISTI # 71-WSL2512R0270FEA
Mouser Electronics Current Sense Resistors - SMD 1watt .027ohms 1% RoHS: Compliant 57
  • 1 $1.7700
  • 10 $1.0200
  • 25 $0.8390
  • 50 $0.7540
  • 100 $0.6530
  • 250 $0.5510
  • 500 $0.4640
  • 1,000 $0.4480
  • 2,000 $0.4180
$0.4180 / $1.7700 Buy Now
Bristol Electronics   2885
RFQ
Bristol Electronics   100
RFQ
Quest Components   2308
  • 1 $1.2965
  • 310 $0.5186
  • 1,544 $0.4538
$0.4538 / $1.2965 Buy Now
DISTI # WSL2512R0270FEA
TTI Current Sense Resistors - SMD 1watt .027ohms 1% RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel Americas - 0
  • 2,000 $0.2620
  • 4,000 $0.2570
  • 6,000 $0.2520
  • 10,000 $0.2470
  • 16,000 $0.2420
$0.2420 / $0.2620 Buy Now
DISTI # WSL2512R0270FEA
TME Resistor: metal strip, current shunt,sensing, SMD, 2512, 27mΩ, 2W Min Qty: 2000 0
  • 2,000 $0.2990
$0.2990 RFQ
ComSIT USA AVAILABLE EU 893
RFQ
DISTI # WSL2512R0270FEA
Avnet Abacus WSL2512 027 1 EA e3 (Alt: WSL2512R0270FEA) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 16 Weeks, 0 Days Abacus - 0
Buy Now
DISTI # WSL2512R0270FEA
Avnet Asia WSL-2512 .027 1% EA e3 (Alt: WSL2512R0270FEA) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 15 Weeks, 0 Days 0
  • 2,000 $0.4049
  • 4,000 $0.3993
  • 6,000 $0.3938
  • 10,000 $0.3885
  • 20,000 $0.3783
  • 50,000 $0.3686
  • 100,000 $0.3594
$0.3594 / $0.4049 Buy Now

Part Details for WSL2512R0270FEA

WSL2512R0270FEA Part Data Attributes

Parametric Data
WSL2512R0270FEA Vishay Intertechnologies
Buy Now Datasheet
Compare Parts:
WSL2512R0270FEA Vishay Intertechnologies Fixed Resistor, Metal Strip, 1W, 0.027ohm, 0.1643V, 1% +/-Tol, 75ppm/Cel, Surface Mount, 2512, CHIP
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer VISHAY INTERTECHNOLOGY INC
Package Description CHIP
Reach Compliance Code compliant
Factory Lead Time 13 Weeks
Samacsys Manufacturer Vishay
Additional Feature ANTI-SULFUR
Construction Rectangular
JESD-609 Code e3
Mounting Feature SURFACE MOUNT
Number of Terminals 2
Operating Temperature-Max 170 °C
Operating Temperature-Min -65 °C
Package Height 0.635 mm
Package Length 6.35 mm
Package Shape RECTANGULAR PACKAGE
Package Style SMT
Package Width 3.18 mm
Packing Method TR, EMBOSSED PLASTIC, 7 INCH
Rated Power Dissipation (P) 1 W
Rated Temperature 70 °C
Reference Standard AEC-Q200
Resistance 0.027 Ω
Resistor Type FIXED RESISTOR
Size Code 2512
Surface Mount YES
Technology METAL STRIP
Temperature Coefficient 75 ppm/°C
Terminal Finish Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal Shape WRAPAROUND
Tolerance 1%
Working Voltage 0.1643 V

WSL2512R0270FEA Related Parts

WSL2512R0270FEA Frequently Asked Questions (FAQ)

  • The recommended land pattern for WSL2512R0270FEA is a rectangular pad with a size of 1.5 mm x 3.5 mm, with a non-solder mask defined (NSMD) pad shape.

  • To handle thermal considerations, ensure a good thermal connection to a heat sink or a thermal pad, and consider using thermal interface materials (TIMs) to reduce thermal resistance. Also, follow the recommended PCB layout and thermal design guidelines.

  • The maximum operating temperature range for WSL2512R0270FEA is -55°C to +150°C, with a storage temperature range of -55°C to +180°C.

  • To ensure reliability, follow the recommended assembly and soldering guidelines, and perform thorough testing and inspection. Also, consider using a conformal coating to protect the component from environmental factors.

  • Handle WSL2512R0270FEA with ESD-protective equipment and follow standard ESD handling precautions, such as using wrist straps, ESD mats, and ionizers. Also, ensure that the component is stored in an ESD-protective package.
