WSL2512R0260FEA18 Information
WSL2512R0260FEA18 by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WSL2512R0260FEA18
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
WSL2512R0260FEA18
|
Avnet Americas | WSL-2512-18 .026 1% EA e3 - Tape and Reel (Alt: WSL2512R0260FEA18) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.3941 / $0.4268 | Buy Now |
|
DISTI #
71-WSL2512R0260FEA18
|
Mouser Electronics | Current Sense Resistors - SMD 2watts .026ohm 1% RoHS: Compliant | 961 |
|
$0.5340 / $2.0400 | Buy Now |
|
DISTI #
WSL2512R0260FEA18
|
TTI | Current Sense Resistors - SMD 2watts .026ohm 1% RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel | Americas - 0 |
|
$0.1870 / $0.1990 | Buy Now |
Part Details for WSL2512R0260FEA18

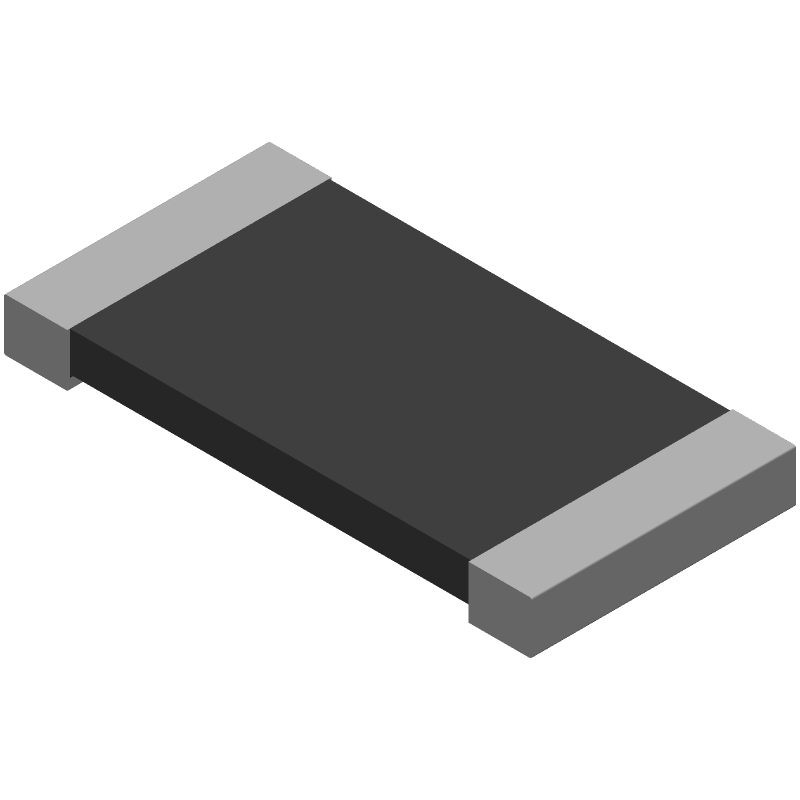

WSL2512R0260FEA18 CAD Models
WSL2512R0260FEA18 Part Data Attributes
|
|
WSL2512R0260FEA18
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WSL2512R0260FEA18
Vishay Intertechnologies
Fixed Resistor, Metal Strip, 2W, 0.026ohm, 0.228V, 1% +/-Tol, 75ppm/Cel, Surface Mount, 2512, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ANTI-SULFUR | |
| Construction | Rectangular | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 170 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 0.635 mm | |
| Package Length | 6.35 mm | |
| Package Style | SMT | |
| Package Width | 3.18 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 7 INCH | |
| Rated Power Dissipation (P) | 2 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.026 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2512 | |
| Surface Mount | YES | |
| Technology | METAL STRIP | |
| Temperature Coefficient | 75 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 0.228 V |
