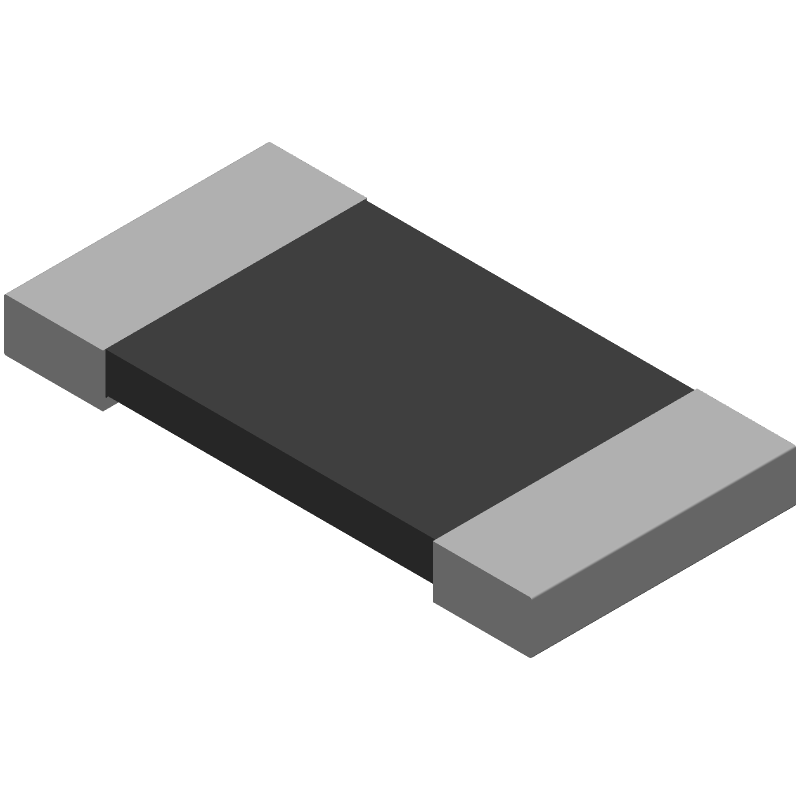

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for WSL25126L800FEA18 by Vishay Intertechnologies
Results Overview of WSL25126L800FEA18 by Vishay Intertechnologies
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
WSL25126L800FEA18 Information
WSL25126L800FEA18 by Vishay Intertechnologies is a Fixed Resistor.
Fixed Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for WSL25126L800FEA18
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78R1229
|
Newark | Wsl-2512-18 .0068 1% Ea E3 |Vishay WSL25126L800FEA18 RoHS: Not Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.7570 / $0.8450 | Buy Now |
|
DISTI #
WSL25126L800FEA18
|
Avnet Americas | WSL-2512-18 .0068 1% EA e3 - Tape and Reel (Alt: WSL25126L800FEA18) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 13 Weeks, 0 Days Container: Reel | 0 |
|
$0.5812 / $0.6293 | Buy Now |
|
DISTI #
71-WSL25126L800FEA18
|
Mouser Electronics | Current Sense Resistors - SMD 2watt .0068ohms 1% High Power RoHS: Compliant | 6902 |
|
$0.7230 / $2.4700 | Buy Now |
|
|
Future Electronics | WSL Series 2512 1 W 0.0068 Ohm ±1% ±110 ppm/°C SMT Power Metal Strip® Resistor RoHS: Compliant pbFree: Yes Min Qty: 2000 Package Multiple: 2000 Lead time: 13 Weeks Container: Reel | 2000Reel |
|
$0.1720 / $0.1800 | Buy Now |
|
DISTI #
WSL25126L800FEA18
|
TTI | Current Sense Resistors - SMD 2watt .0068ohms 1% High Power RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel | Americas - 0 |
|
$0.2750 | Buy Now |
|
|
Future Electronics | WSL Series 2512 1 W 0.0068 Ohm �1% �110 ppm/�C SMT Power Metal Strip� Resistor Min Qty: 2000 Package Multiple: 2000 |
2000 null |
|
$0.2750 | Buy Now |
|
DISTI #
WSL25126L800FEA18
|
Avnet Abacus | WSL251218 0068 1 EA e3 (Alt: WSL25126L800FEA18) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 16 Weeks, 0 Days | Abacus - 0 |
|
Buy Now |
Part Details for WSL25126L800FEA18
WSL25126L800FEA18 CAD Models
WSL25126L800FEA18 Part Data Attributes
|
|
WSL25126L800FEA18
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
WSL25126L800FEA18
Vishay Intertechnologies
Fixed Resistor, Metal Strip, 2W, 0.0068ohm, 0.1166V, 1% +/-Tol, 110ppm/Cel, Surface Mount, 2512, CHIP
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 13 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ANTI-SULFUR | |
| Construction | Rectangular | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 170 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 0.635 mm | |
| Package Length | 6.35 mm | |
| Package Style | SMT | |
| Package Width | 3.18 mm | |
| Packing Method | TR, EMBOSSED PLASTIC, 7 INCH | |
| Rated Power Dissipation (P) | 2 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.0068 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2512 | |
| Surface Mount | YES | |
| Technology | METAL STRIP | |
| Temperature Coefficient | 110 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - with Nickel (Ni) barrier | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 0.1166 V |
WSL25126L800FEA18 Frequently Asked Questions (FAQ)
-
The recommended soldering temperature for WSL25126L800FEA18 is 260°C (500°F) for 10 seconds, with a peak temperature of 240°C (464°F) for 5 seconds.
-
Yes, WSL25126L800FEA18 is resistant to sulfurization due to its passivation layer, which protects the resistor from sulfur-containing atmospheres.
-
Yes, WSL25126L800FEA18 is suitable for high-frequency applications up to 50 GHz due to its low inductance and high-frequency stability.
-
WSL25126L800FEA18 is designed to operate in high-temperature environments up to 150°C (302°F) with minimal derating, making it suitable for automotive, industrial, and aerospace applications.
-
Yes, WSL25126L800FEA18 is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
